Home/ Compact/ LIO 40
EXEAT· EXLIO40· COMPACT

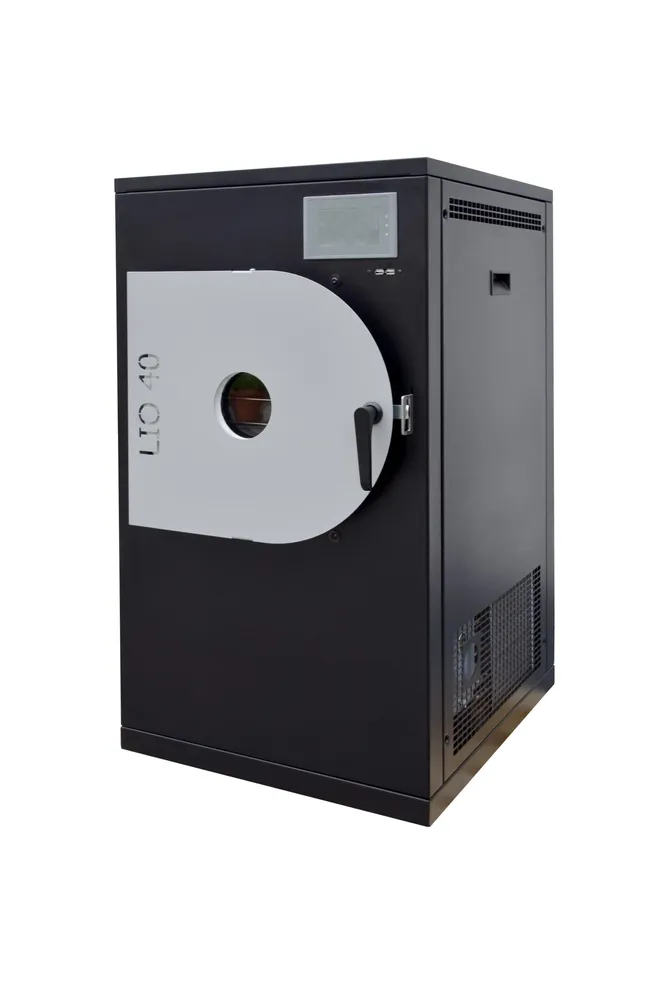

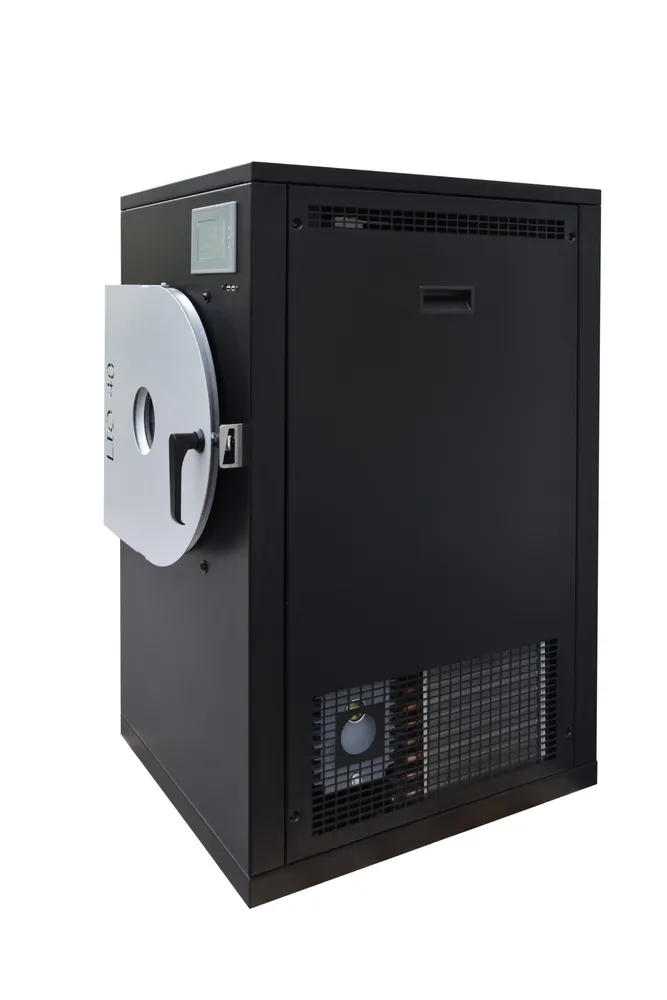

LIO 40

Up to 3.5 kg per batch

Up to 3.5 kg per day, touchscreen control, European-built, CE certified. Compact professional freeze dryer for labs and small production.

Indicative list price
€4.950
EX-VAT · CONFIGURATION-DEPENDENT
Configure quote Talk to an engineer →
Available configurations
LIO 40 (4 trays)LIO 40 L (6 trays)LIO 40 L with oil-free pump (6 trays)LIO 40 Pro (6 trays)LIO 40 Pro with oil-free pump (6 trays)LIO 40 with oil-free pump (4 trays)
LIO 40
Capacity
Up to 3.5 kg
Shelf area
0.4 m²
Trays
4
Shelf temp
-35 to +60 (recipe) °C
Condenser
-43 °C
Spec sheet

Engineering data.

Batch capacity (fresh load)
3.5 kg/batch
Ice condenser capacity
7 kg (total ice)
Total shelf area
0.4 m²
Number of shelves
4 count
Number of trays
4 count
Tray size
20 × 48 cm
Shelf temperature range
-35 to +60 (recipe) °C
Min. condenser temperature
-43 °C
Vacuum pump type
Oil-sealed (oil-free scroll option)
Refrigeration type
Air-cooled
Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options
Black
Defrosting
Manual (heated)
Control system
PLC touchscreen
Data logging & recipes
USB CSV export + recipes
Remote monitoring
No
External dimensions (W × D × H)
550 × 690 × 940 mm
Net weight
118 kg
Power supply
230 V / 1~ / 50 Hz V / phase / Hz
Connected load
1.25 kW
Warranty
1 year + 8-year spares
Energy consumption (avg)
0.97 kWh/h
