Home/ Compact/ LIO 70
EXEAT· EXLIO70· COMPACT

LIO 70

Up to 6 kg per batch

Up to 6 kg per day, touchscreen control, compact design, European-built, CE certified. Professional freeze dryer for labs and small production.

Indicative list price
€6.560
EX-VAT · CONFIGURATION-DEPENDENT
Configure quote Talk to an engineer →
Available configurations
LIO 70 (6 trays)LIO 70 L (9 trays)LIO 70 L with oil-free pump (9 trays)LIO 70 Pro (9 trays)LIO 70 Pro with oil-free pump (9 trays)LIO 70 with oil-free pump (6 trays)
LIO 70
Capacity
Up to 6 kg
Shelf area
0.8 m²
Trays
6
Shelf temp
-35 to +60 (recipe) °C
Condenser
-43 °C
Spec sheet

Engineering data.

Batch capacity (fresh load)
6 kg/batch
Ice condenser capacity
12 kg (total ice)
Total shelf area
0.8 m²
Number of shelves
6 count
Number of trays
6 count
Tray size
28 × 48 cm
Shelf temperature range
-35 to +60 (recipe) °C
Min. condenser temperature
-43 °C
Vacuum pump type
Oil-sealed (oil-free scroll option)
Refrigeration type
Air-cooled

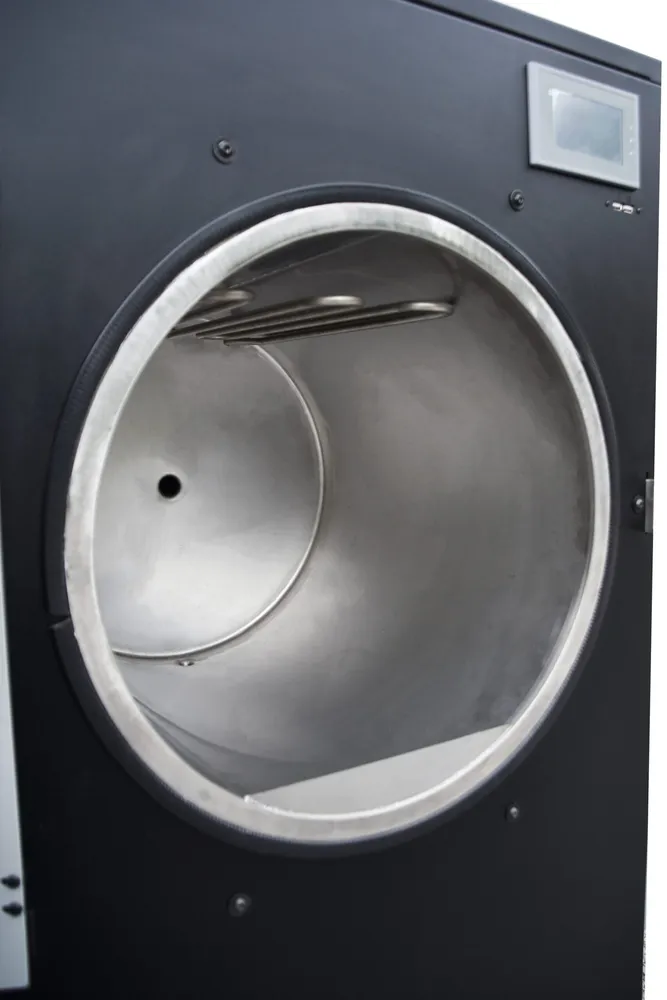

Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options
Black
Defrosting
Manual (heated)
Control system
PLC touchscreen
Data logging & recipes
USB CSV export + recipes
Remote monitoring
No
External dimensions (W × D × H)
700 × 690 × 1085 mm
Net weight
163 kg
Power supply
230 V / 1~ / 50 Hz V / phase / Hz
Connected load
1.45 kW
Warranty
1 year + 8-year spares
Energy consumption (avg)
1.15 kWh/h
Next step

Get a tailored quote.

Tell us your product and target throughput. An engineer replies within 24 h — with pricing, lead time, and a sizing recommendation.

Configure quote Book a 30-min call
