LEOSMAK· LEO004· COMPACT

LEO-004

Up to 4 kg per batch

Up to 4 kg per batch capacity. The LEO-004 Compact Freeze Dryer is a perfect choice for households, restaurants, and businesses prototyping recipes for larger machines, offering professional-grade performance in a compact design.

Indicative list price
€6.340
EX-VAT · CONFIGURATION-DEPENDENT
Configure quote Talk to an engineer →
Available configurations

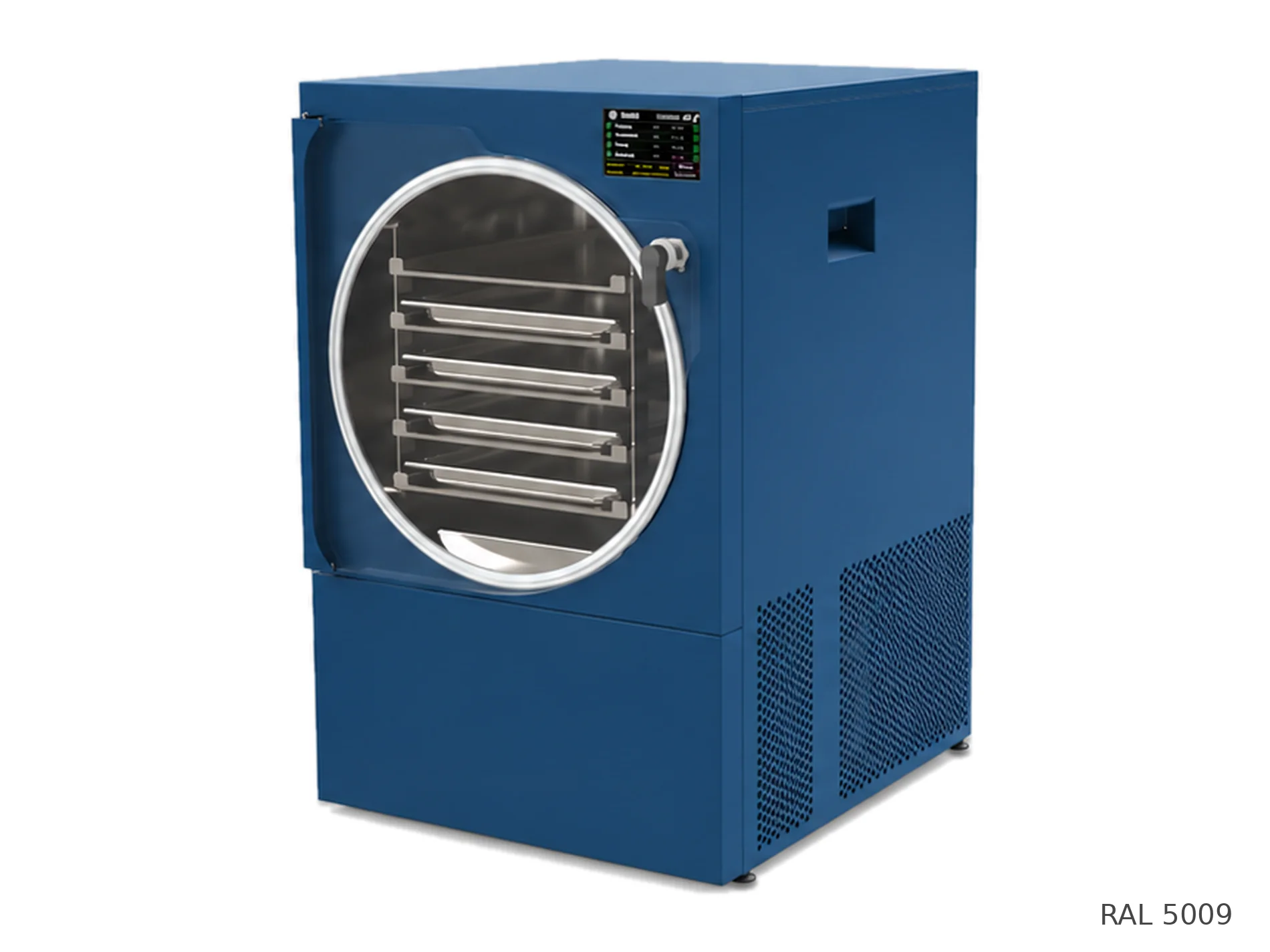

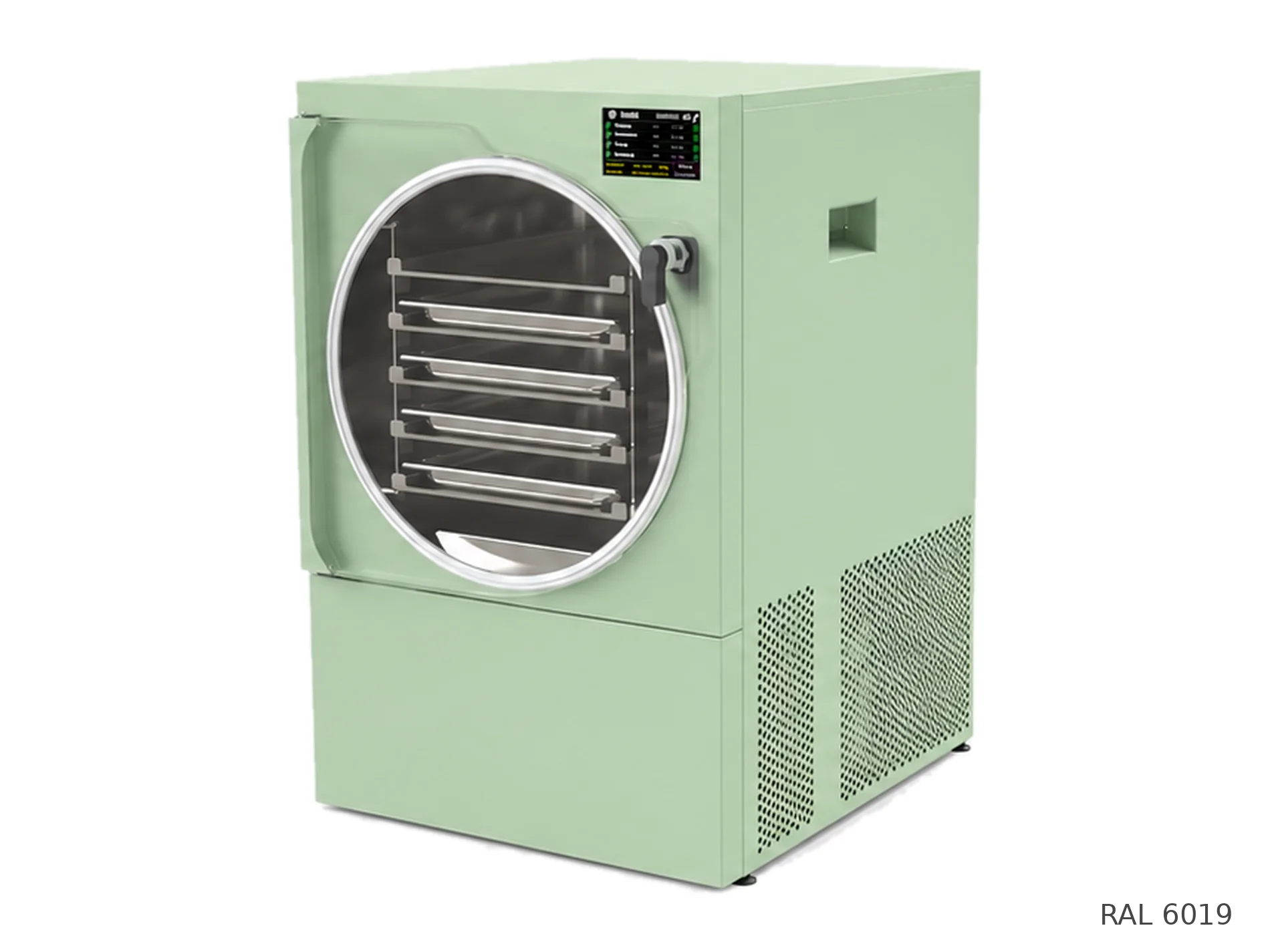

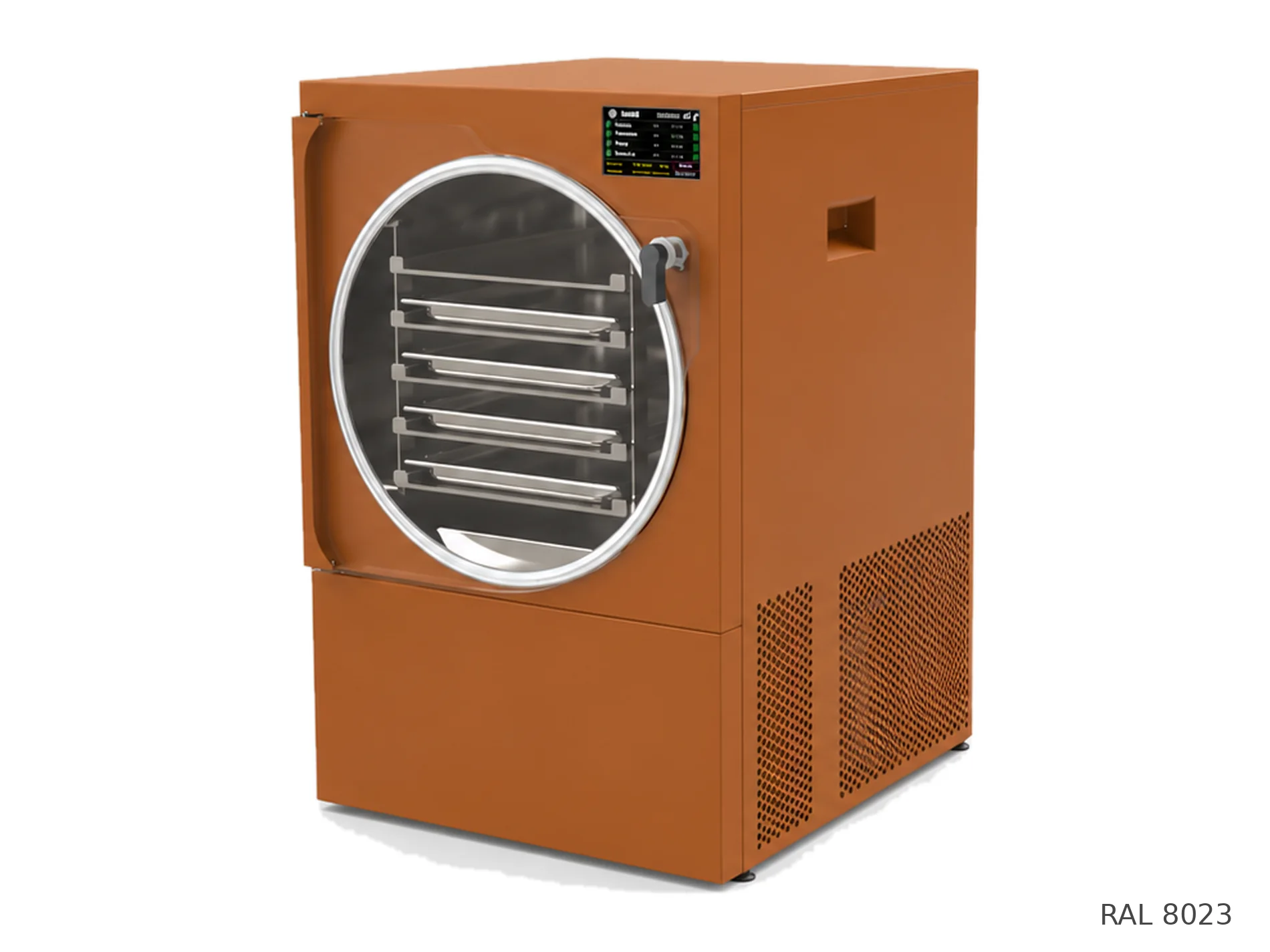

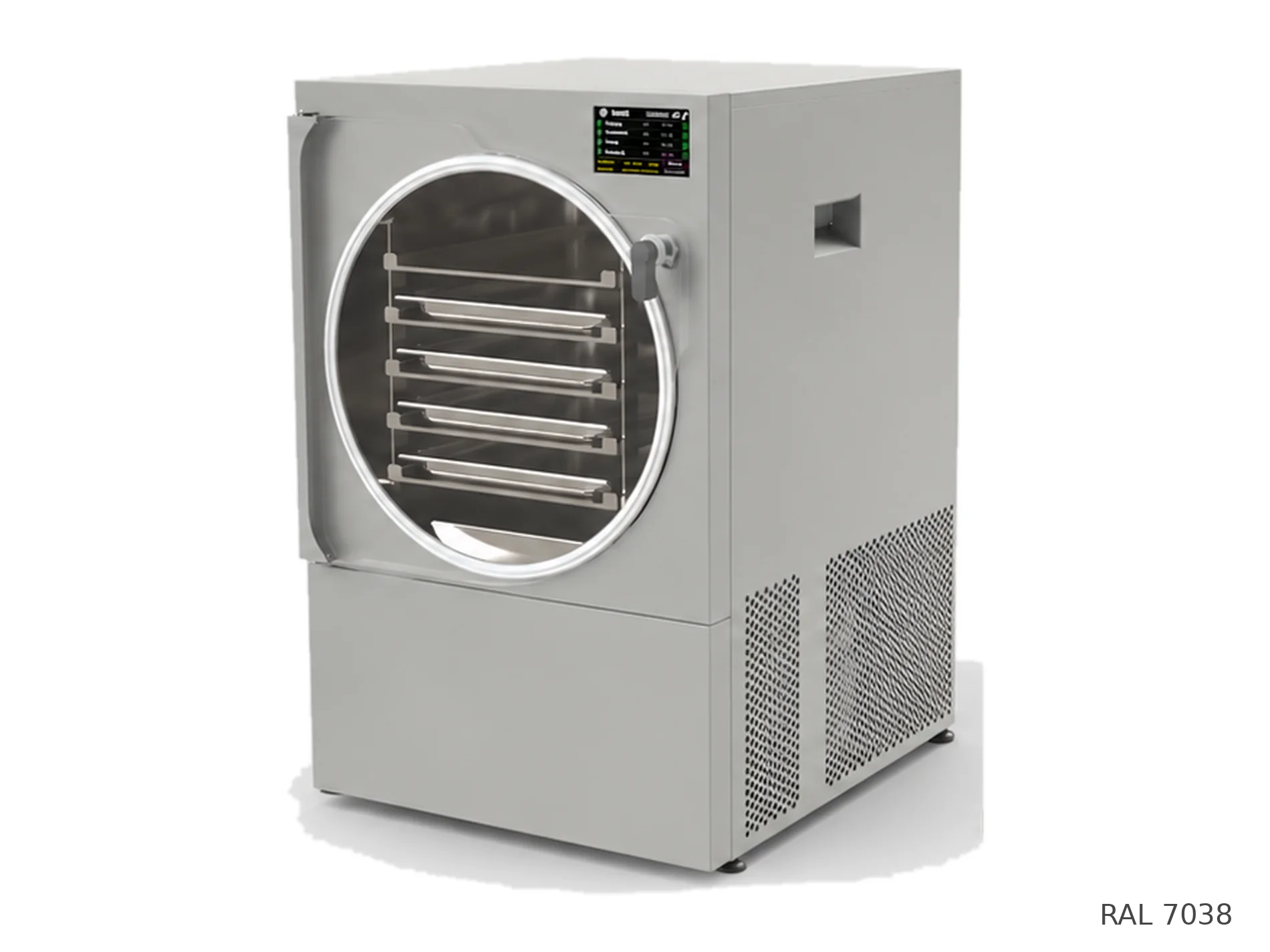

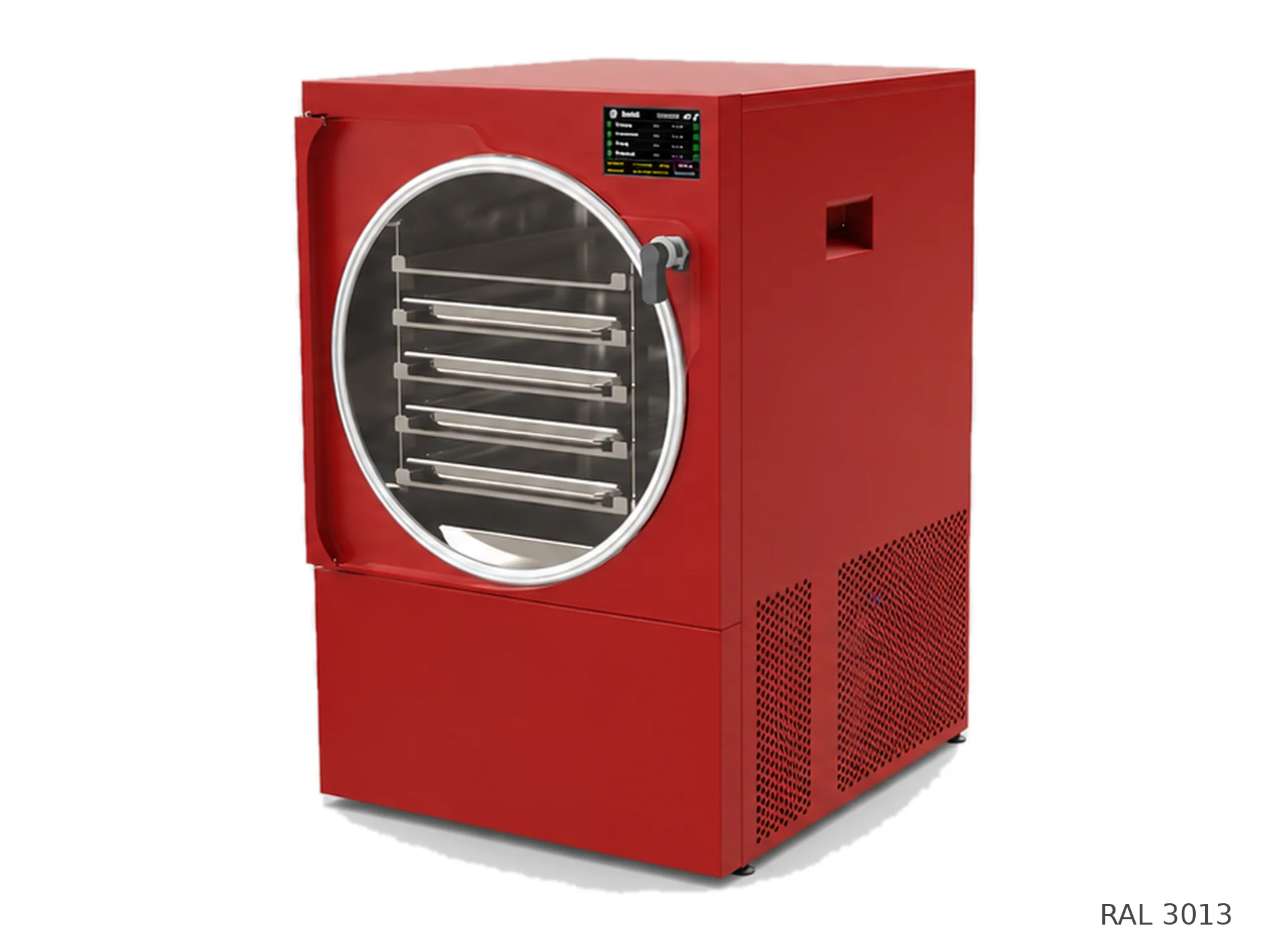

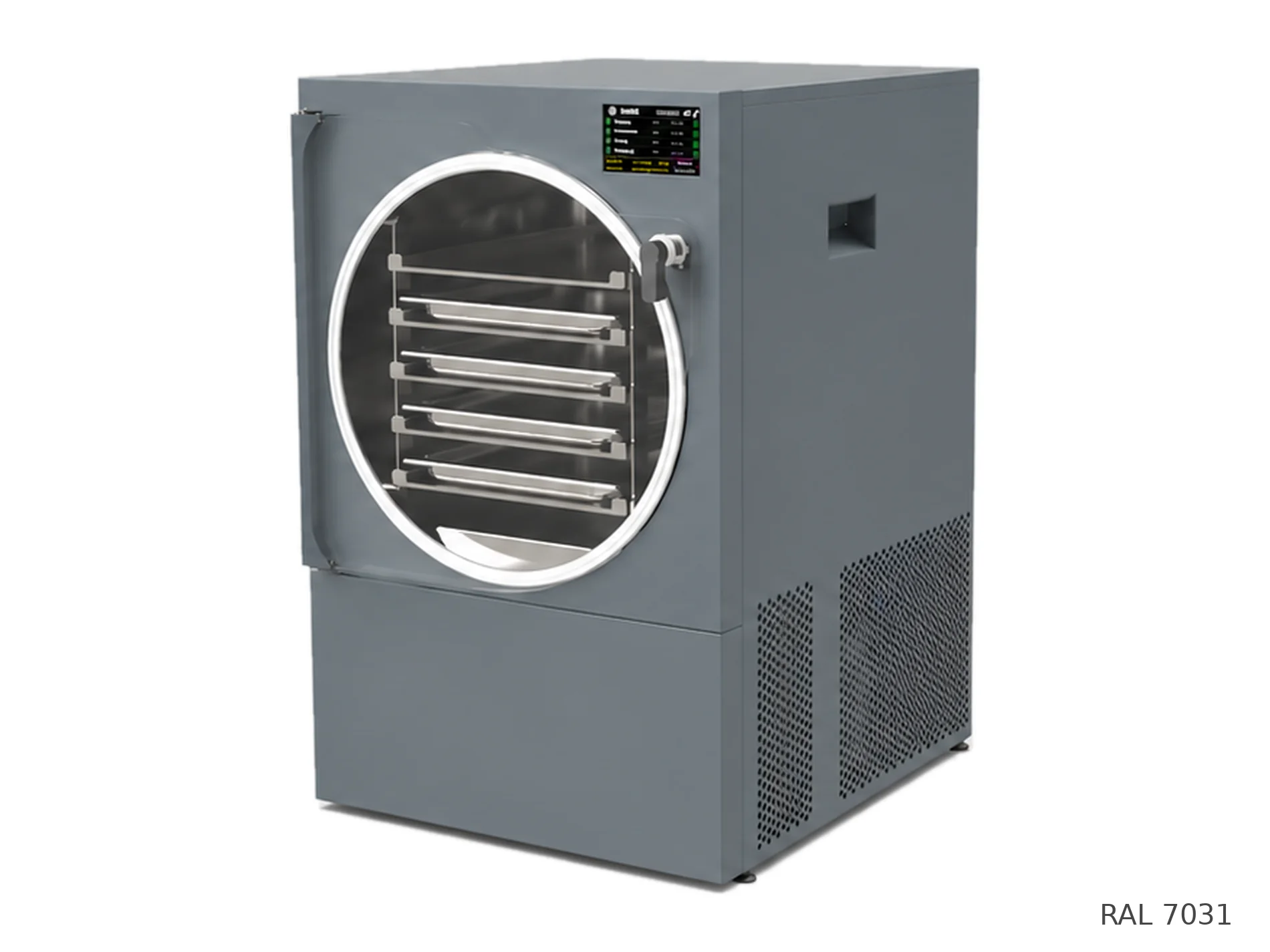

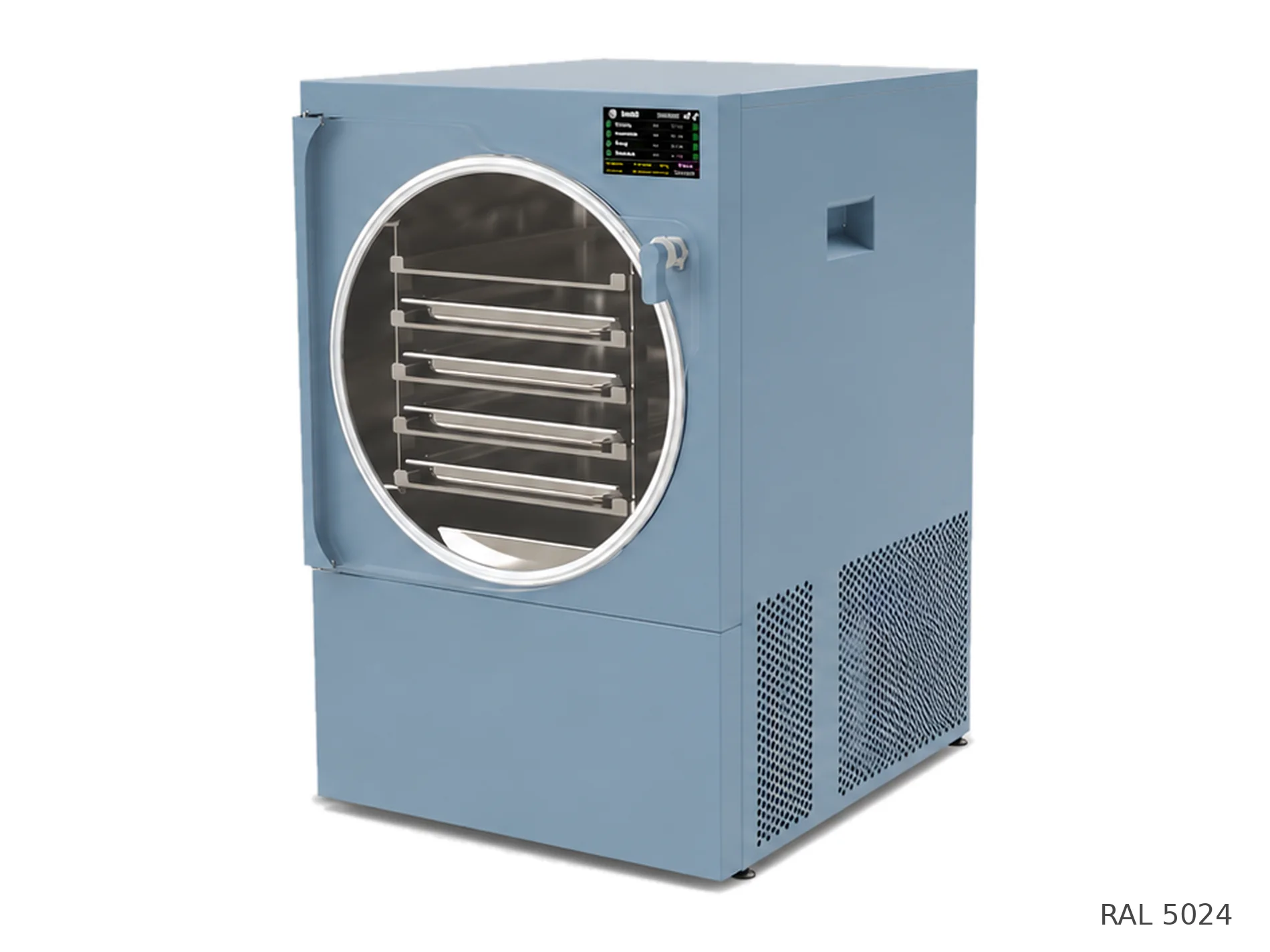

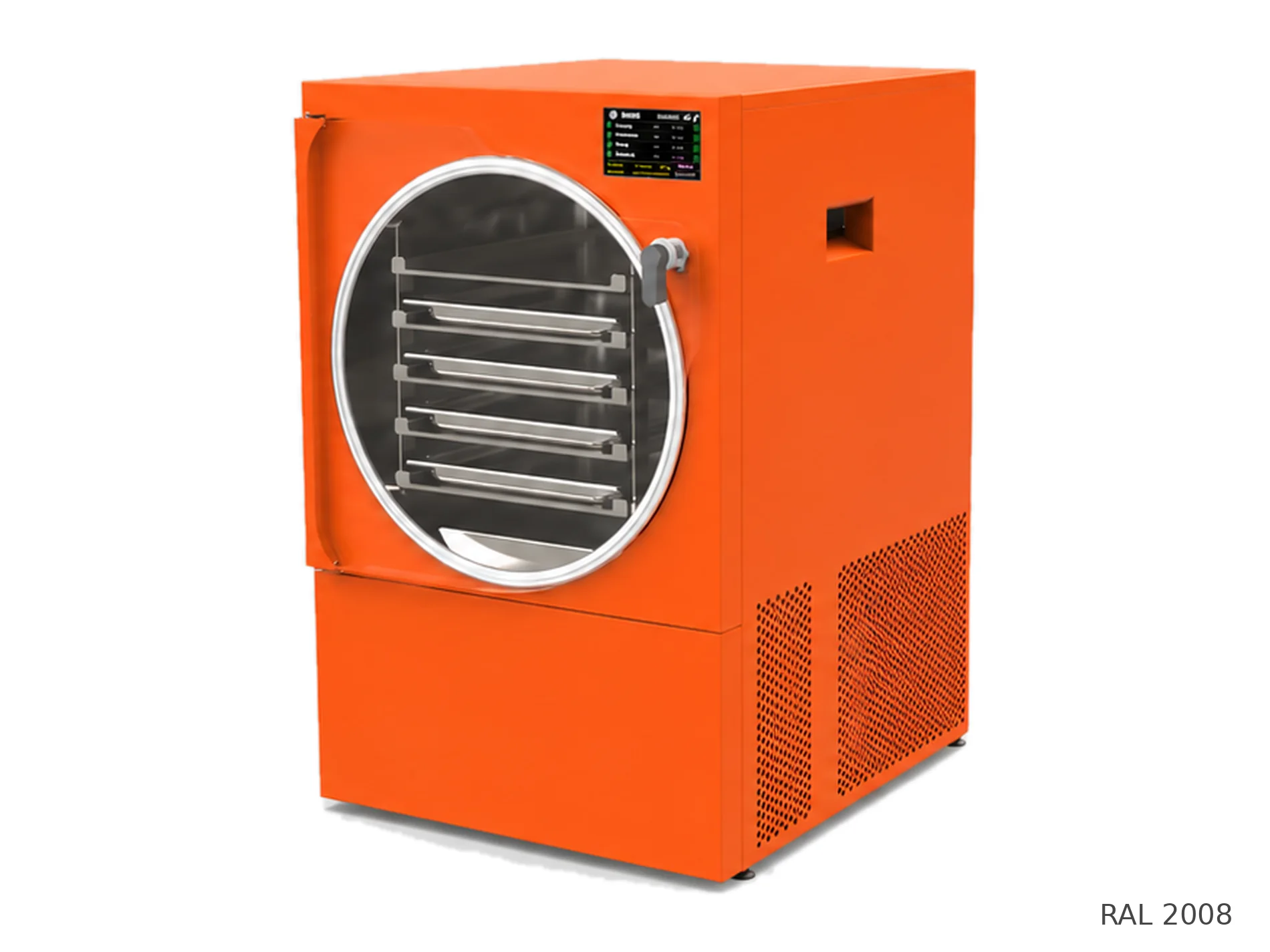

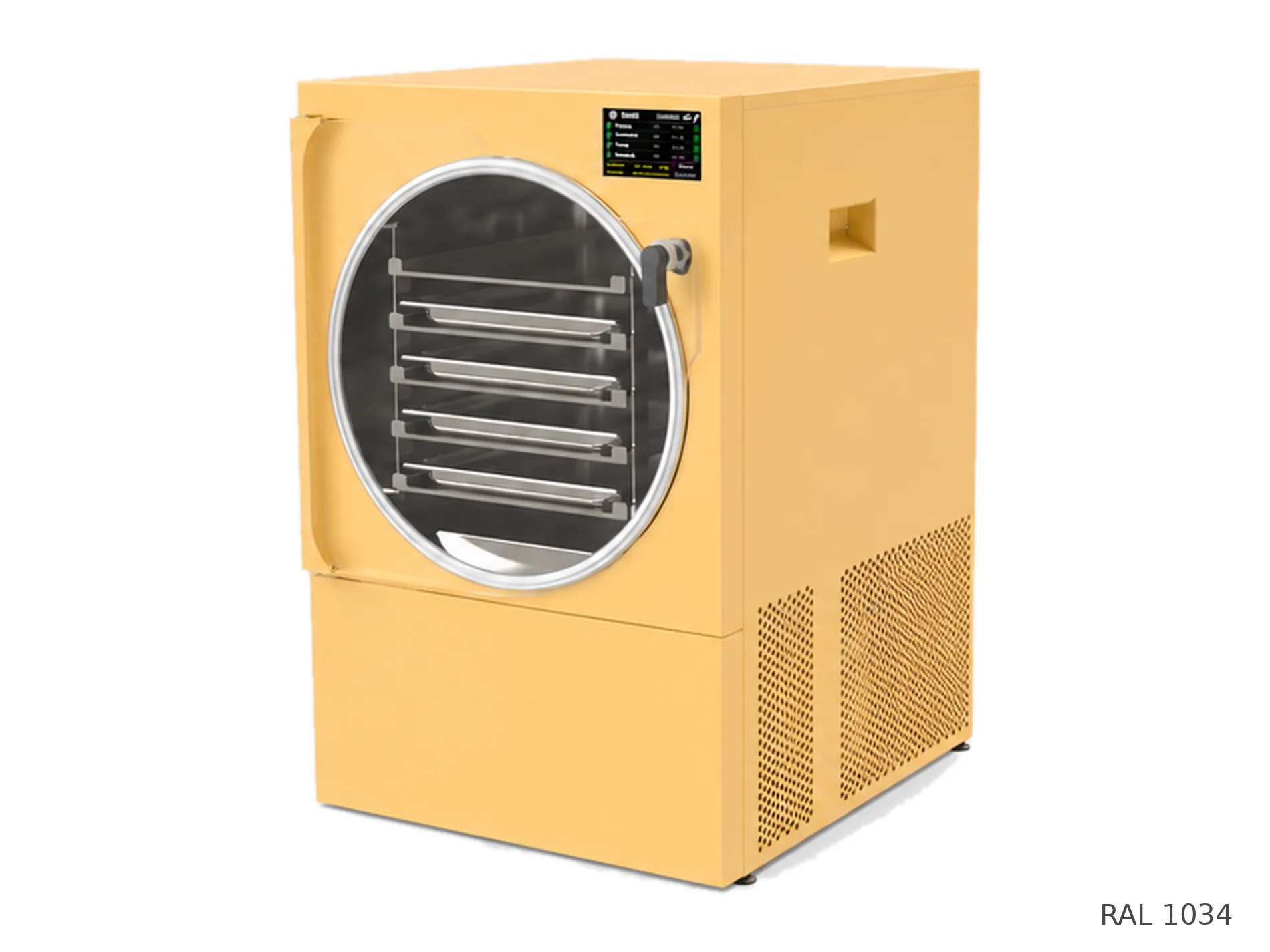

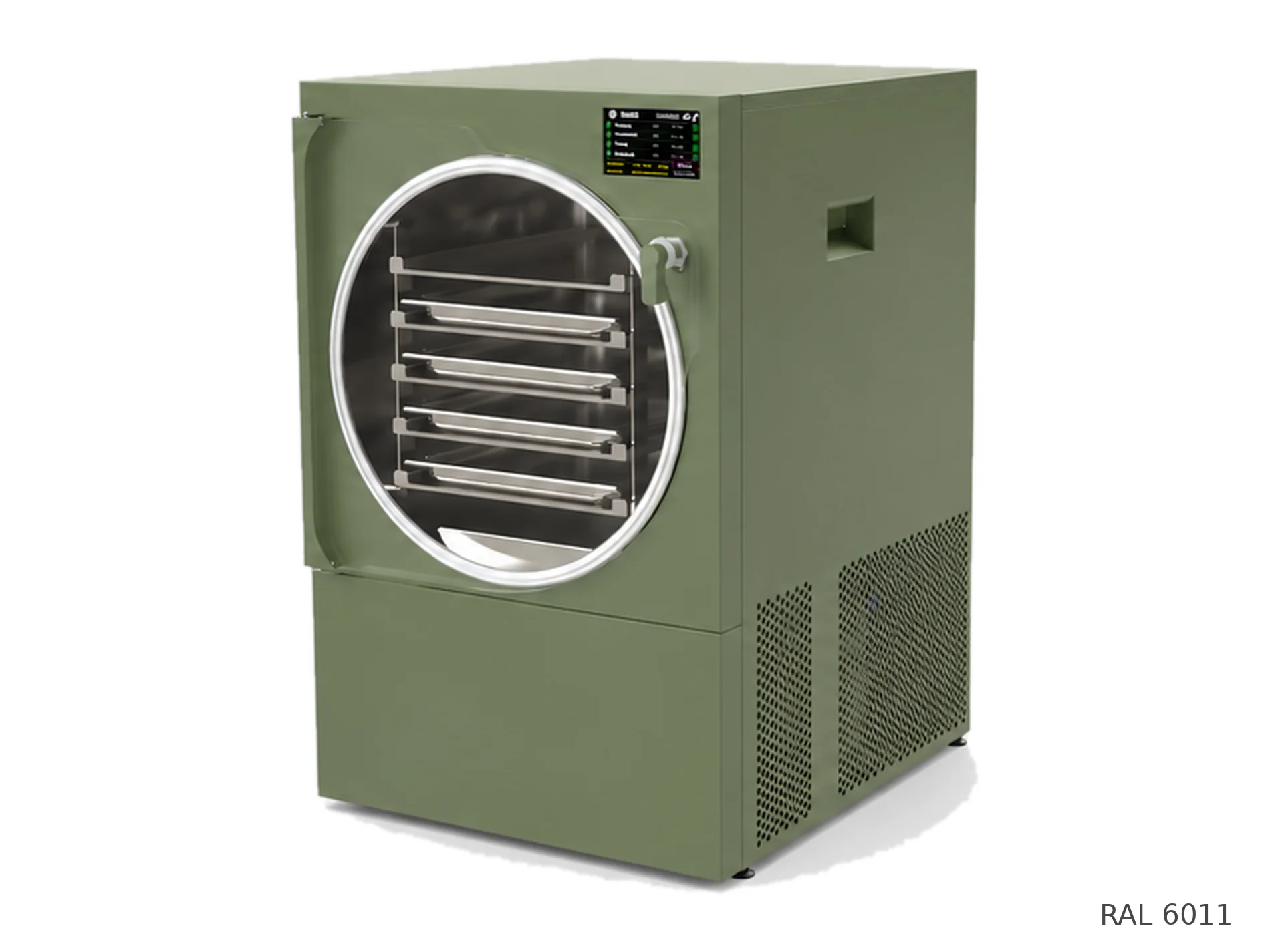

Jet BlackTraffic WhiteStainless SteelOther RAL Color
LEO-004
Capacity
Up to 4 kg
Shelf area
0.34 m²
Trays
4
Shelf temp
-40 to +70 °C
Condenser
-40 °C
Spec sheet

Engineering data.

Batch capacity (fresh load)
4 kg/batch
Ice condenser capacity
6 kg (total ice)
Total shelf area
0.34 m²
Number of shelves
4 count
Number of trays
4 count
Tray size
GN 1/2, 2–4 cm
Shelf temperature range
-40 to +70 °C
Min. condenser temperature
-40 °C
Vacuum pump type
Oil-sealed (oil-free option)
Refrigeration type
Air-cooled
Refrigerant
R-452B
Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options

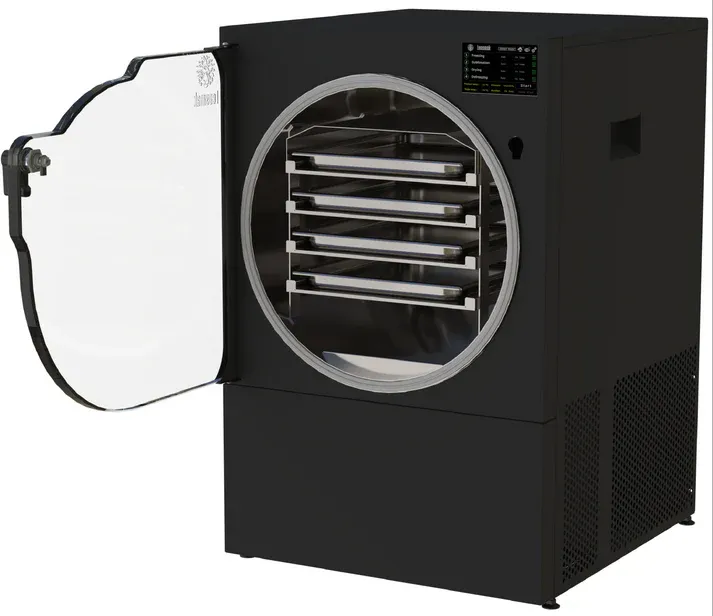

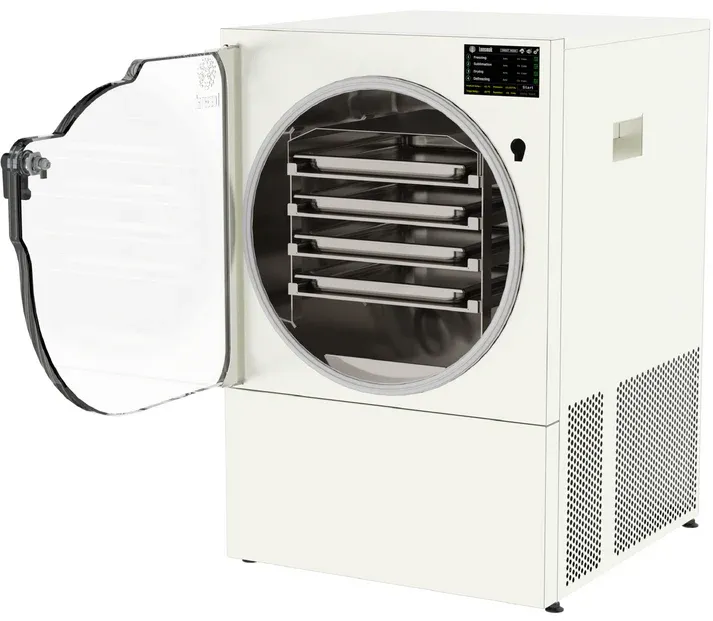

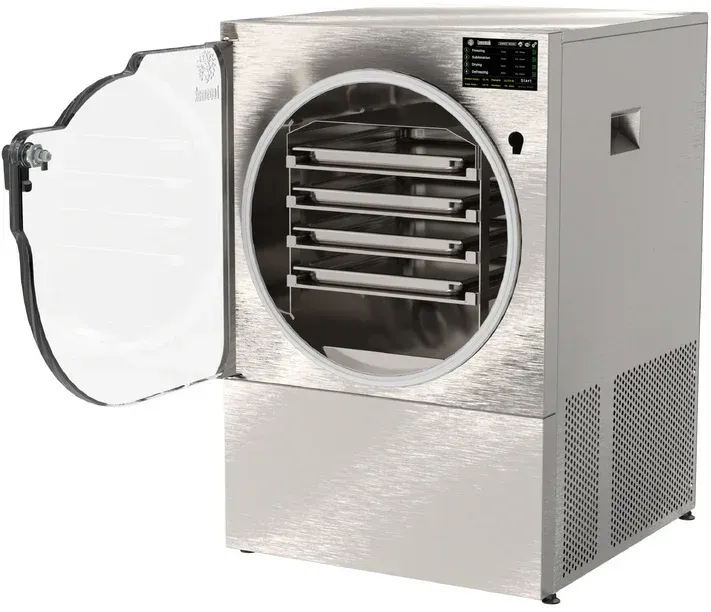

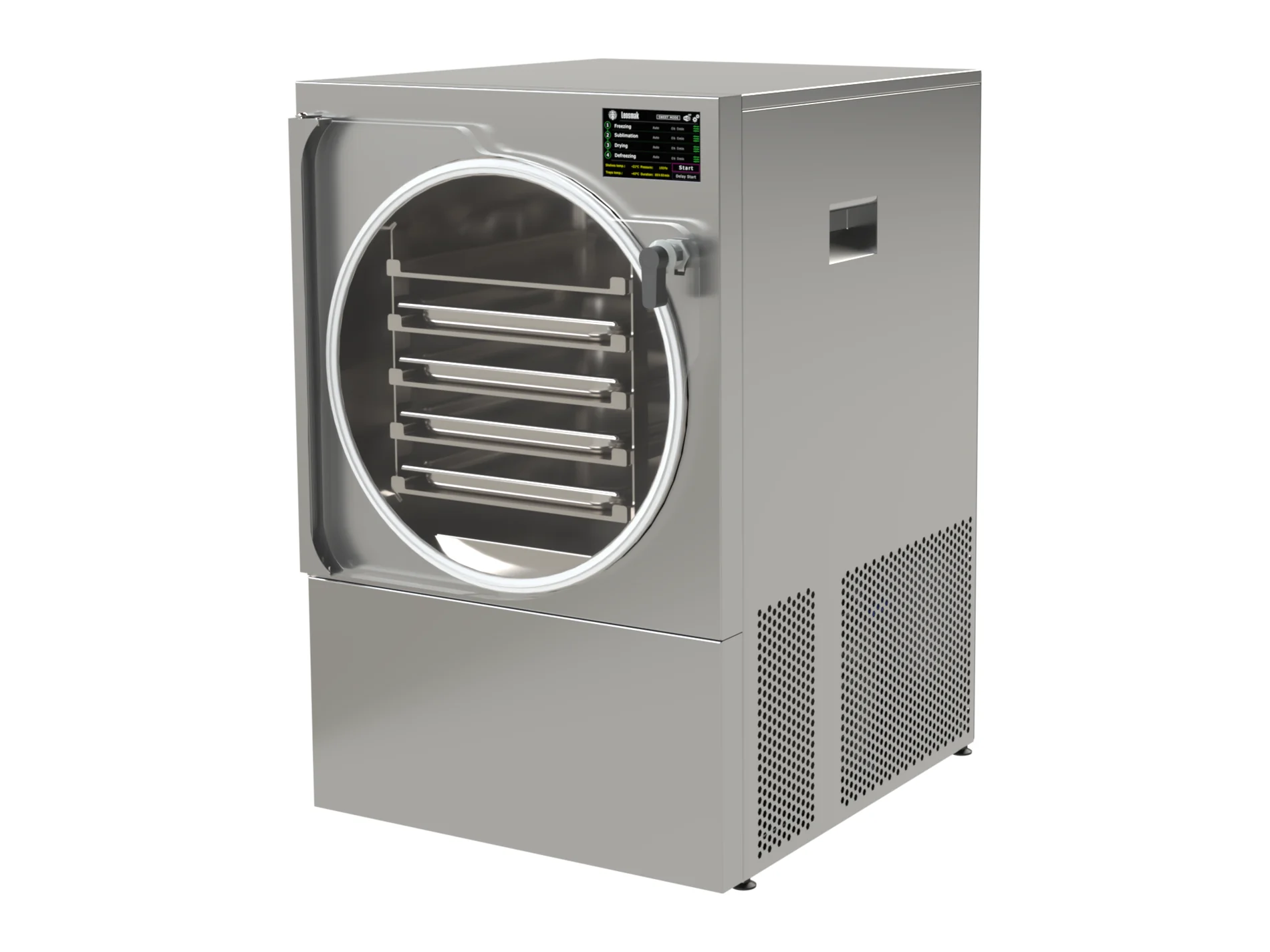

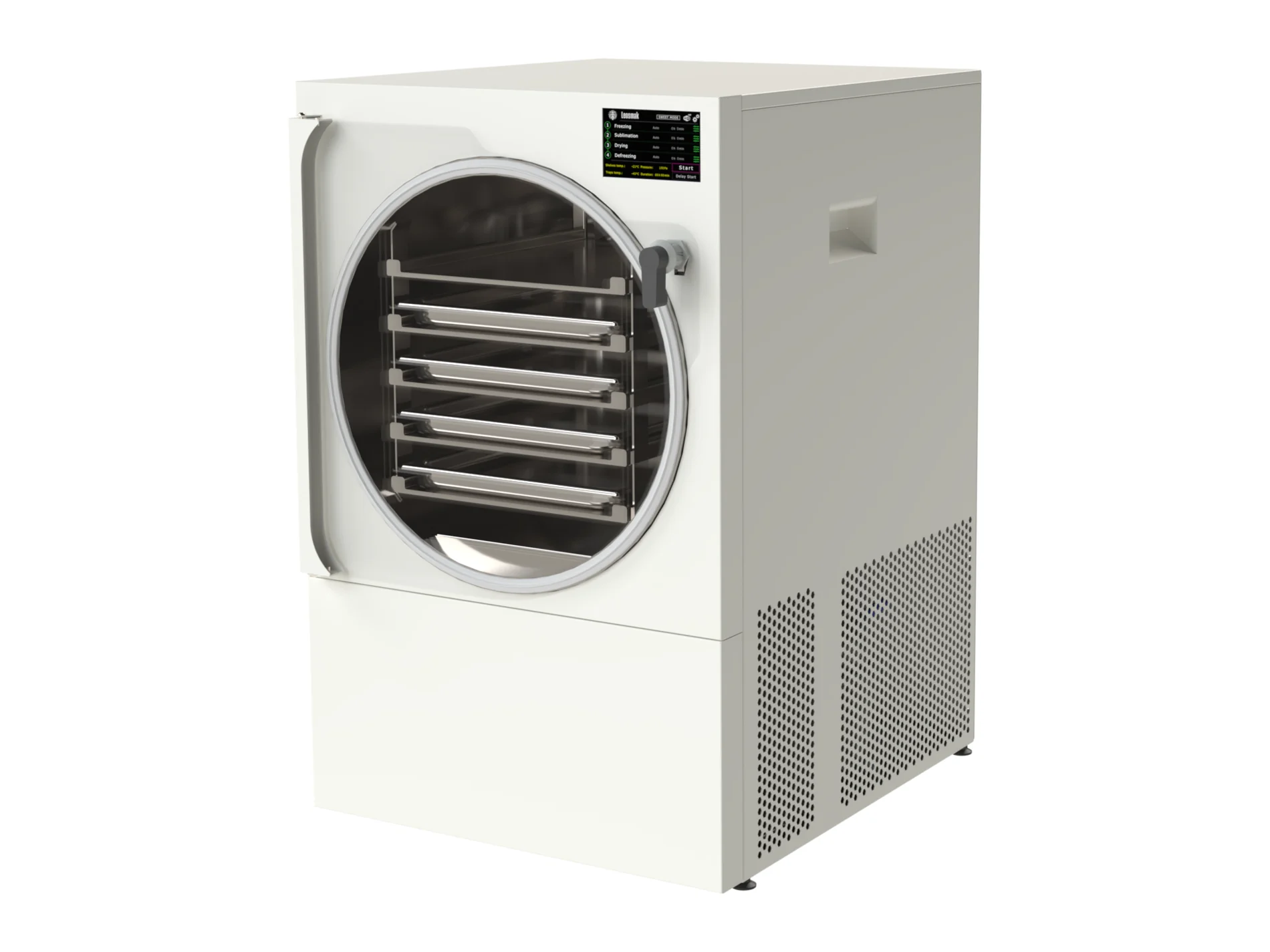

Jet Black, Traffic White, Stainless Steel, Other RAL
Defrosting
Automatic
Control system
LCD touchscreen + Wi-Fi
Data logging & recipes
Wi-Fi app monitoring
Remote monitoring
Yes

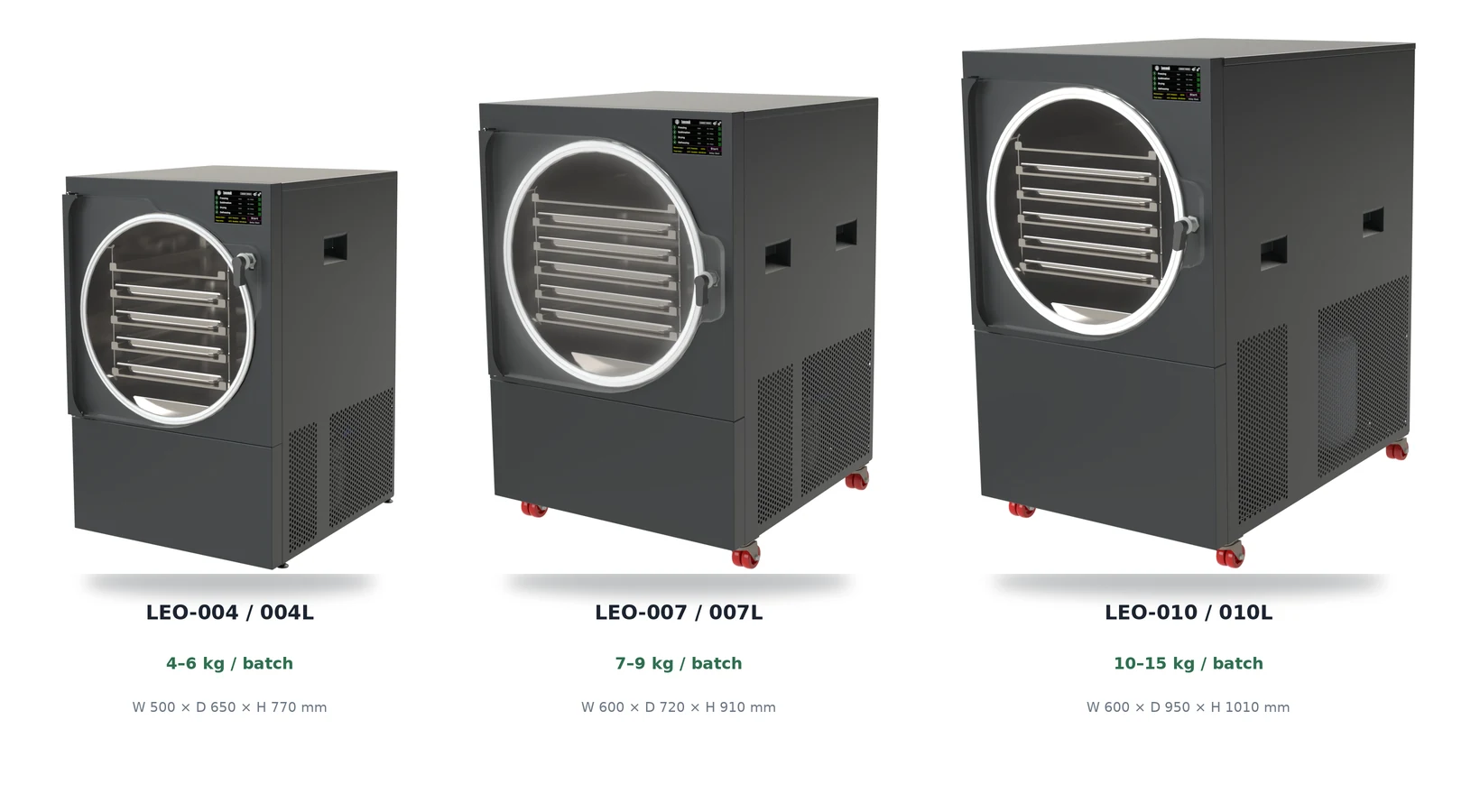

External dimensions (W × D × H)
500 × 650 × 770 mm
Net weight
87 kg
Power supply
220–240 V / 1~ / 50 Hz V / phase / Hz
Connected load
3.5 kW
Warranty
24 months (extendable to 36)
Energy consumption (avg)
0.9 kWh/h
Next step

Get a tailored quote.

Tell us your product and target throughput. An engineer replies within 24 h — with pricing, lead time, and a sizing recommendation.

Configure quote Book a 30-min call
