LEO-004L — Compact freeze-dryer

LEO-004L

Up to 6 kg per batch

Up to 6 kg per batch capacity. The LEO-004L Compact Freeze Dryer offers advanced freeze-drying technology, remote monitoring, and durable stainless steel construction for small-batch production and prototyping.

Indicative list price

€7.480

EX-VAT · CONFIGURATION-DEPENDENT

Available configurations

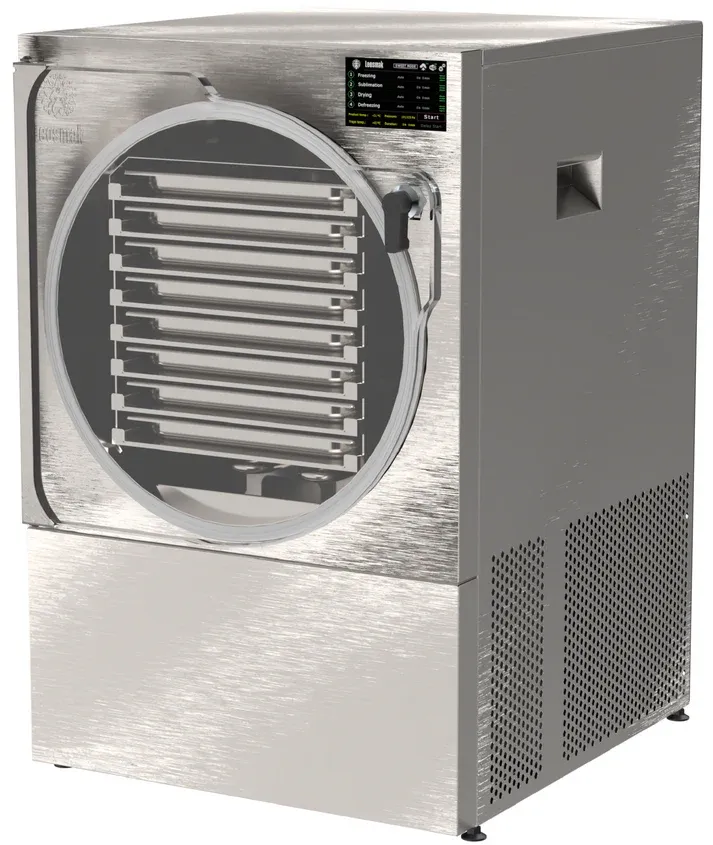

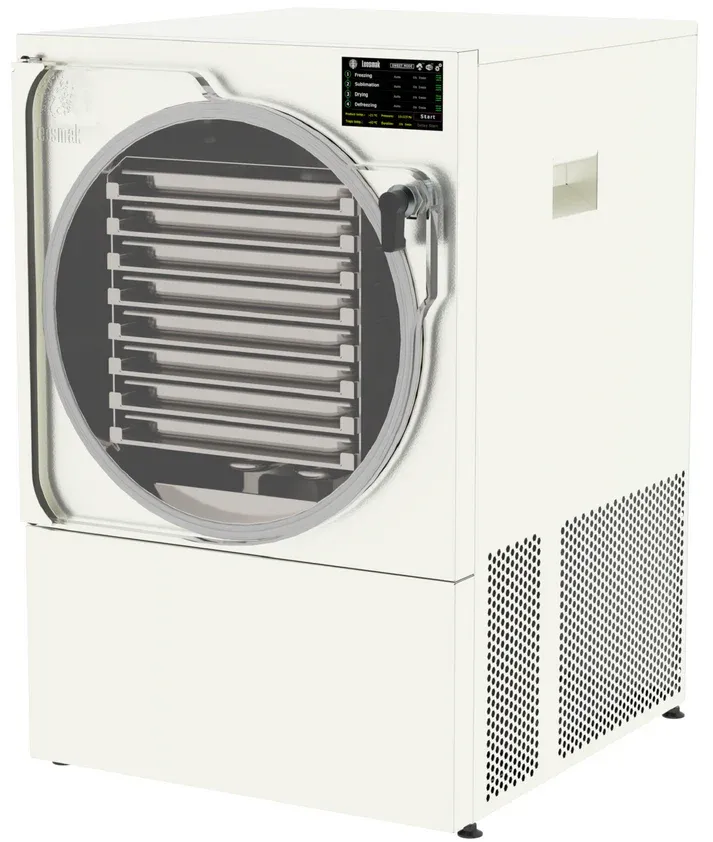

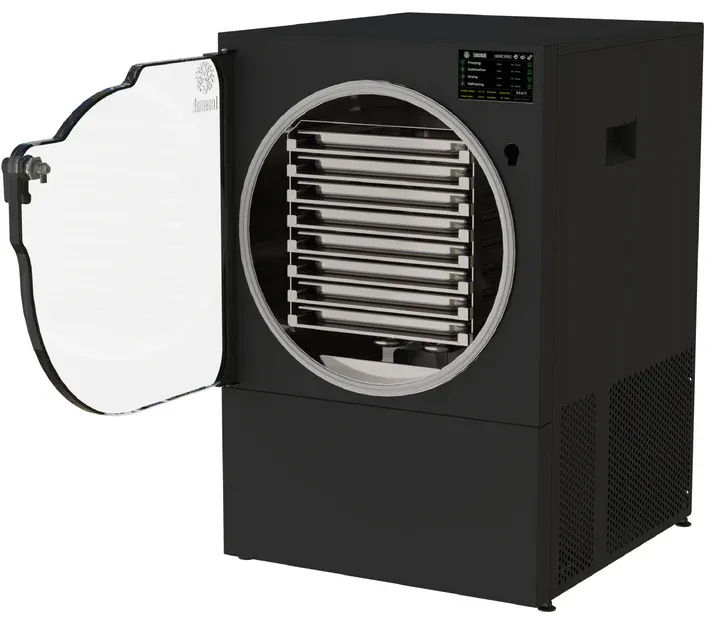

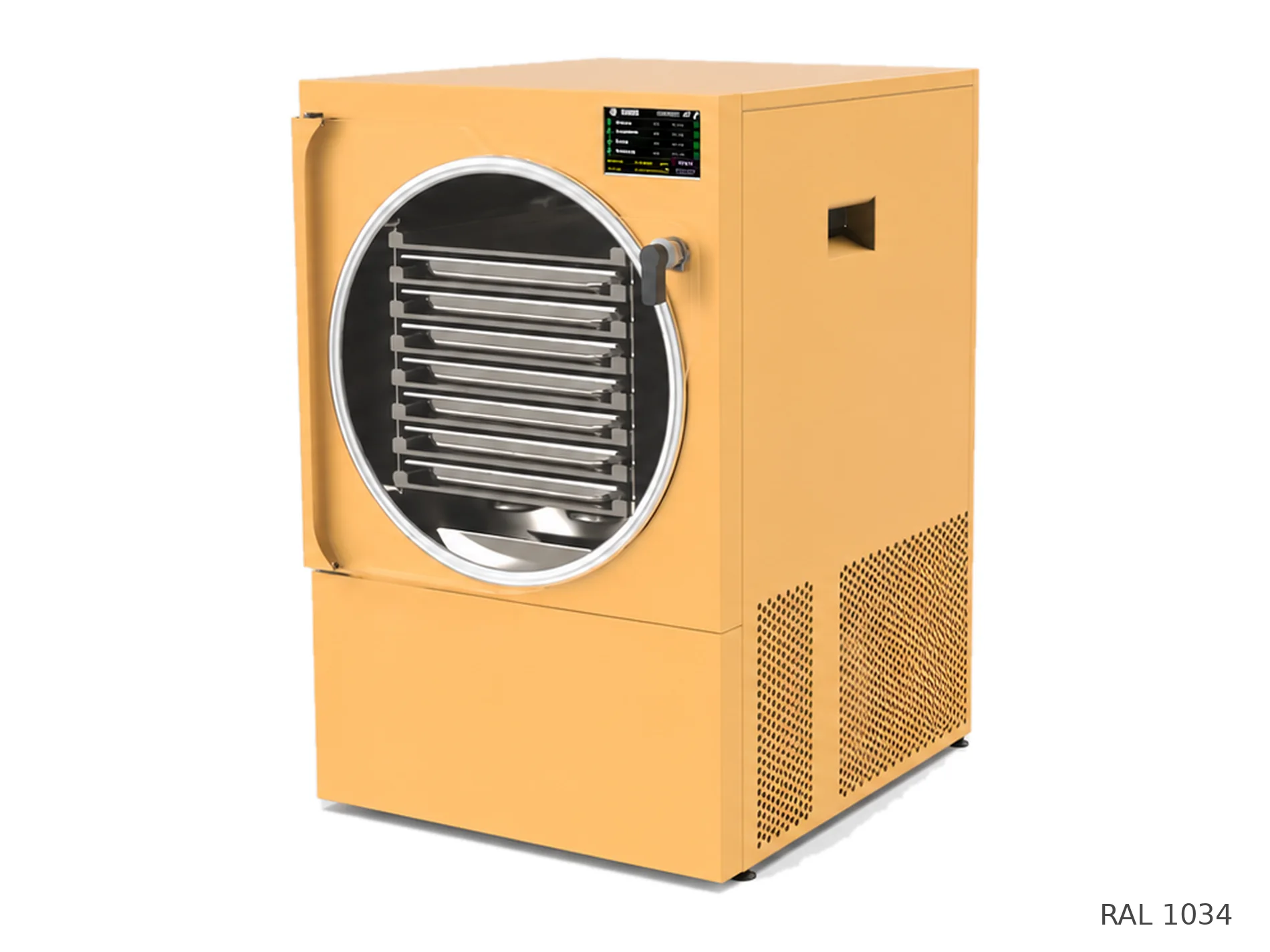

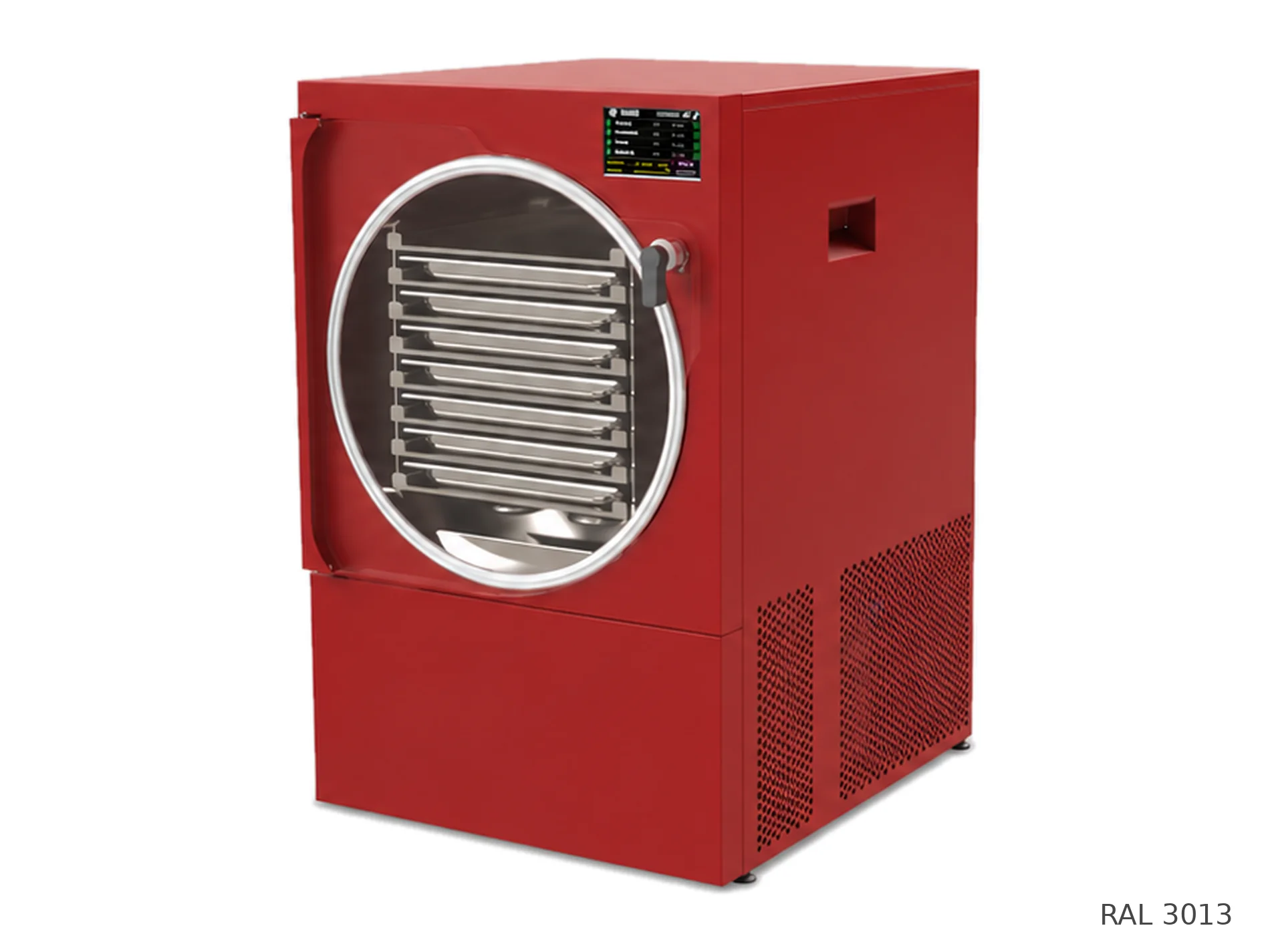

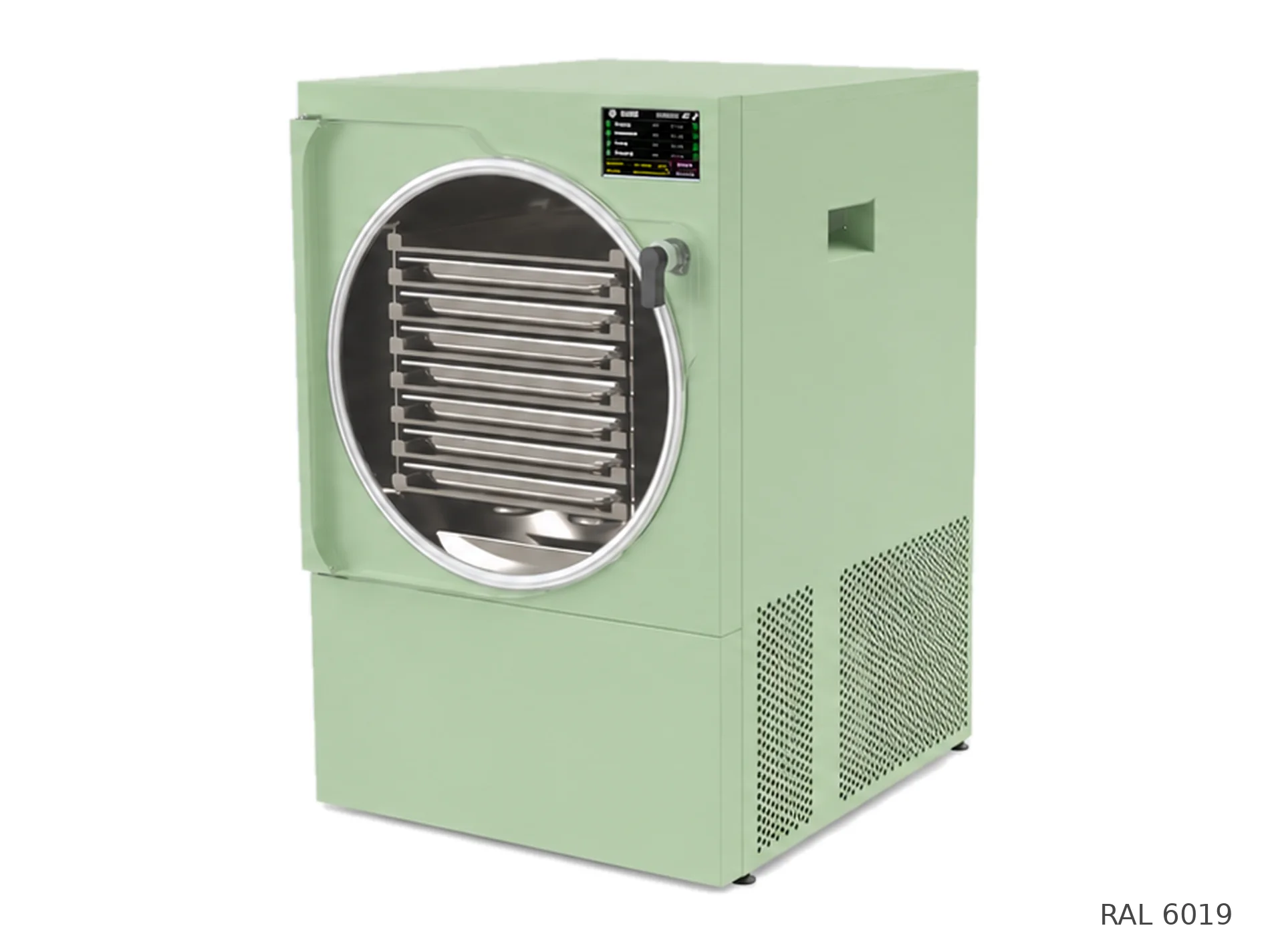

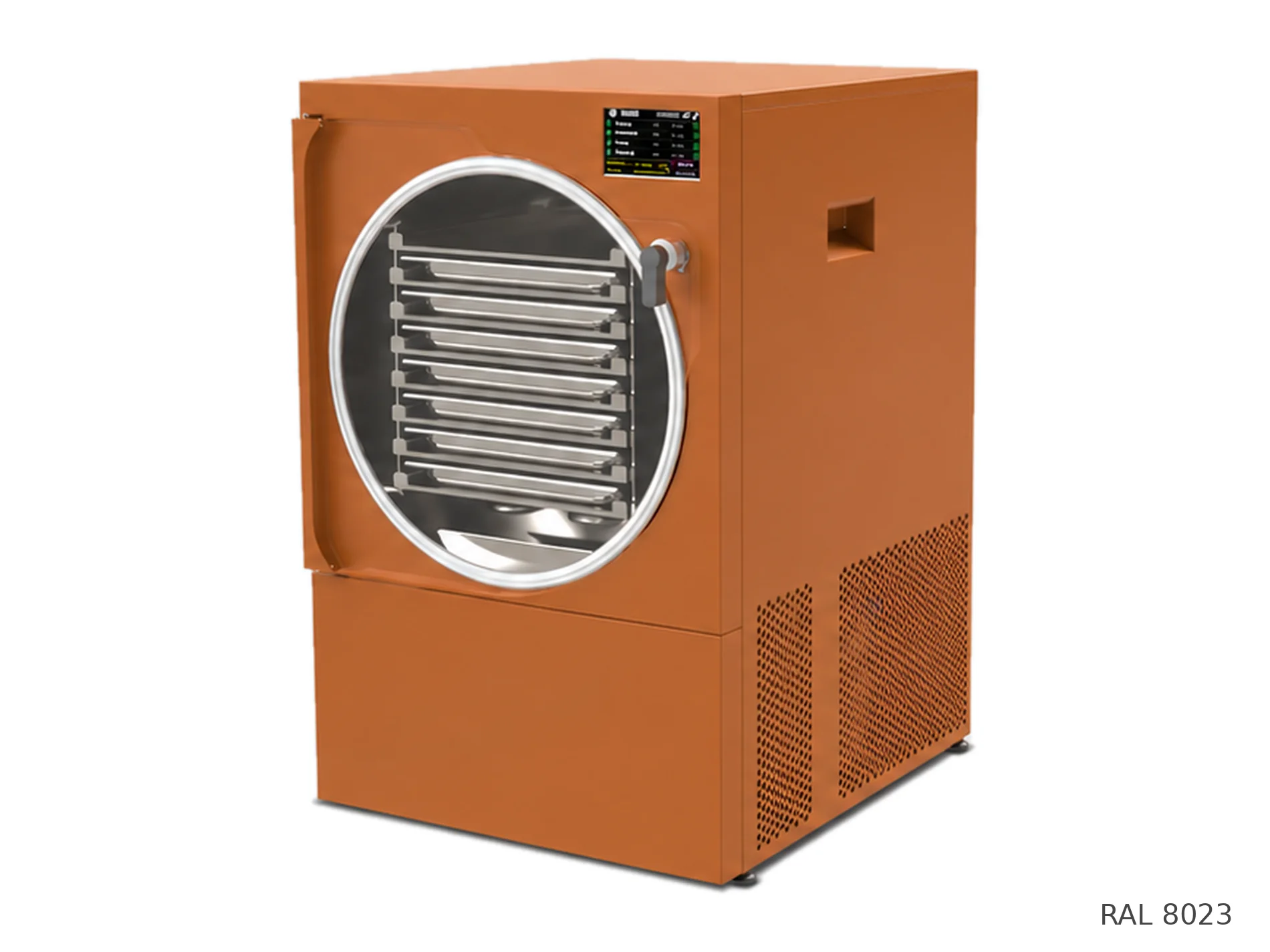

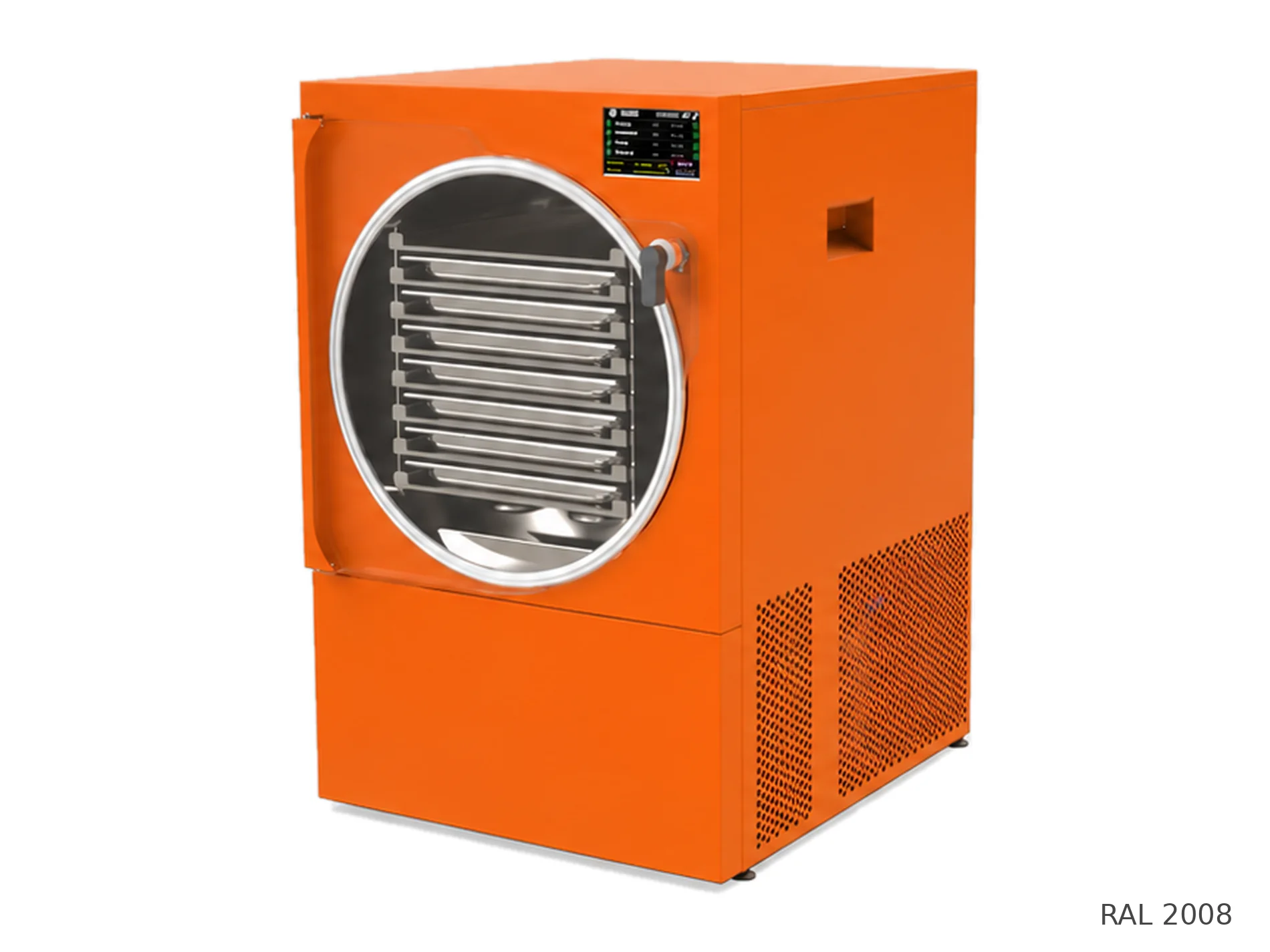

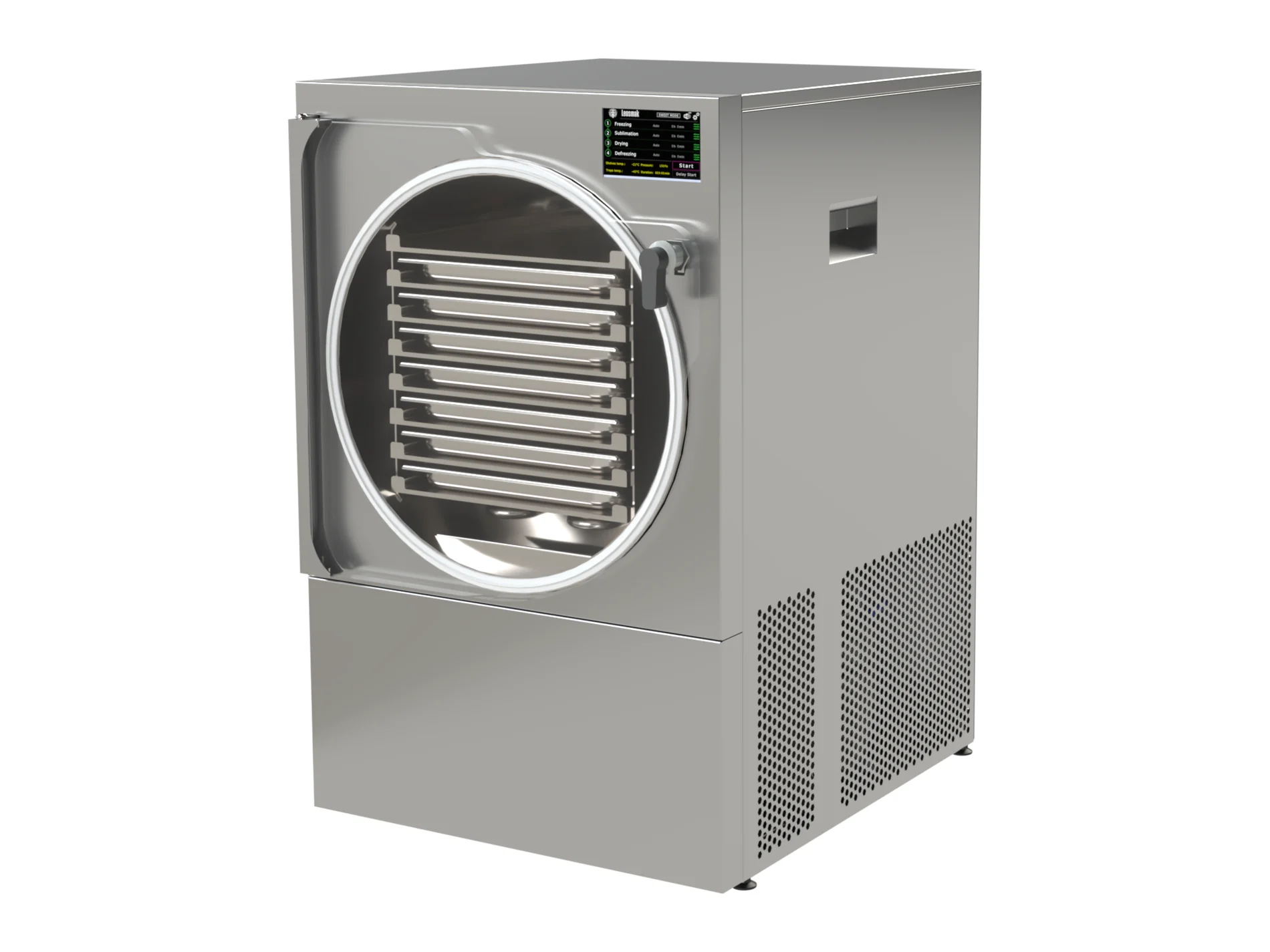

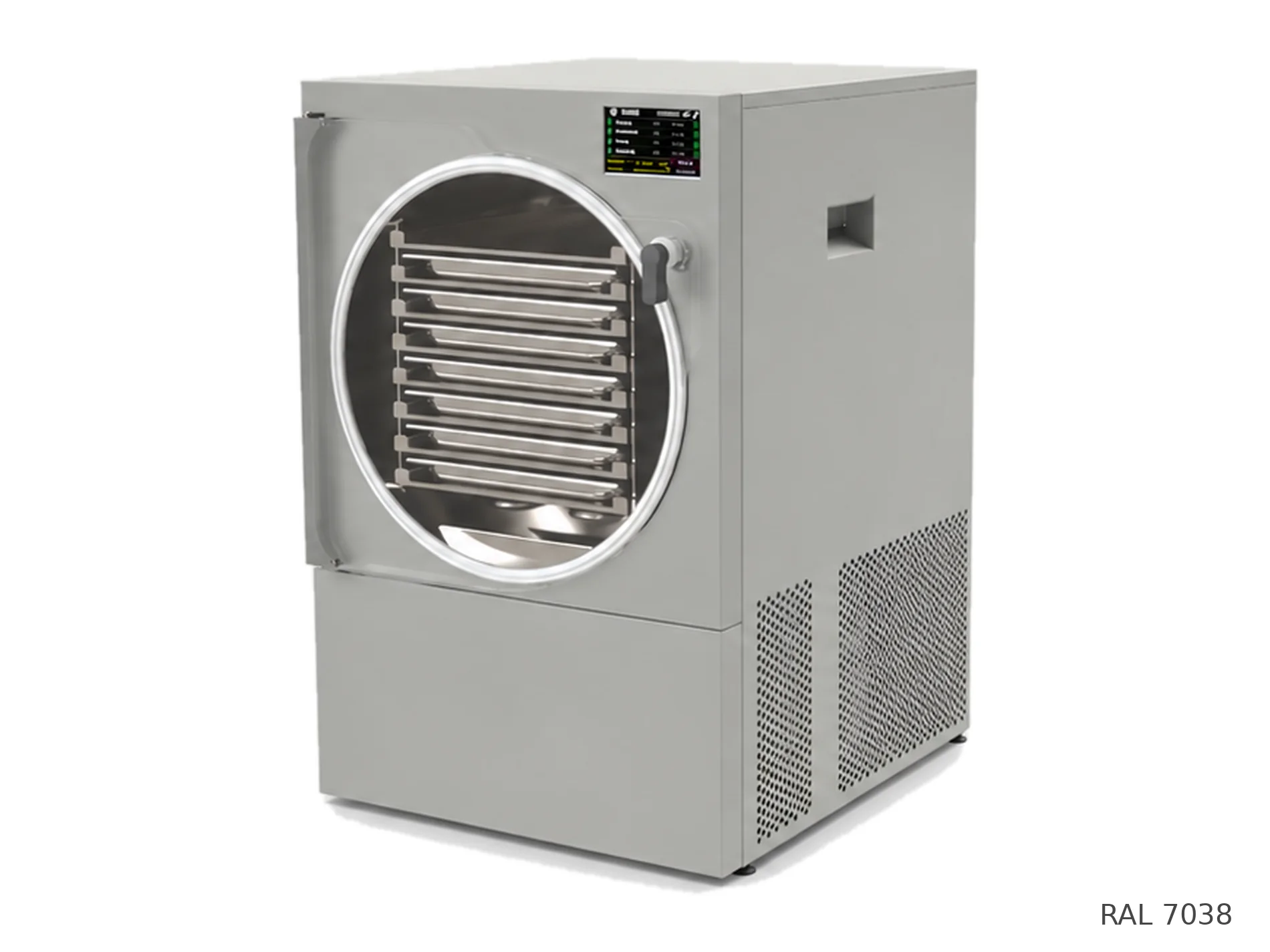

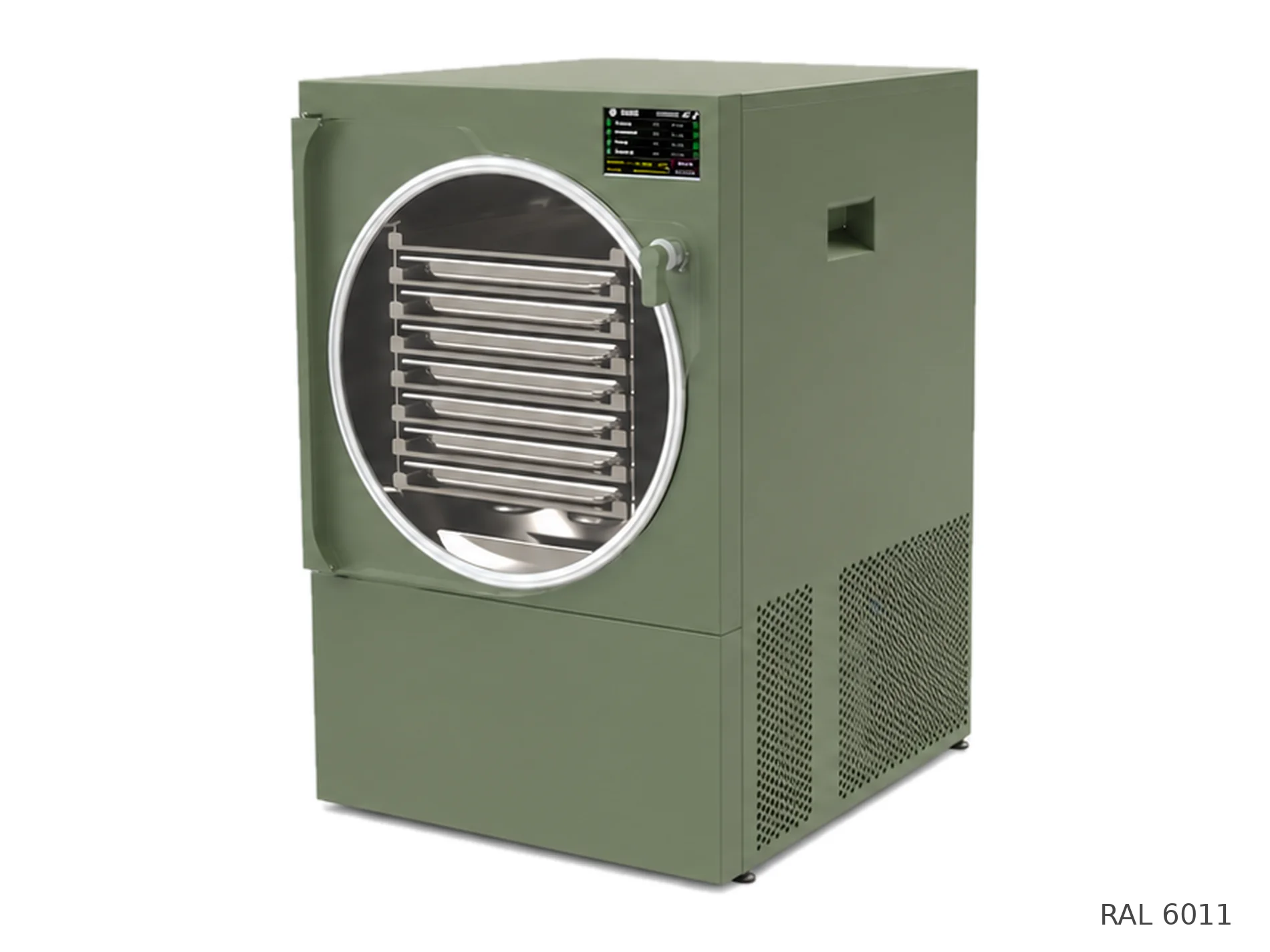

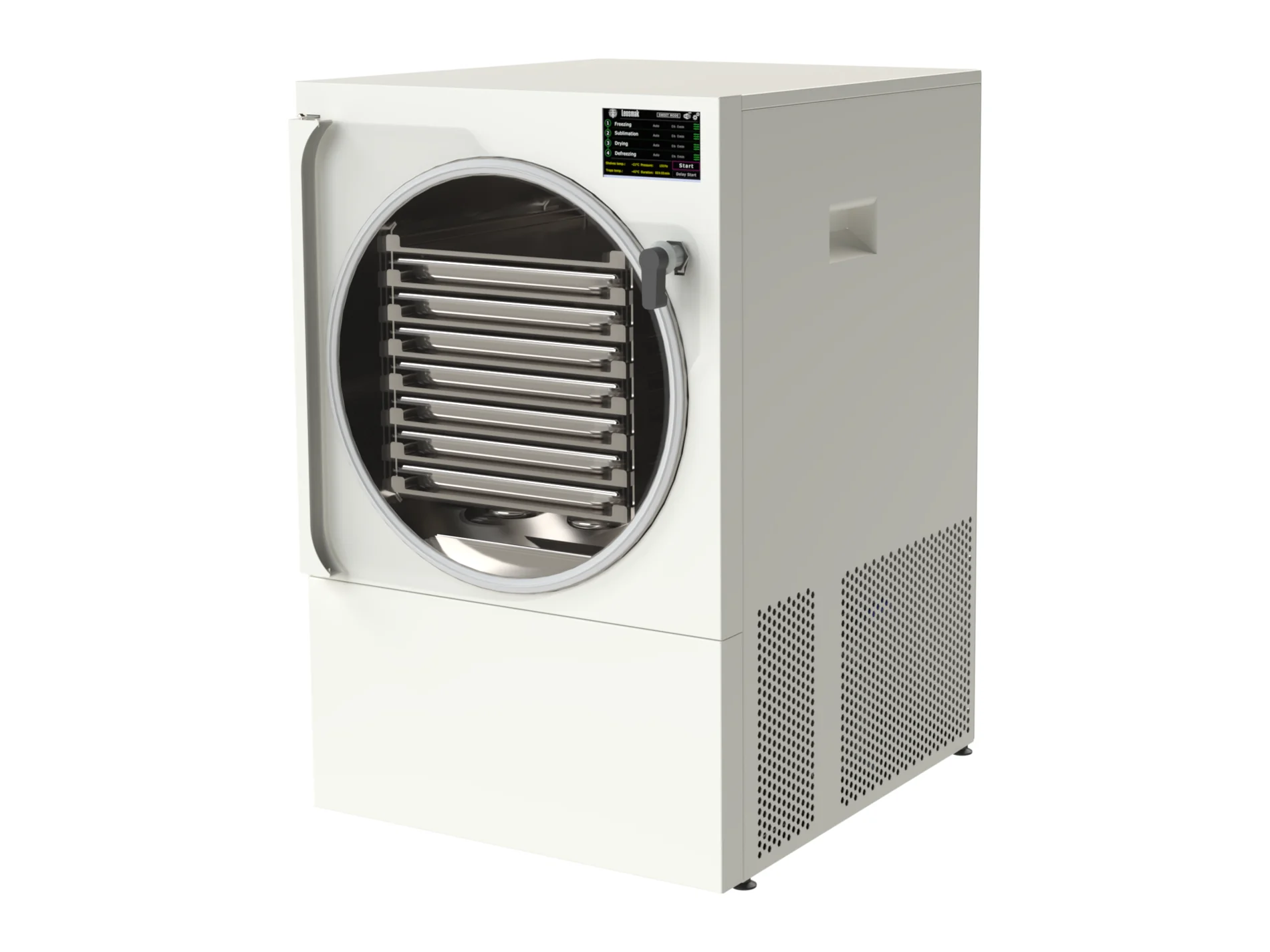

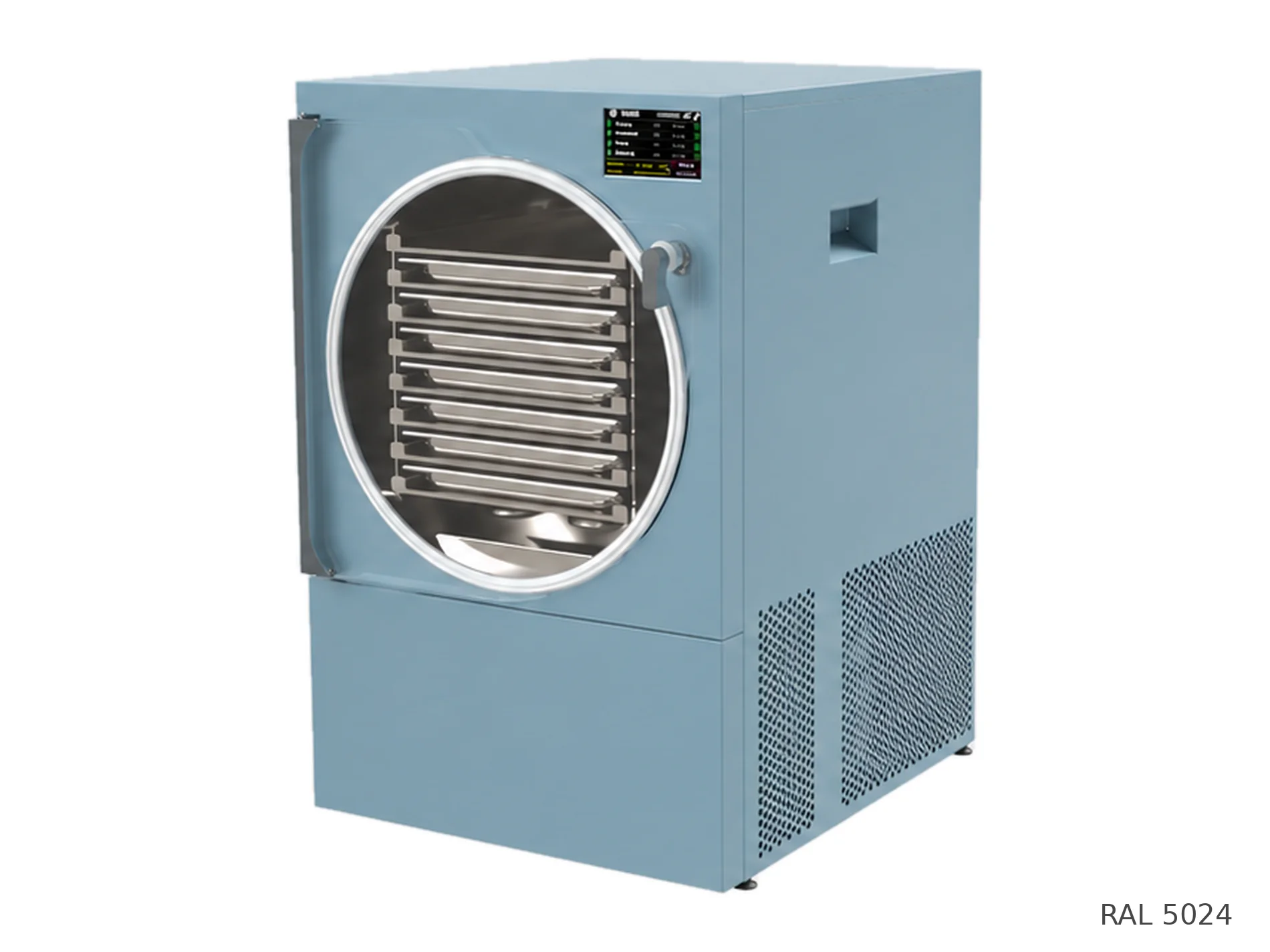

Jet BlackTraffic WhiteStainless SteelOther RAL Color

Spec sheet

Engineering data.

Batch capacity (fresh load)

6 kg/batch

Ice condenser capacity

10 kg (total ice)

Total shelf area

0.6 m²

Number of shelves

7 count

Number of trays

7 count

Tray size

GN 1/2, 2 cm

Shelf temperature range

-40 to +70 °C

Min. condenser temperature

-40 °C

Vacuum pump type

Oil-sealed (oil-free option)

Refrigeration type

Air-cooled

Refrigerant

R-452B

Chamber material

AISI 304 stainless steel

Shelf material

Stainless steel

Body color options

Jet Black, Traffic White, Stainless Steel, Other RAL

Defrosting

Automatic

Control system

LCD touchscreen + Wi-Fi

Data logging & recipes

Wi-Fi app monitoring

Remote monitoring

Yes

External dimensions (W × D × H)

500 × 650 × 770 mm

Net weight

94 kg

Power supply

220–240 V / 1~ / 50 Hz V / phase / Hz

Connected load

3.5 kW

Warranty

24 months (extendable to 36)

Energy consumption (avg)

0.9 kWh/h
