Home/ Compact/ LEO-007
LEOSMAK· LEO007· COMPACT

LEO-007

Up to 7 kg per batch

Up to 7 kg per batch capacity. The LEO-007 Compact Freeze Dryer offers reliable small-batch performance with intuitive controls, remote monitoring, and efficient energy use.

Indicative list price
€9.480
EX-VAT · CONFIGURATION-DEPENDENT
Configure quote Talk to an engineer →
Available configurations

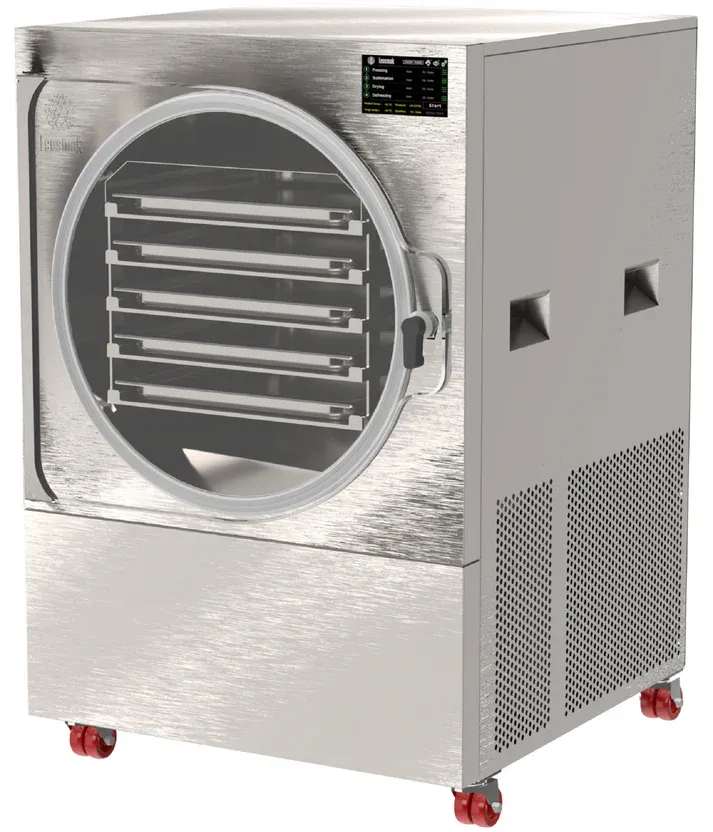

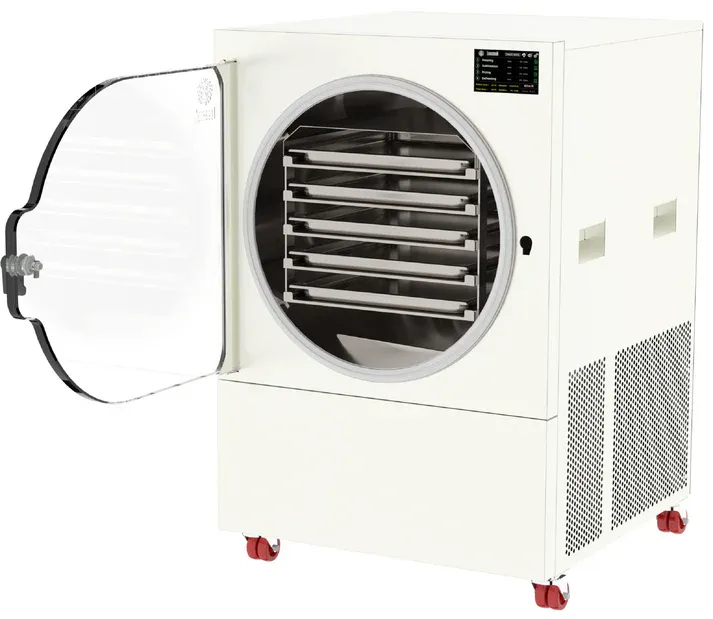

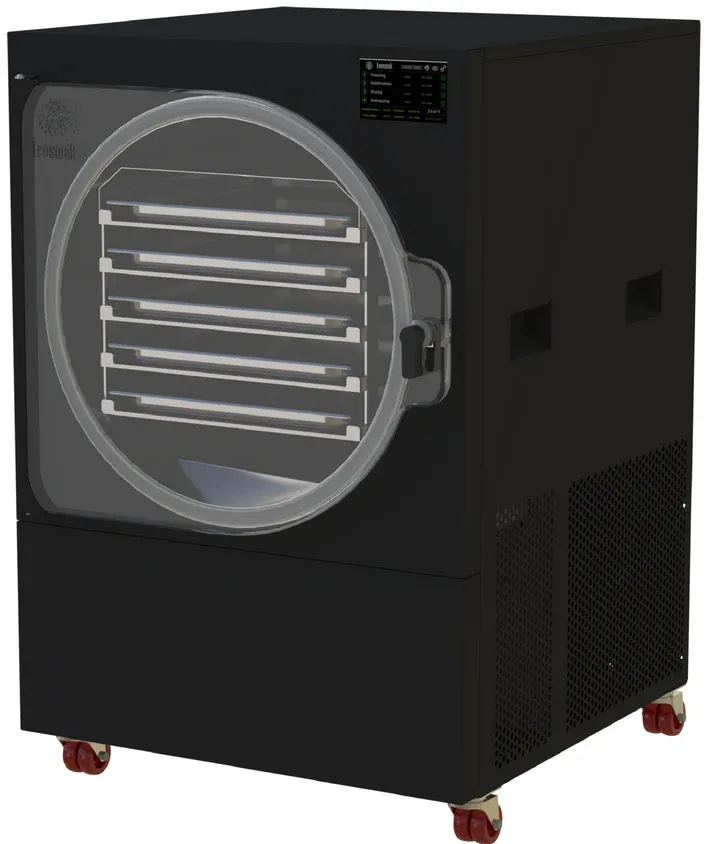

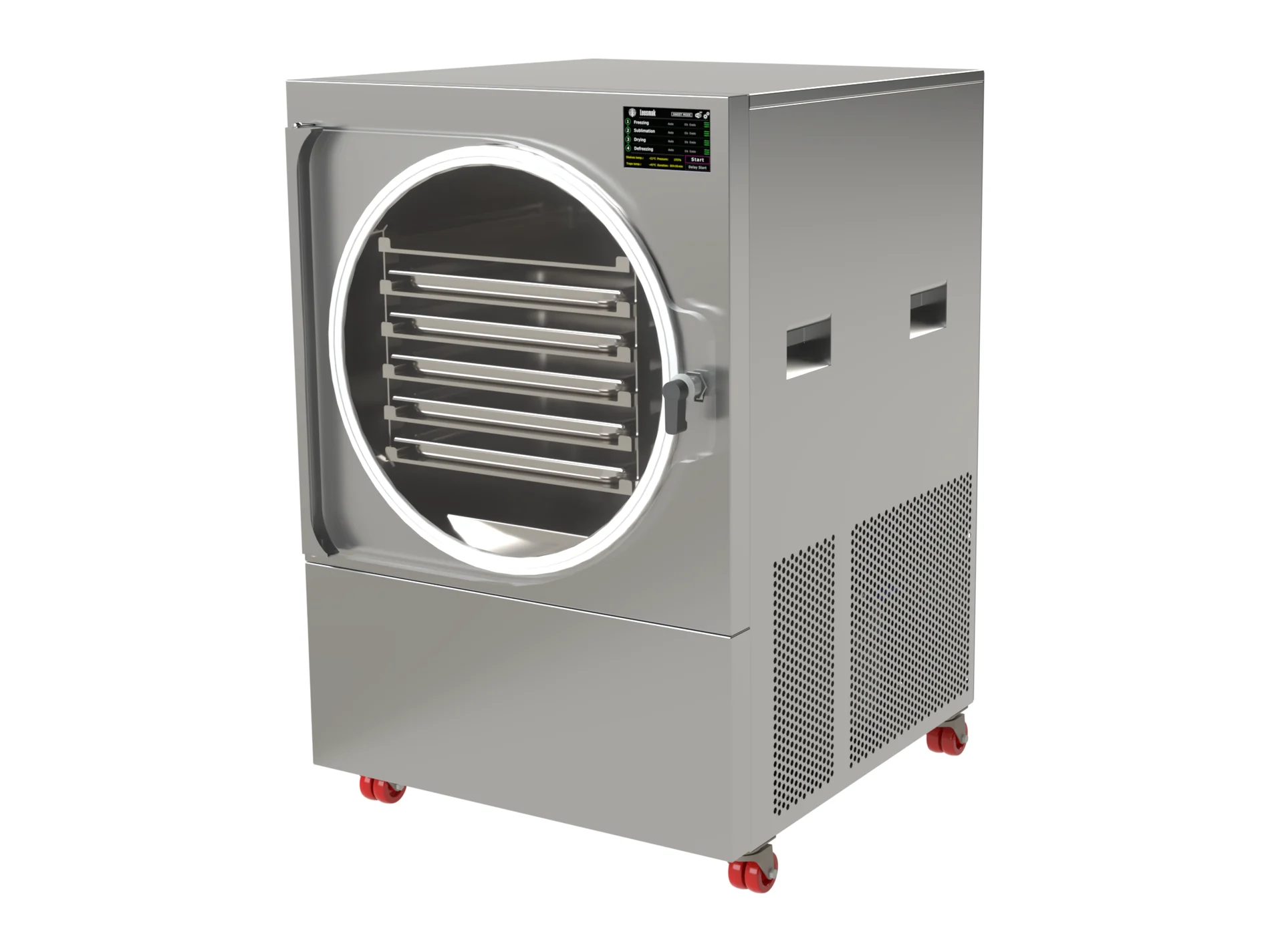

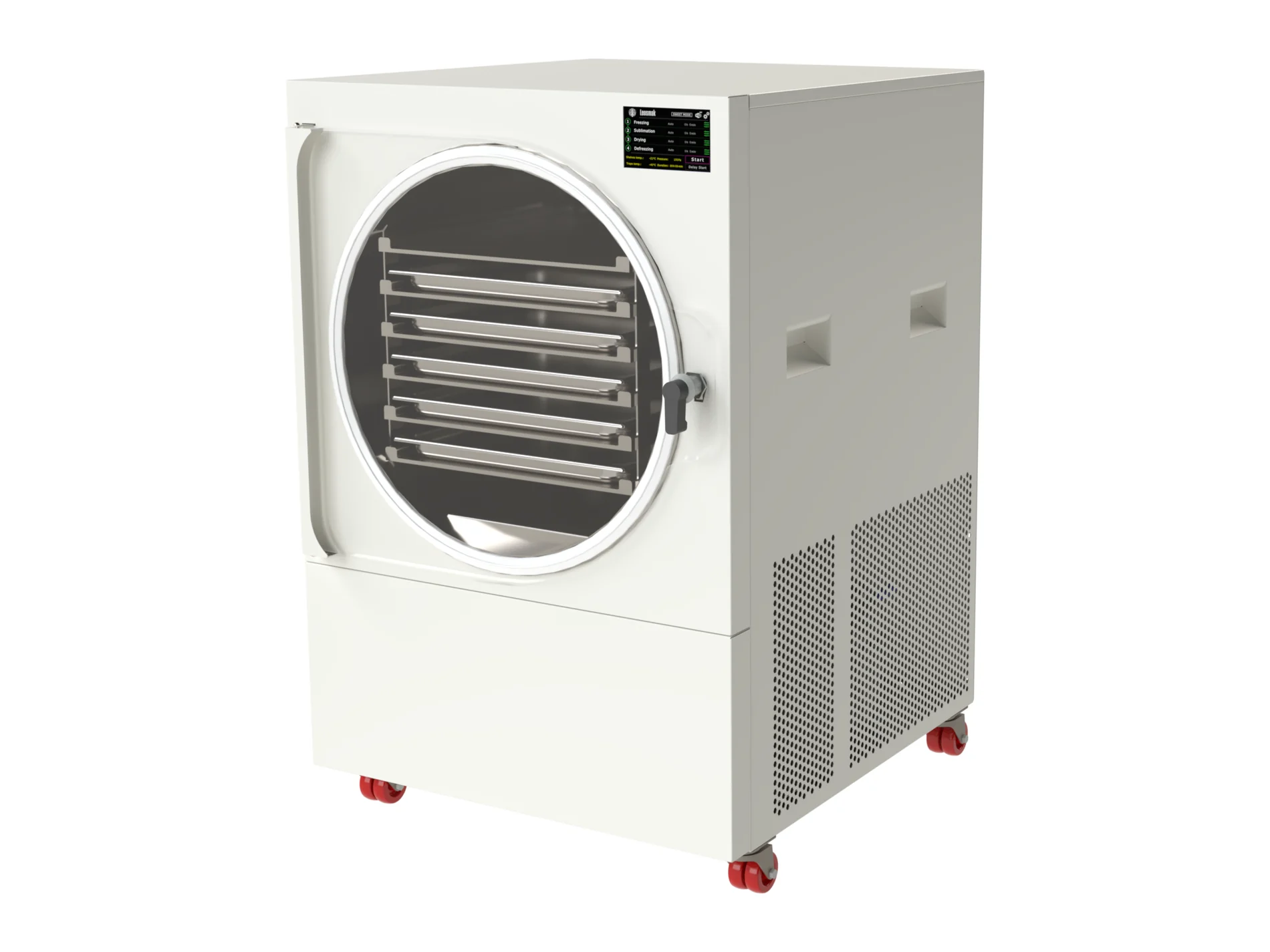

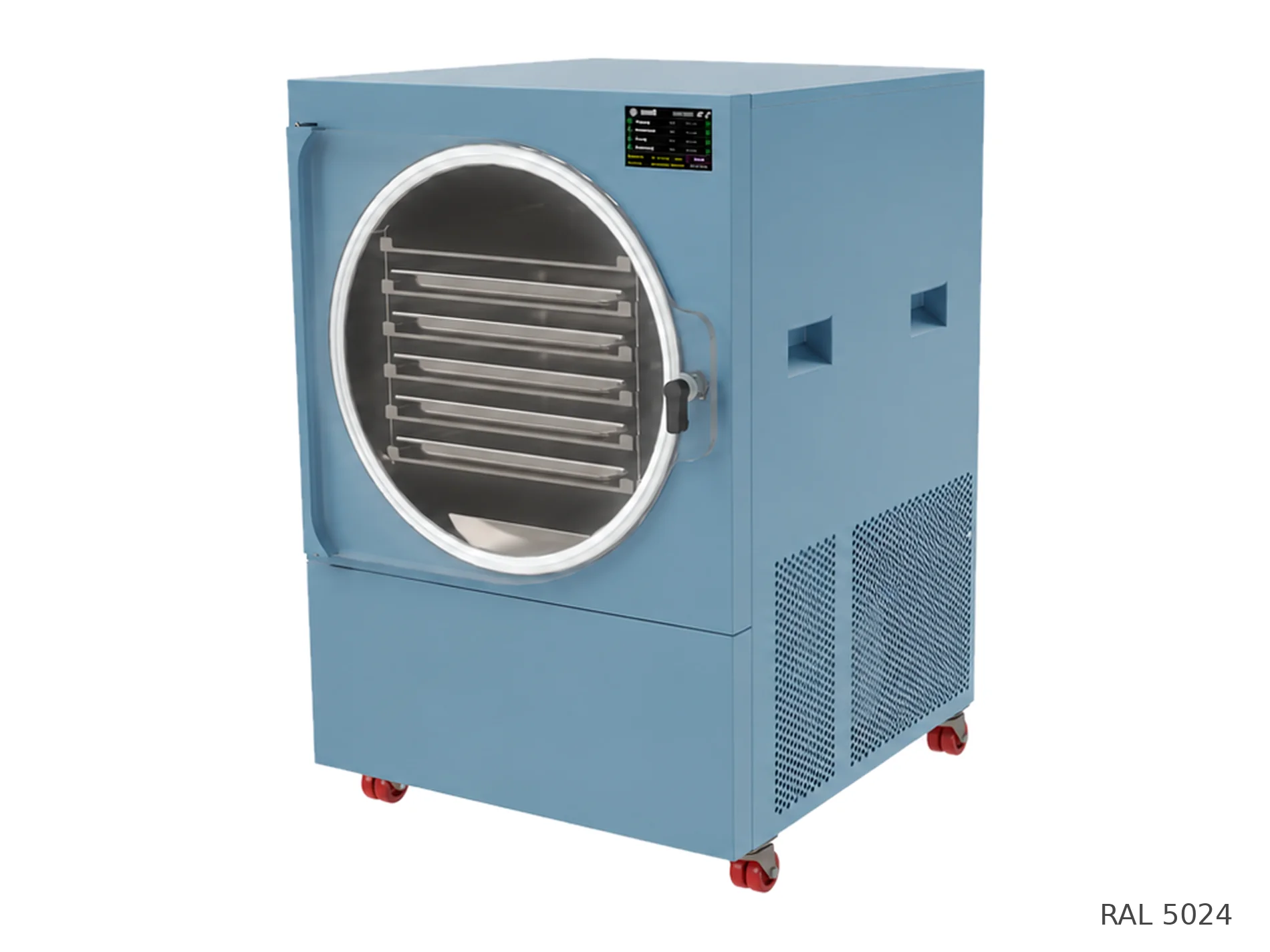

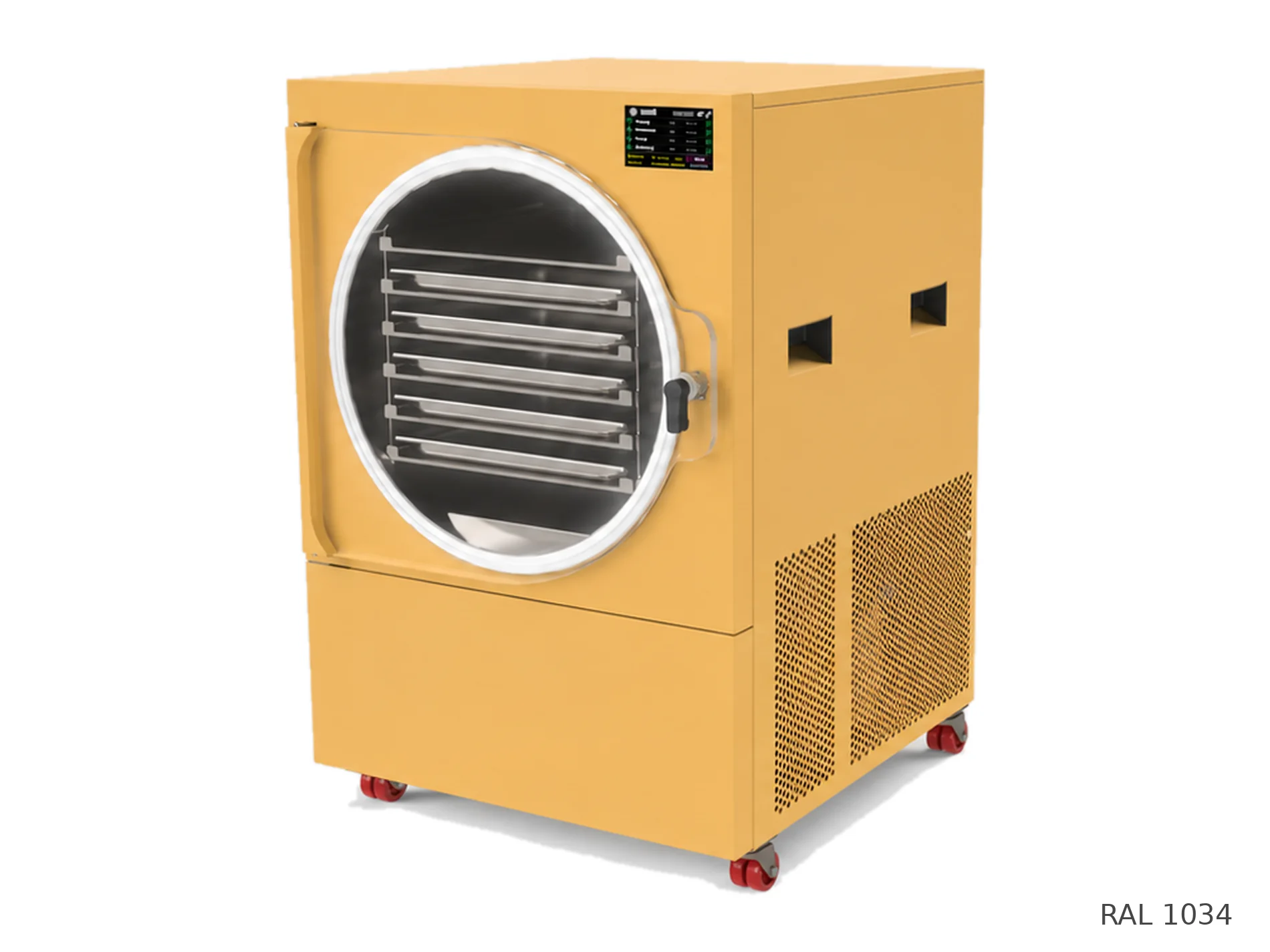

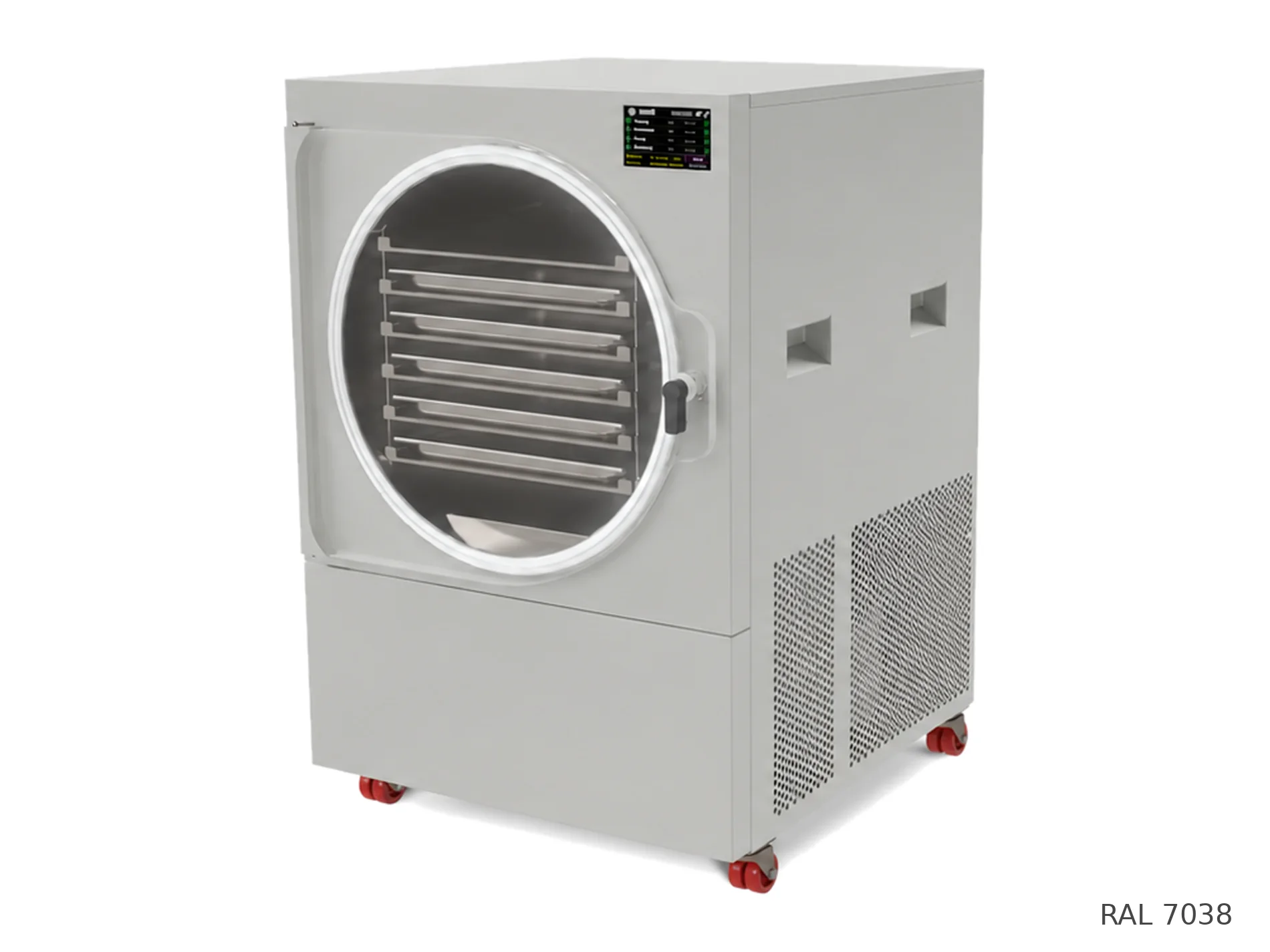

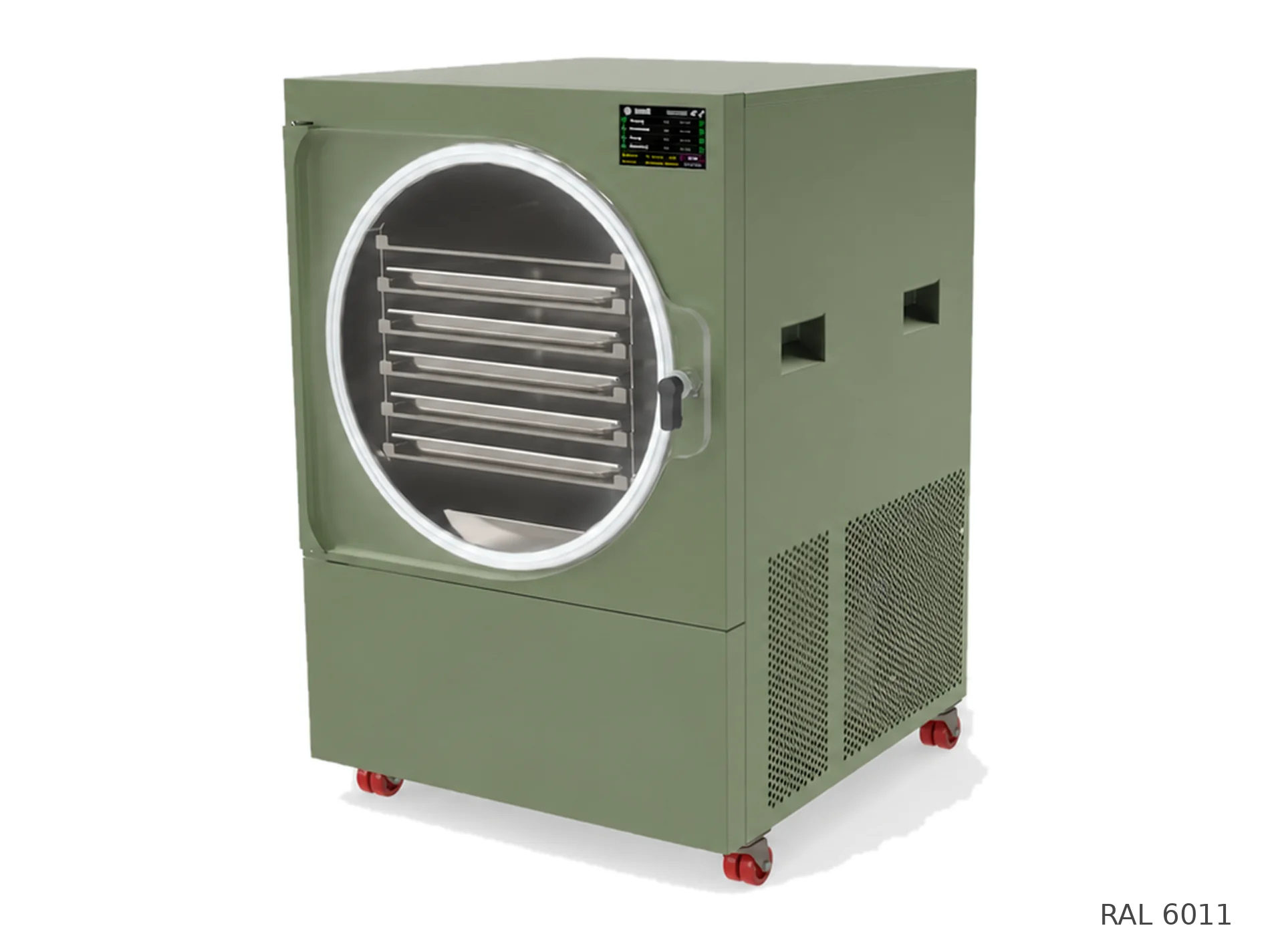

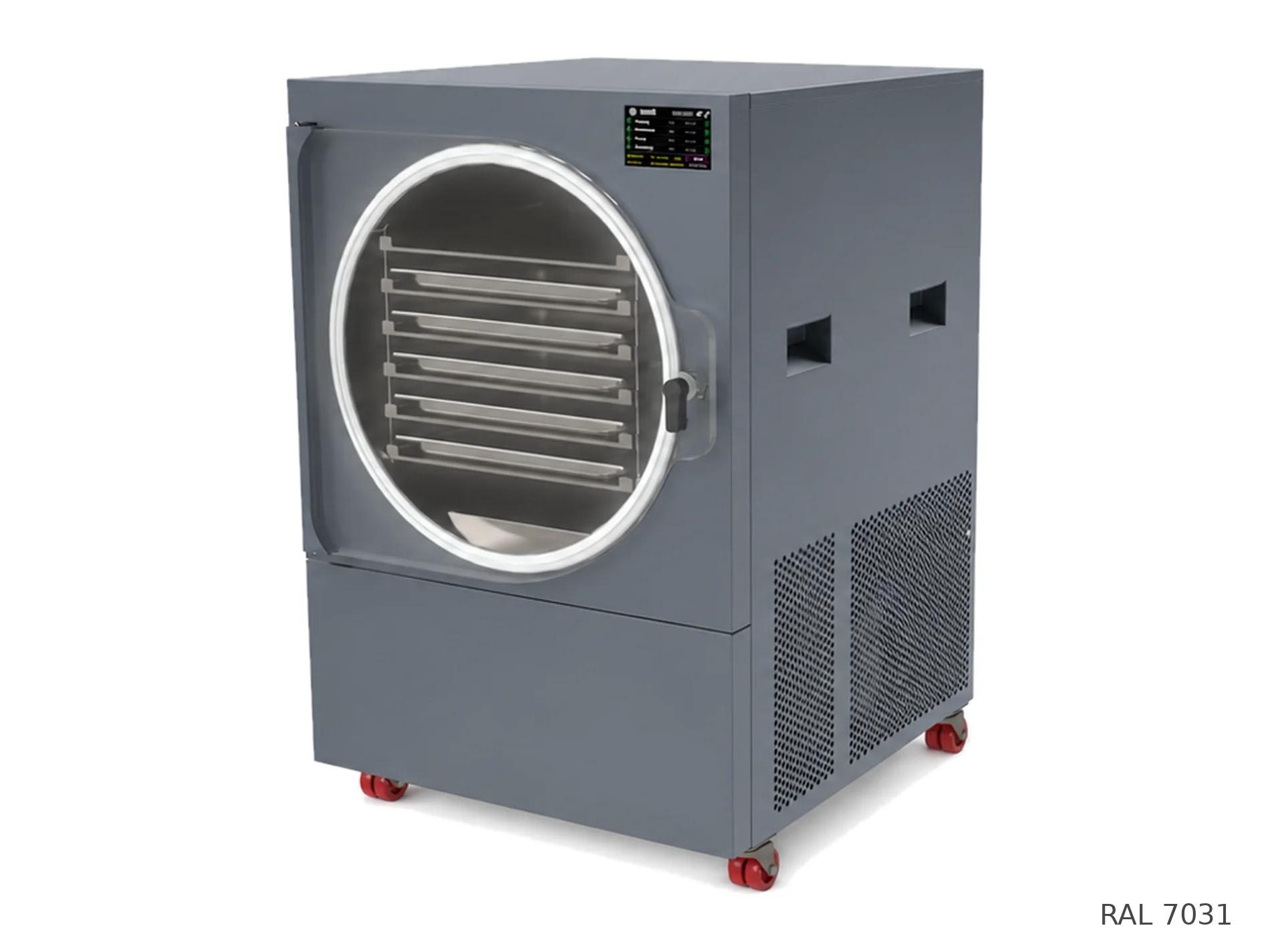

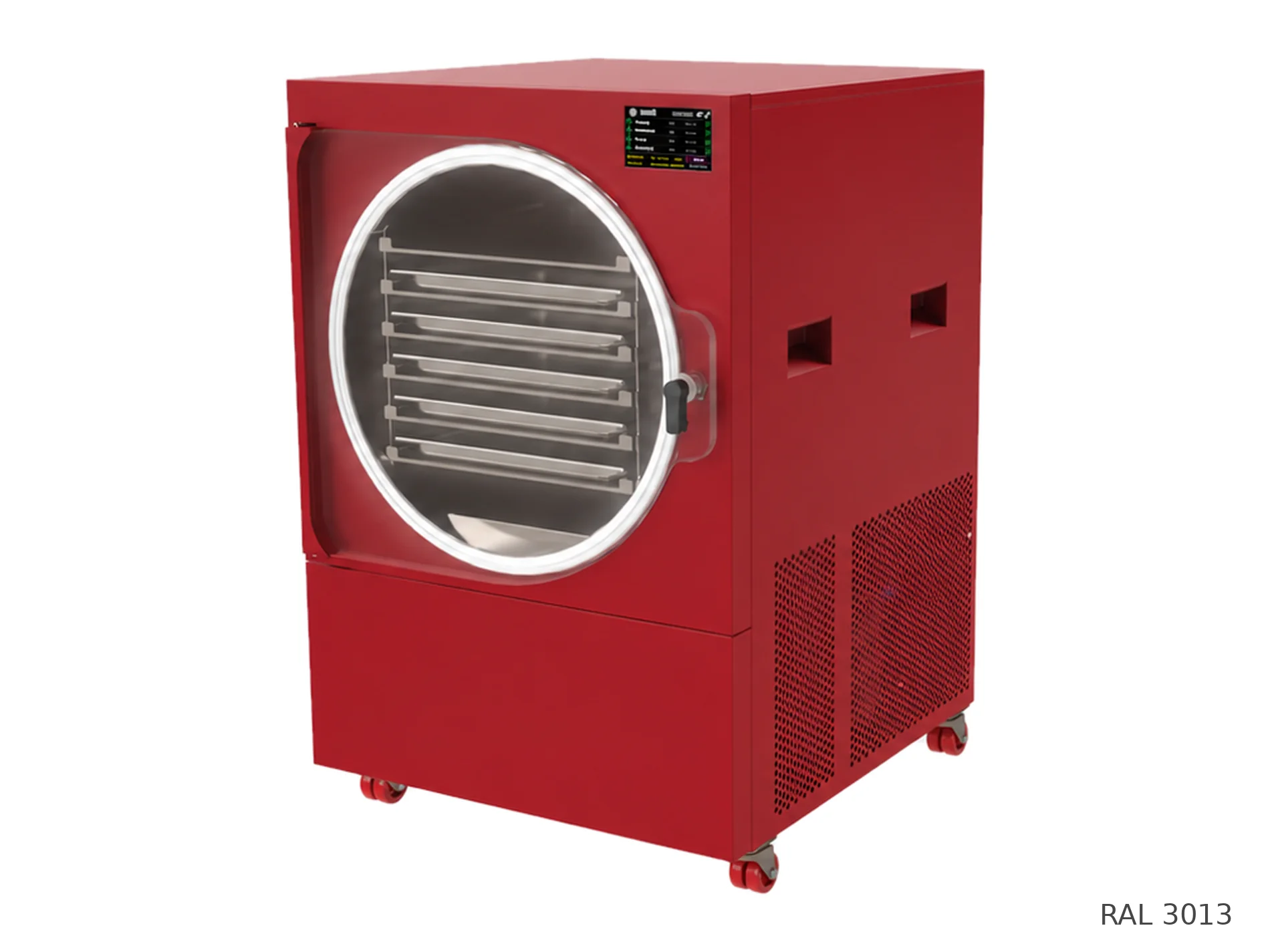

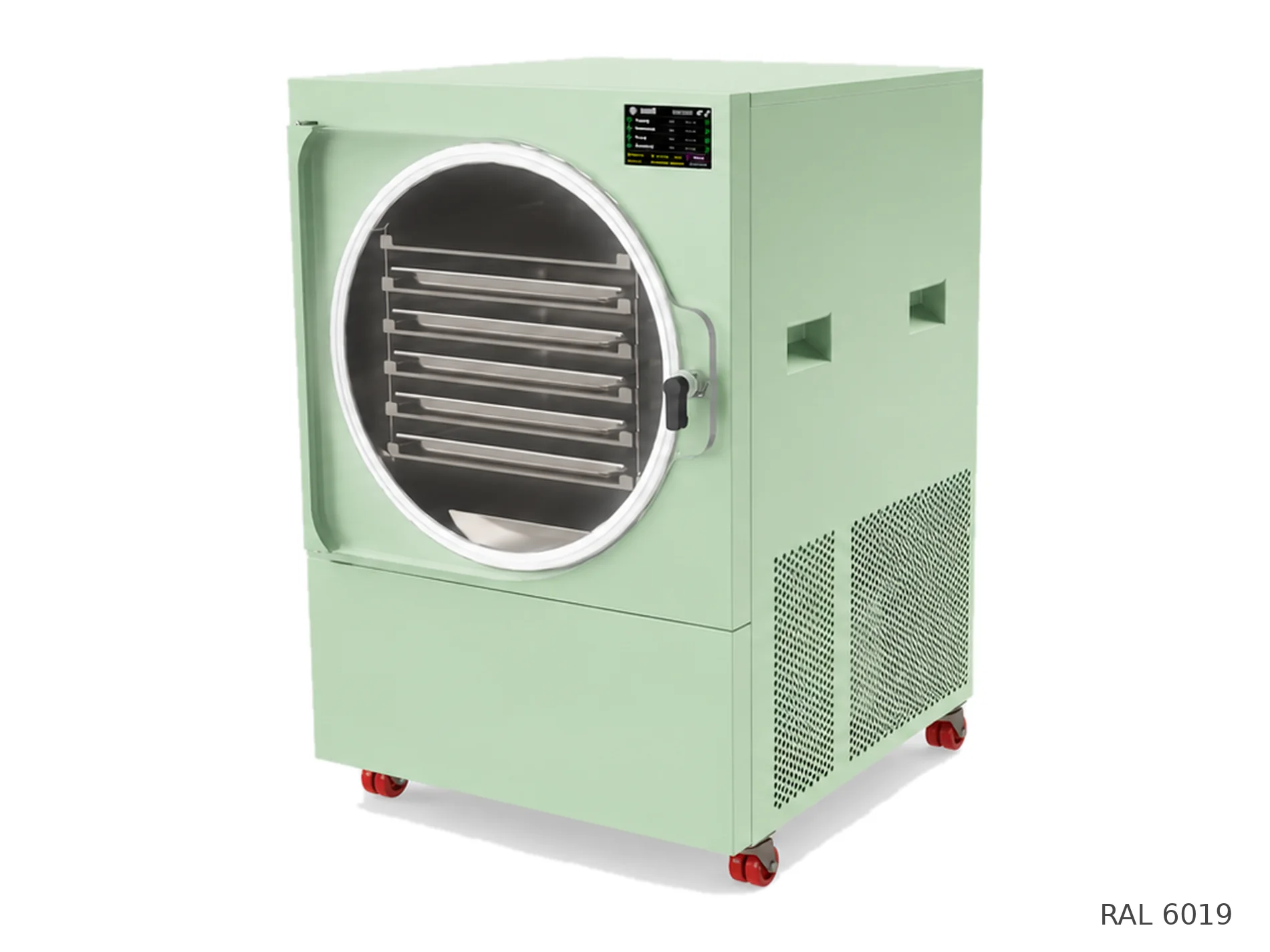

Jet BlackTraffic WhiteStainless SteelOther RAL Color
LEO-007
Capacity
Up to 7 kg
Shelf area
0.61 m²
Trays
5
Shelf temp
-40 to +70 °C
Condenser
-40 °C
Spec sheet

Engineering data.

Batch capacity (fresh load)
7 kg/batch
Ice condenser capacity
10 kg (total ice)
Total shelf area
0.61 m²
Number of shelves
5 count
Number of trays
5 count
Tray size
GN 2/3, 2–4 cm
Shelf temperature range
-40 to +70 °C
Min. condenser temperature
-40 °C
Vacuum pump type
Oil-sealed (oil-free option)
Refrigeration type
Air-cooled
Refrigerant
R-452B
Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options

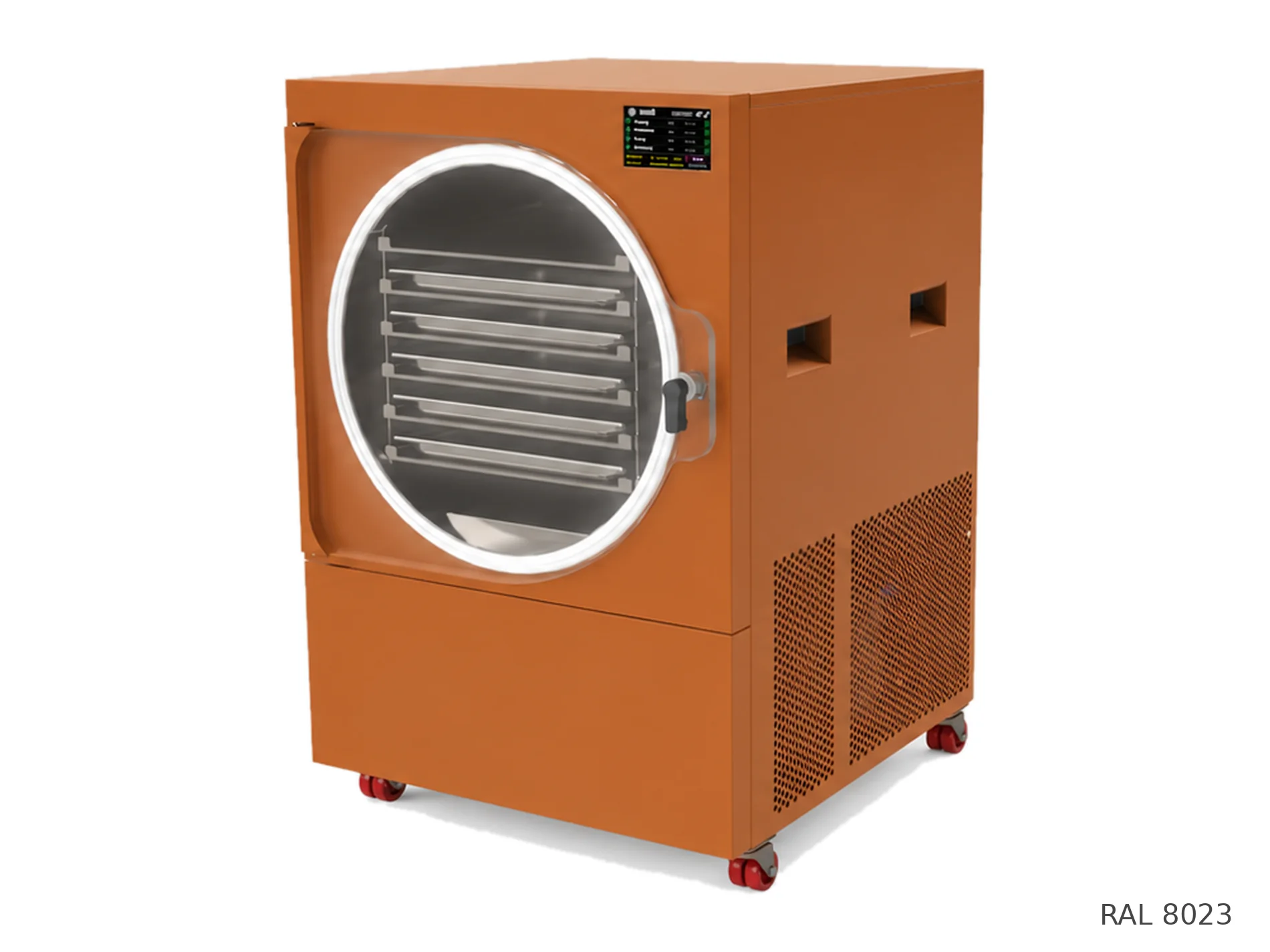

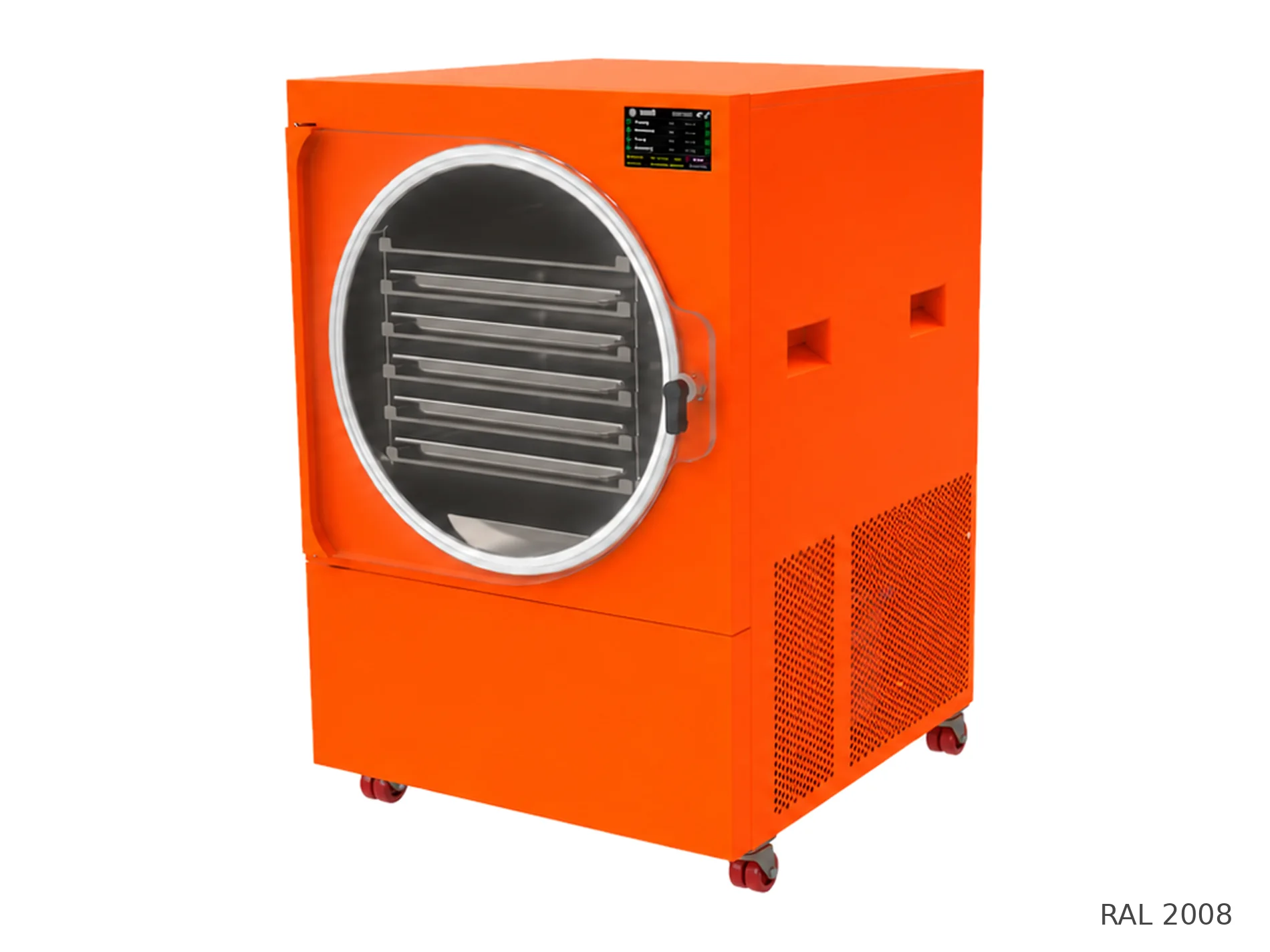

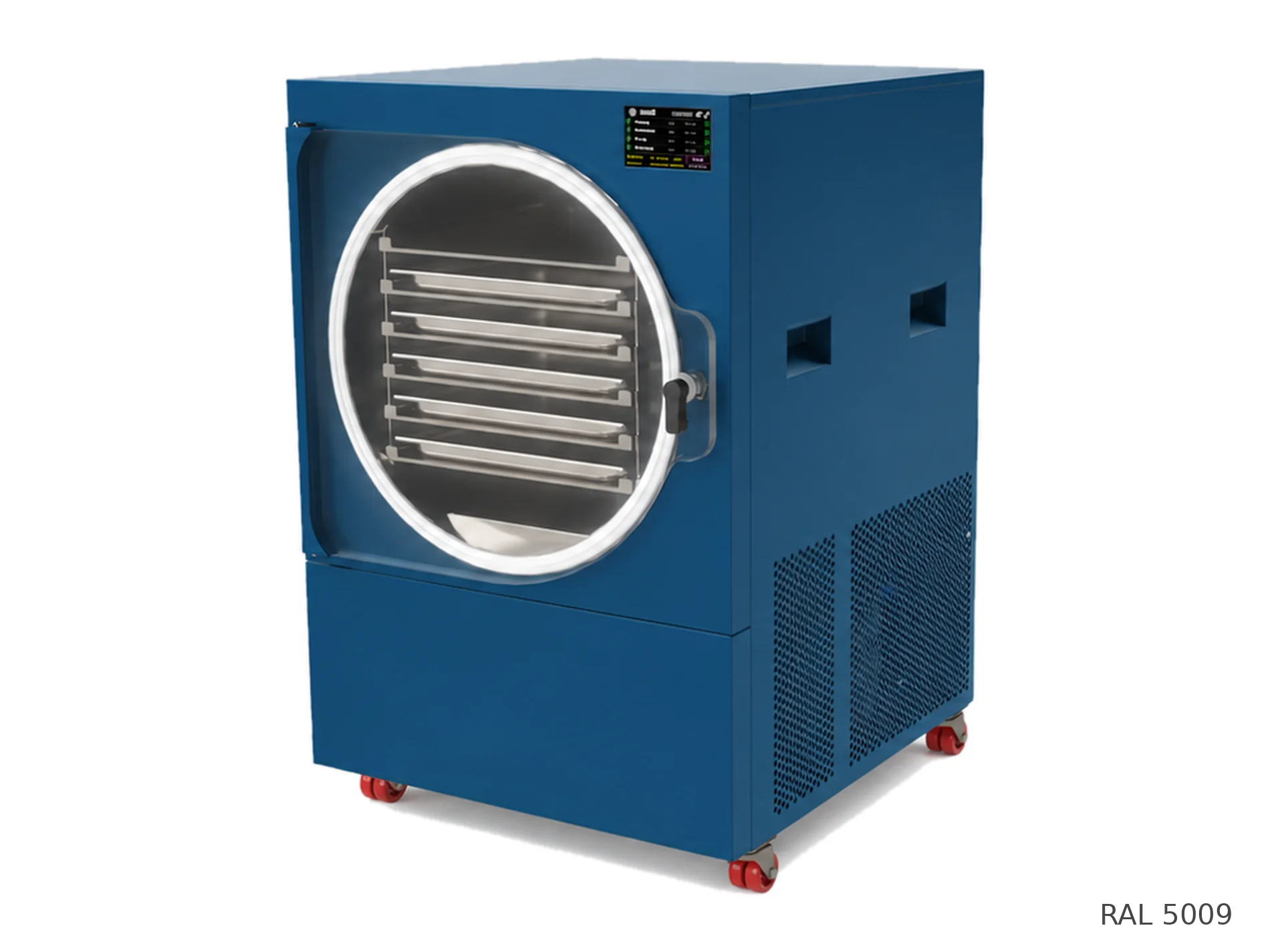

Jet Black, Traffic White, Stainless Steel, Other RAL
Defrosting
Automatic
Control system
LCD touchscreen + Wi-Fi
Data logging & recipes
Wi-Fi app monitoring
Remote monitoring
Yes
External dimensions (W × D × H)
600 × 720 × 910 mm
Net weight
117 kg
Power supply
220–240 V / 1~ / 50 Hz V / phase / Hz
Connected load
3.5 kW
Warranty
24 months (extendable to 36)
Energy consumption (avg)
1.2 kWh/h
Next step

Get a tailored quote.

Tell us your product and target throughput. An engineer replies within 24 h — with pricing, lead time, and a sizing recommendation.
