Home/ Light commercial/ LEO-010L
LEOSMAK· LEO010L· LIGHT COMMERCIAL

LEO-010L

Up to 15 kg per batch

Up to 15 kg per batch capacity. The LEO-010L Compact Freeze Dryer is a high-capacity freeze-drying solution tailored for commercial use, offering professional-grade performance, remote monitoring, and energy-efficient operation.

Indicative list price
€17.180
EX-VAT · CONFIGURATION-DEPENDENT
Configure quote Talk to an engineer →
Available configurations

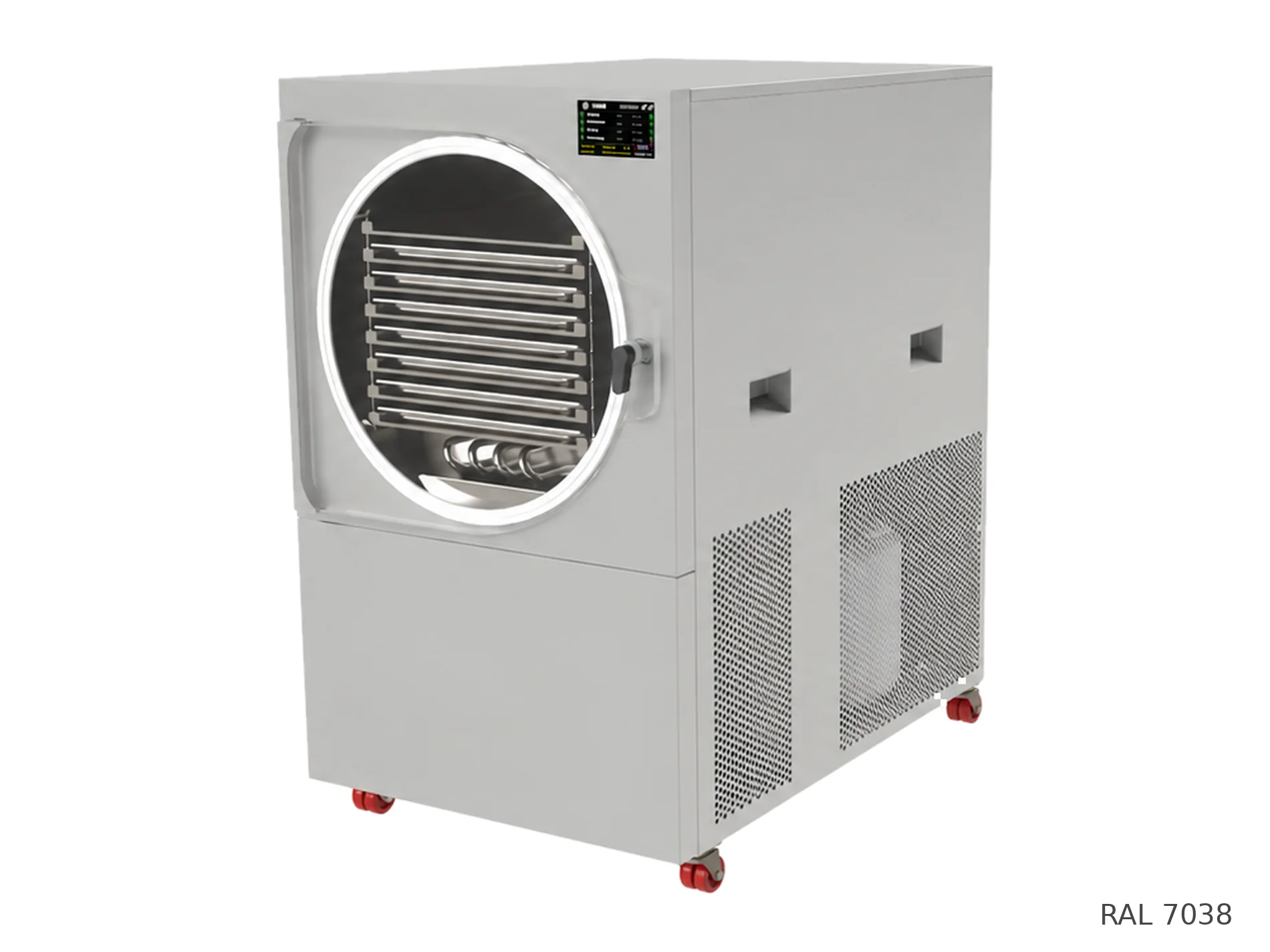

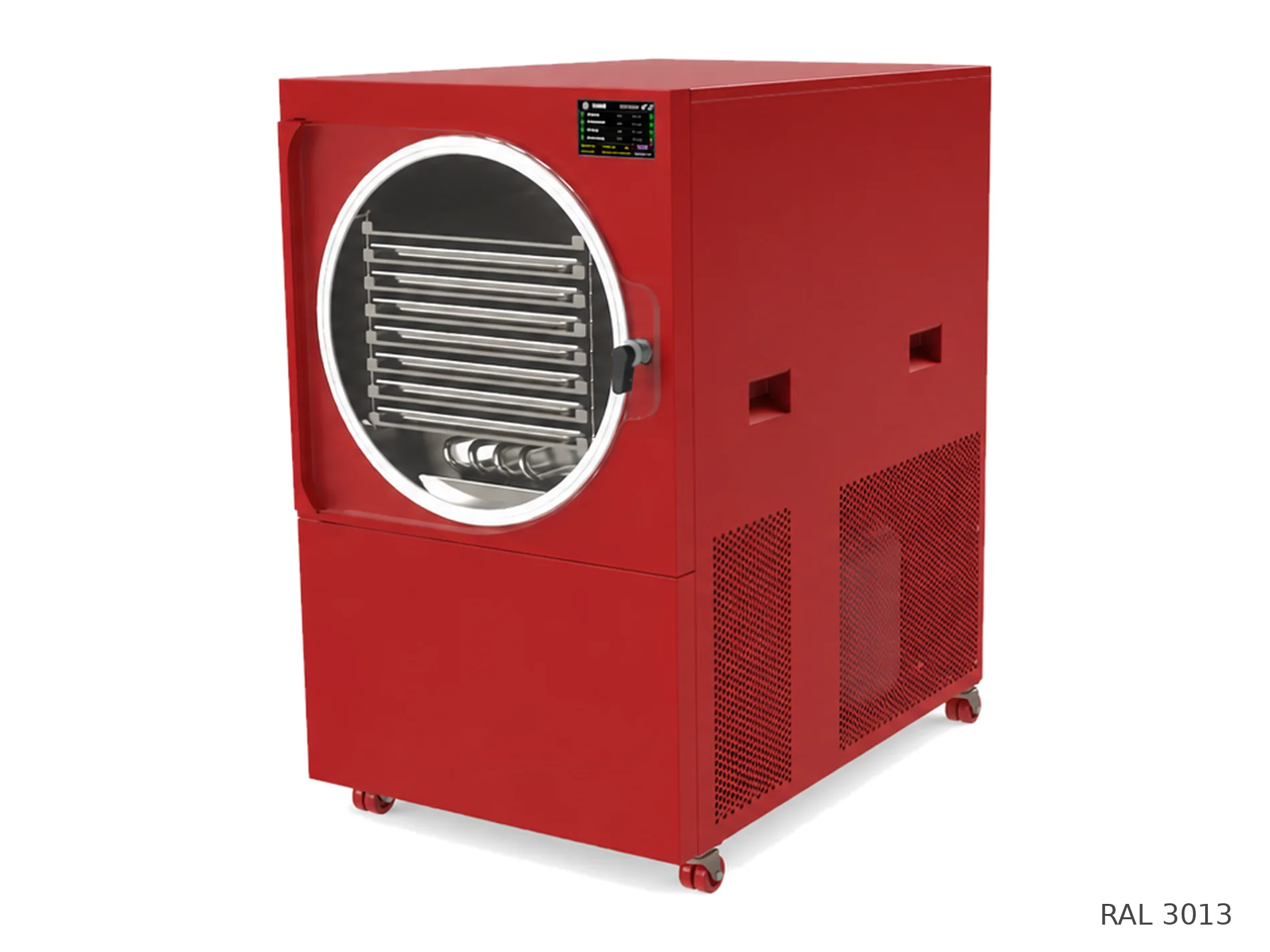

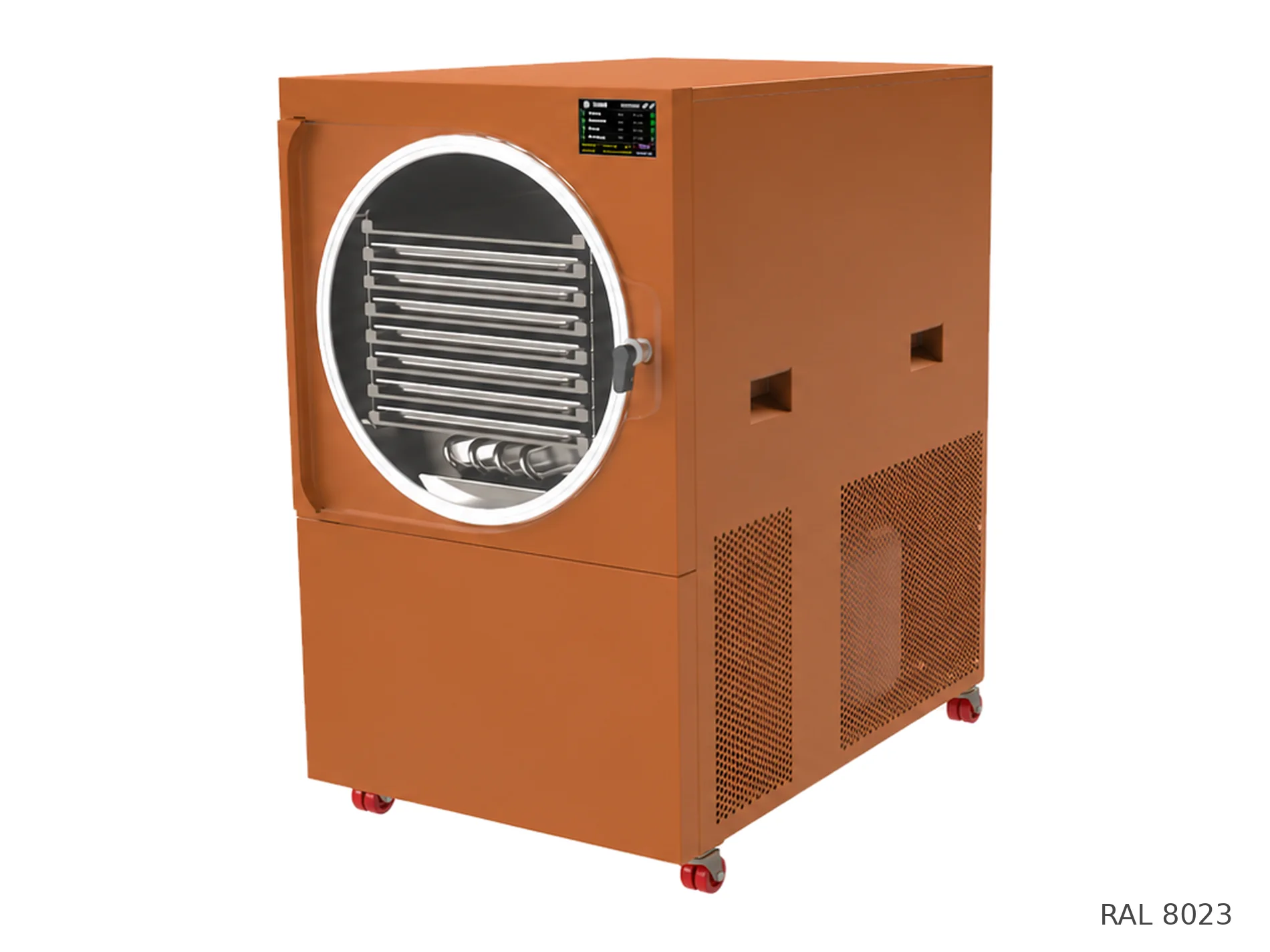

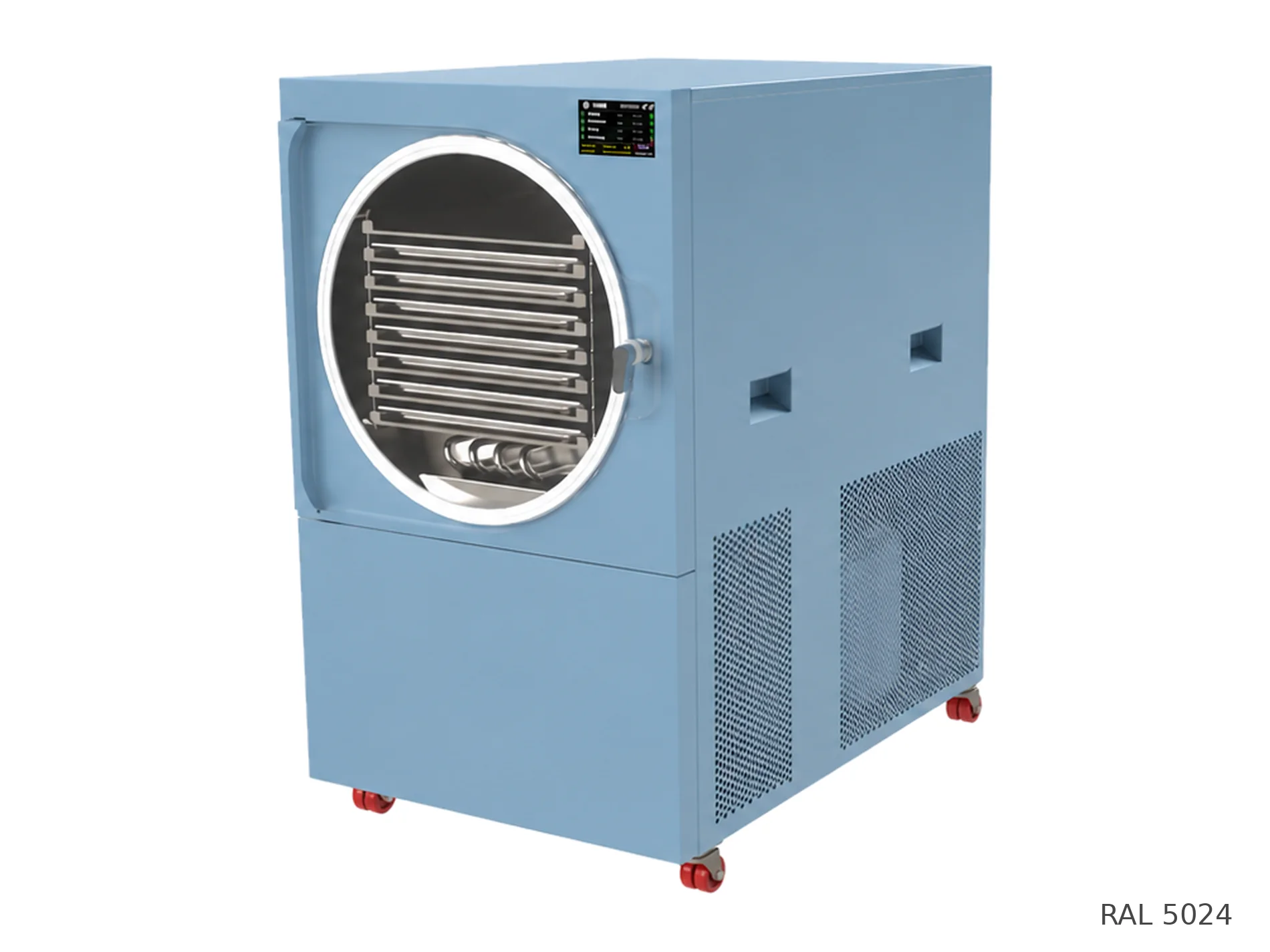

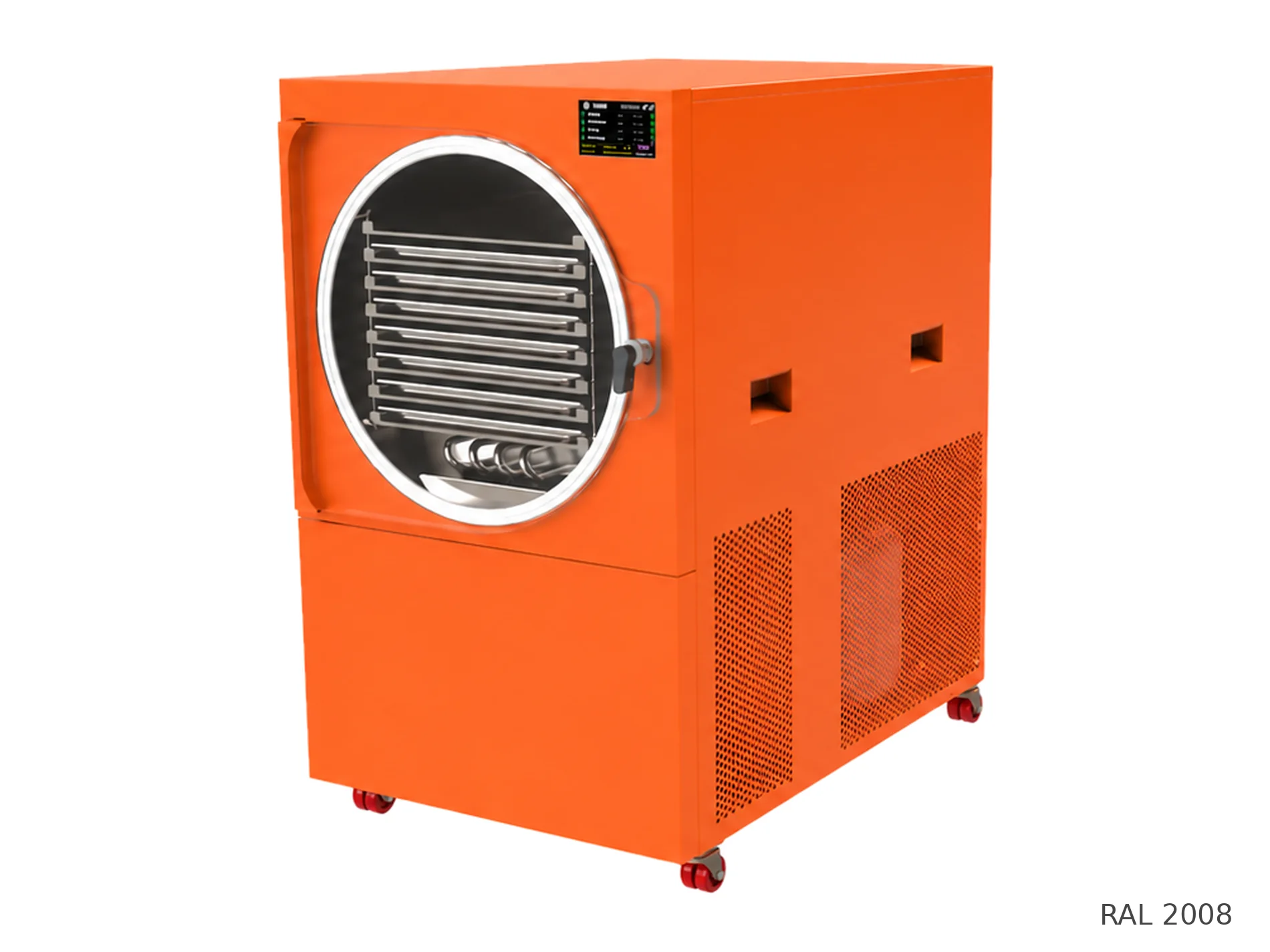

Jet BlackTraffic WhiteStainless SteelOther RAL Color
LEO-010L
Capacity
Up to 15 kg
Shelf area
1.3 m²
Trays
7
Shelf temp
-40 to +70 °C
Condenser
-40 °C
Spec sheet

Engineering data.

Batch capacity (fresh load)
15 kg/batch
Ice condenser capacity
18 kg (total ice)
Total shelf area
1.3 m²
Number of shelves
7 count
Number of trays
7 count
Tray size
GN 1/1, 2 cm
Shelf temperature range
-40 to +70 °C
Min. condenser temperature
-40 °C
Vacuum pump type
Oil-sealed (oil-free option)
Refrigeration type
Air-cooled
Refrigerant
R-452B
Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options

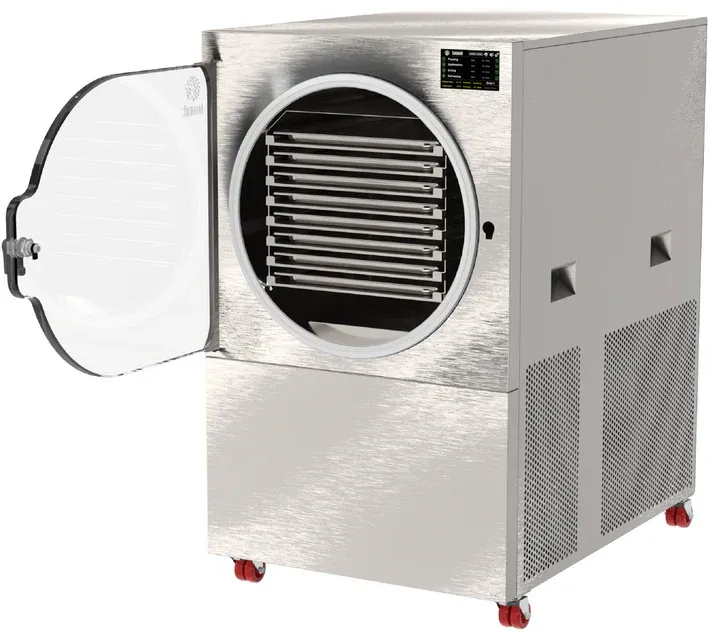

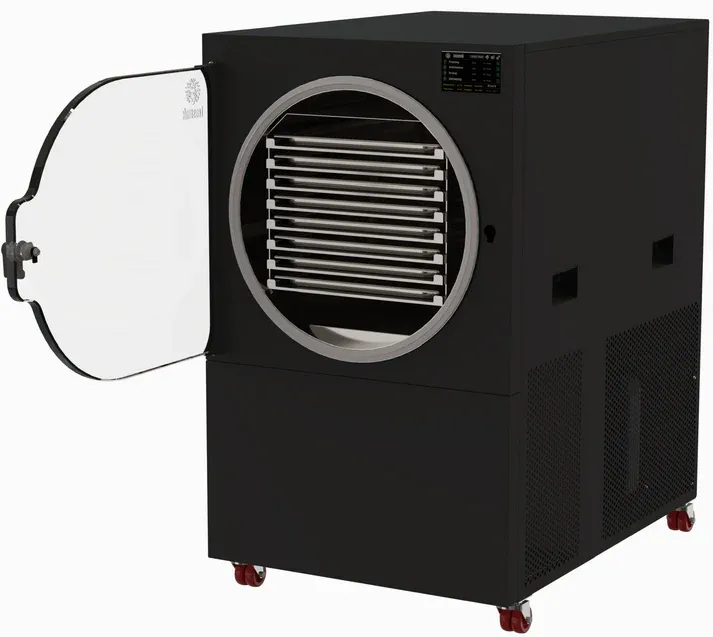

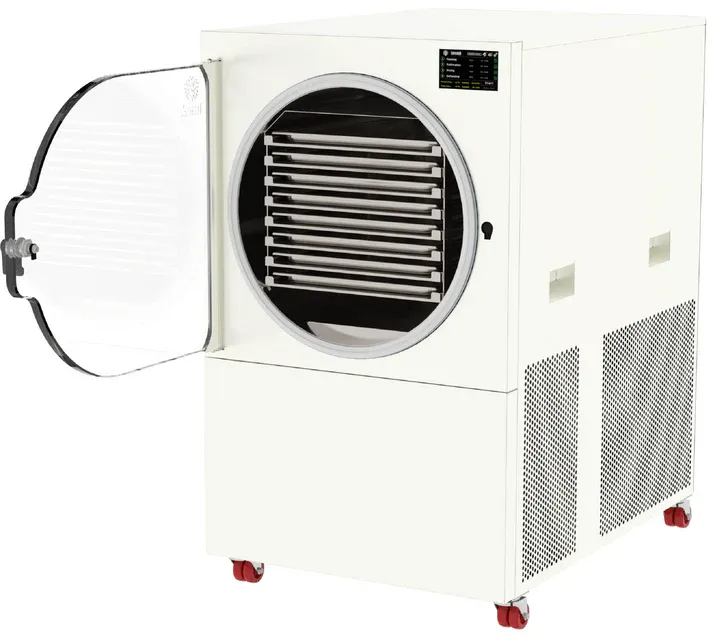

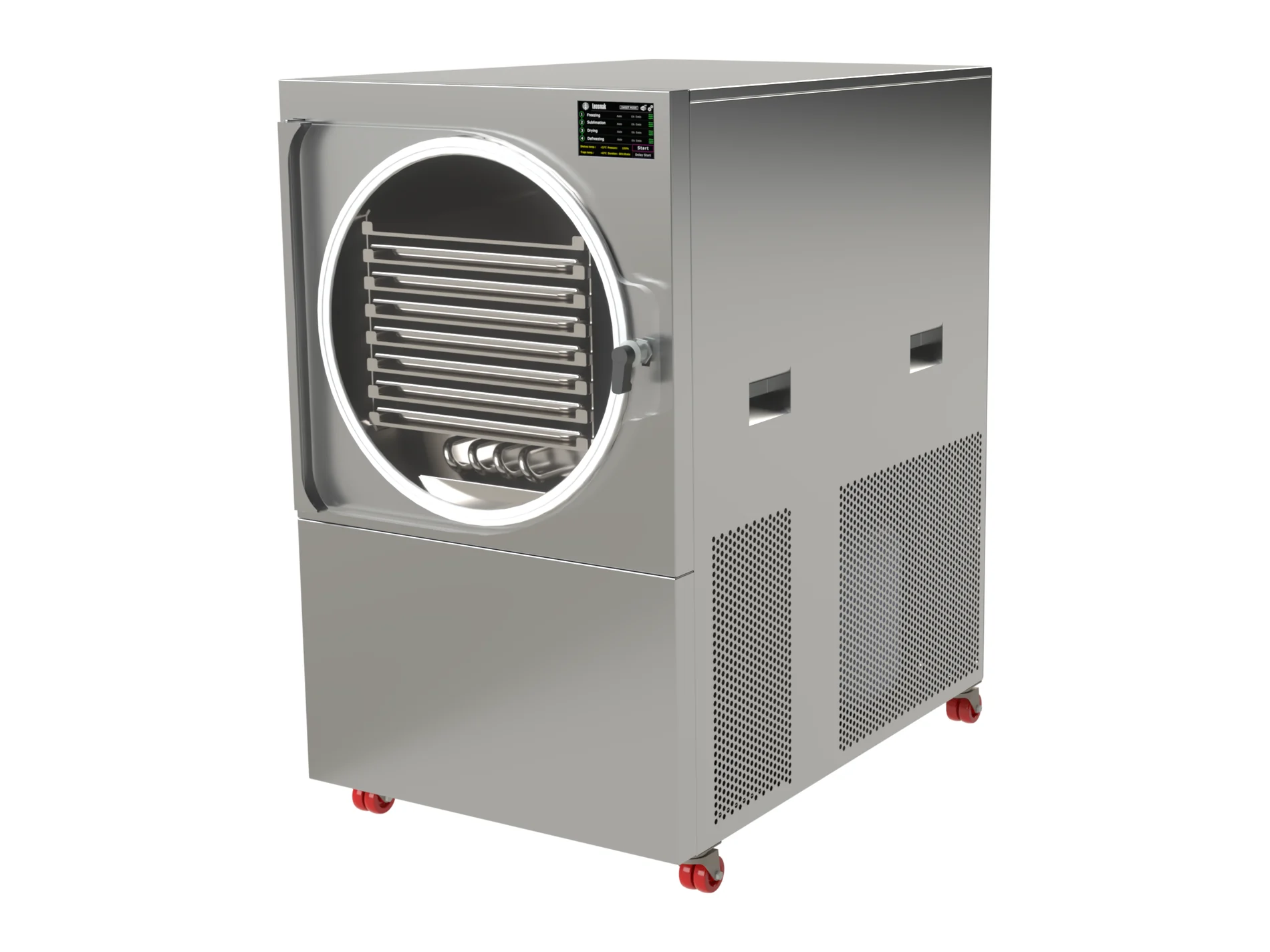

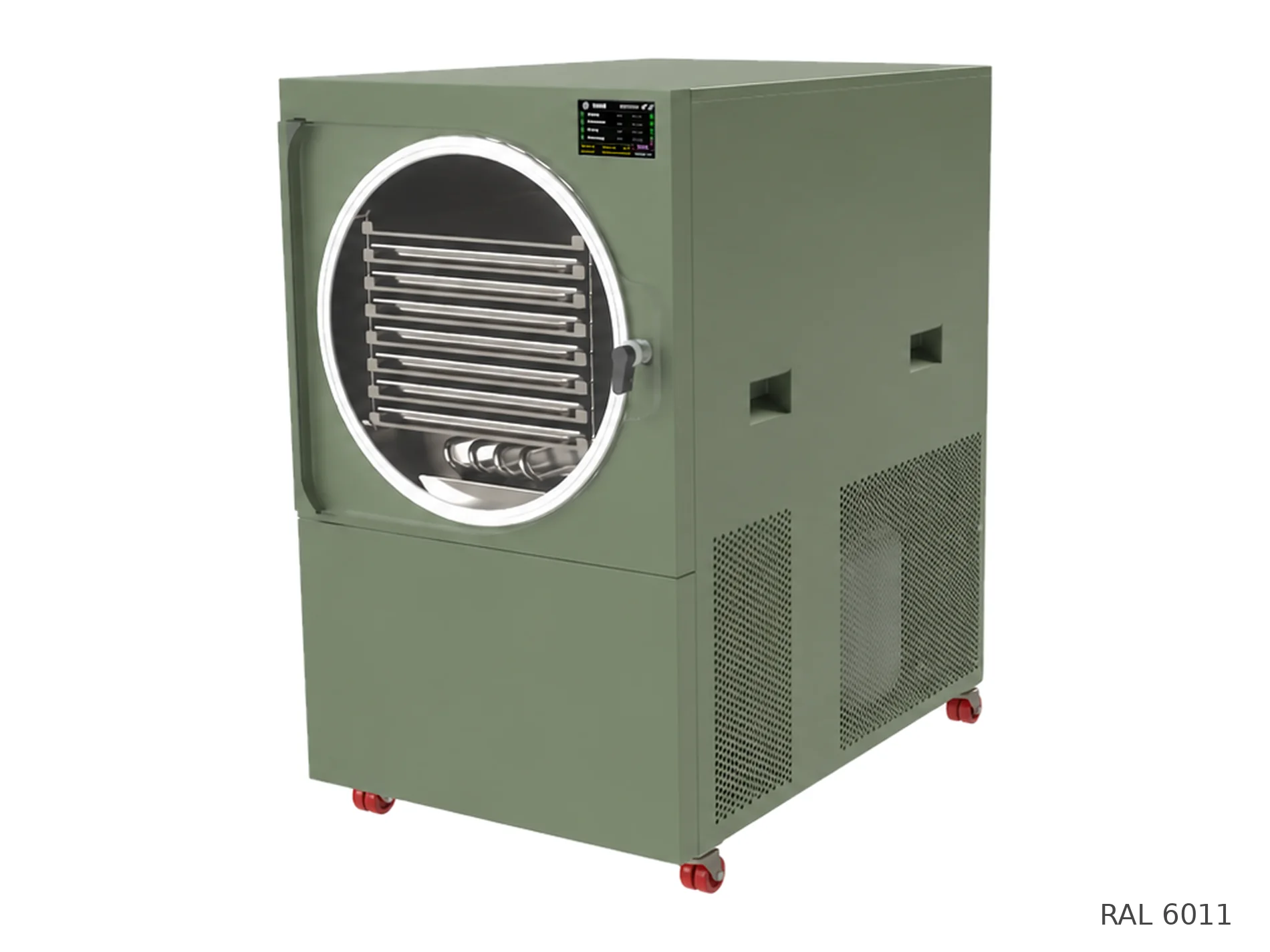

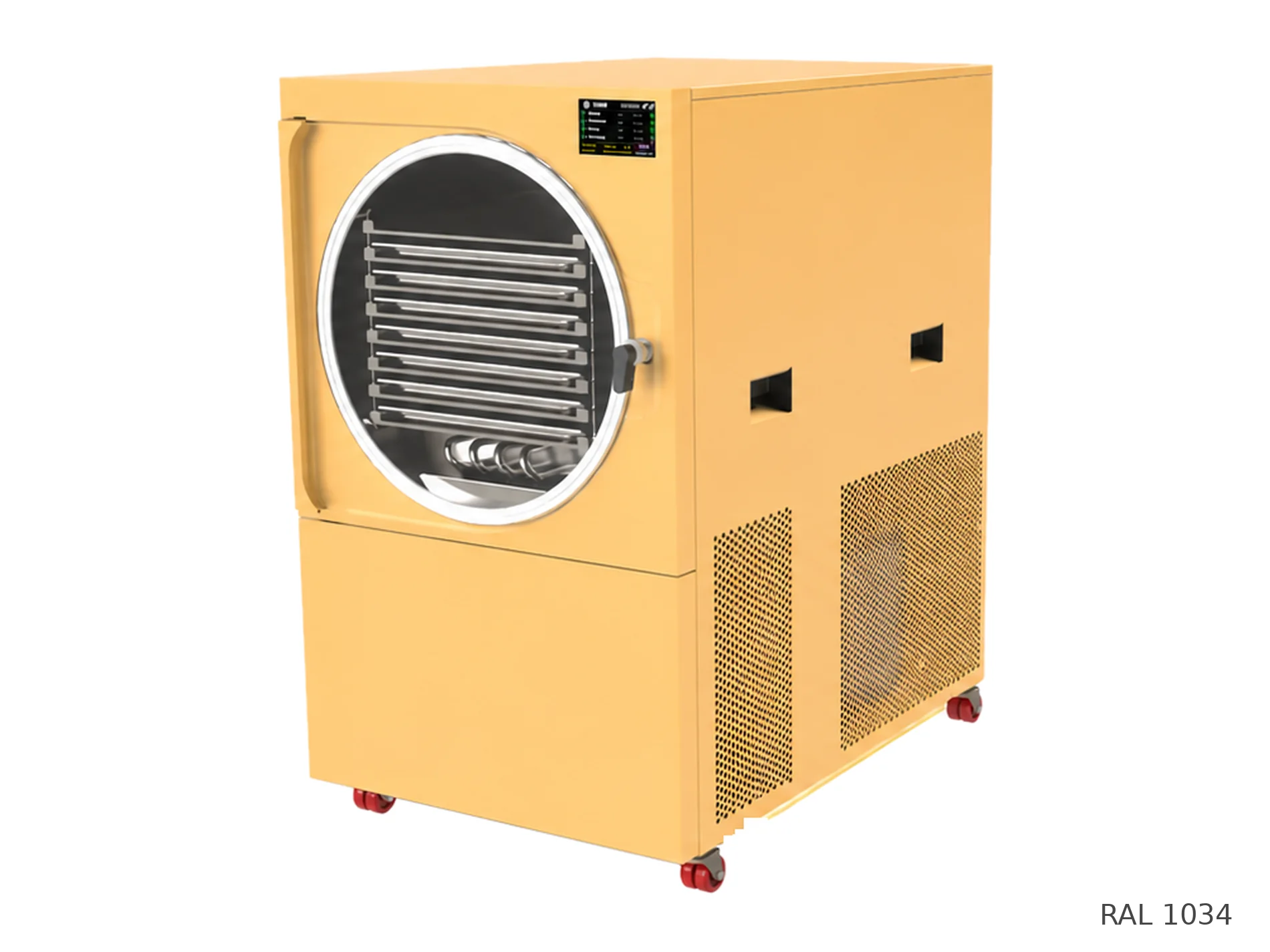

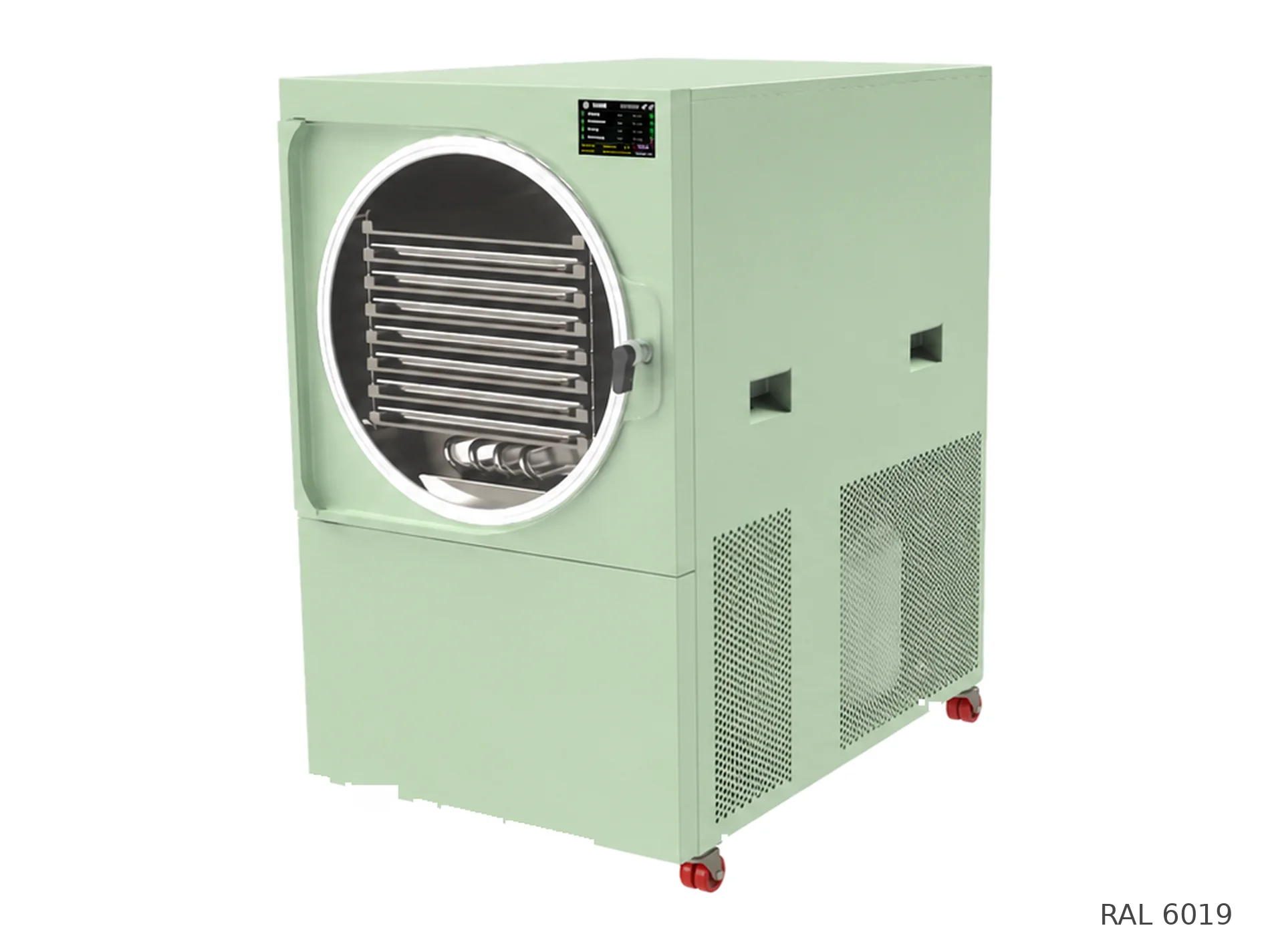

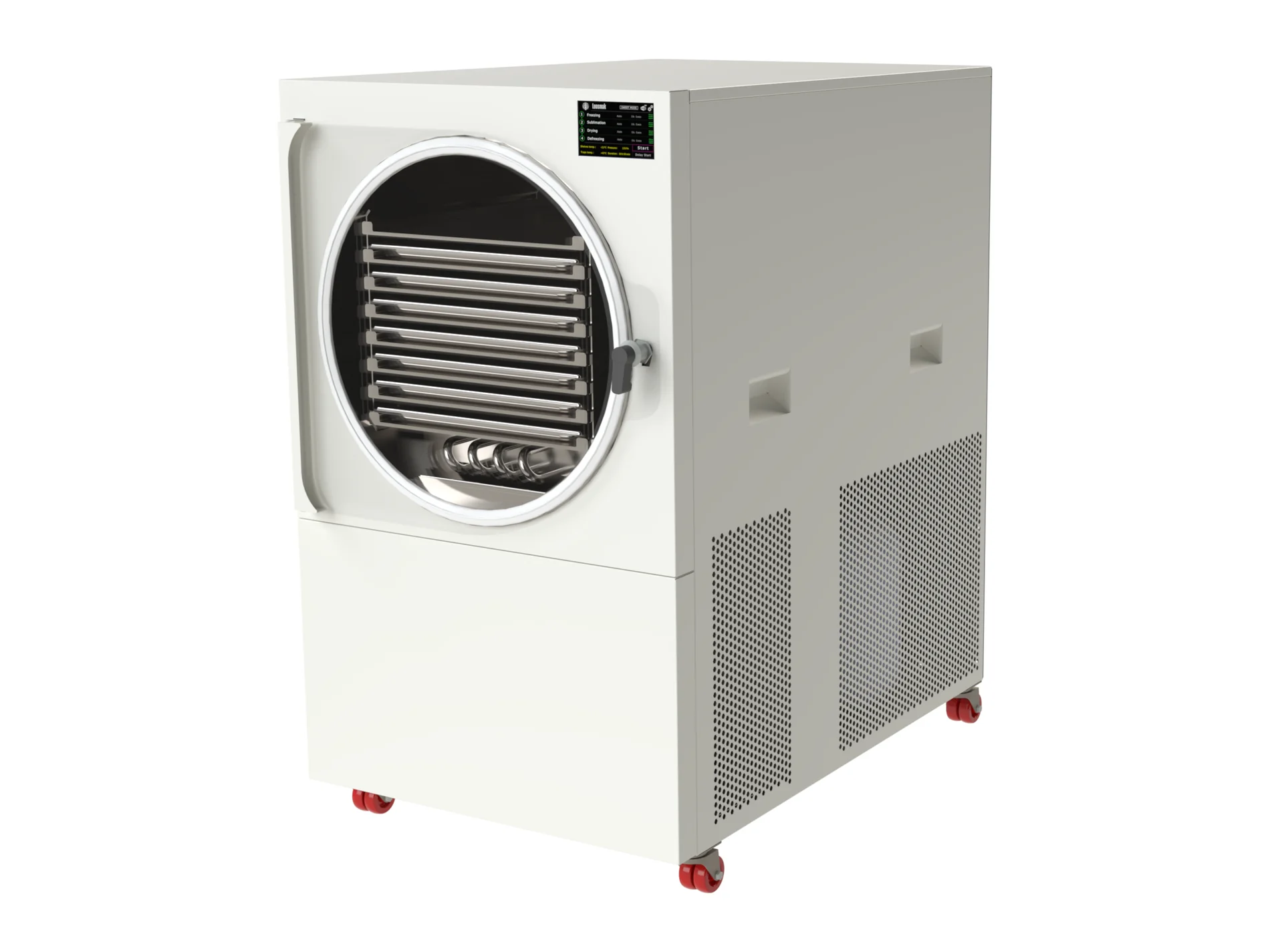

Jet Black, Traffic White, Stainless Steel, Other RAL
Defrosting
Automatic
Control system
LCD touchscreen + Wi-Fi
Data logging & recipes
Wi-Fi app monitoring
Remote monitoring
Yes
External dimensions (W × D × H)
600 × 950 × 1010 mm
Net weight
168 kg
Power supply
220–240 V / 1~ / 50 Hz V / phase / Hz
Connected load
3.5 kW
Warranty
24 months (extendable to 36)
Energy consumption (avg)
1.4 kWh/h
Next step

Get a tailored quote.

Tell us your product and target throughput. An engineer replies within 24 h — with pricing, lead time, and a sizing recommendation.

Configure quote Book a 30-min call
