Home/ Commercial/ LEO-030-D
LEOSMAK· LEO030B· COMMERCIAL

LEO-030-D

Up to 30 kg per batch

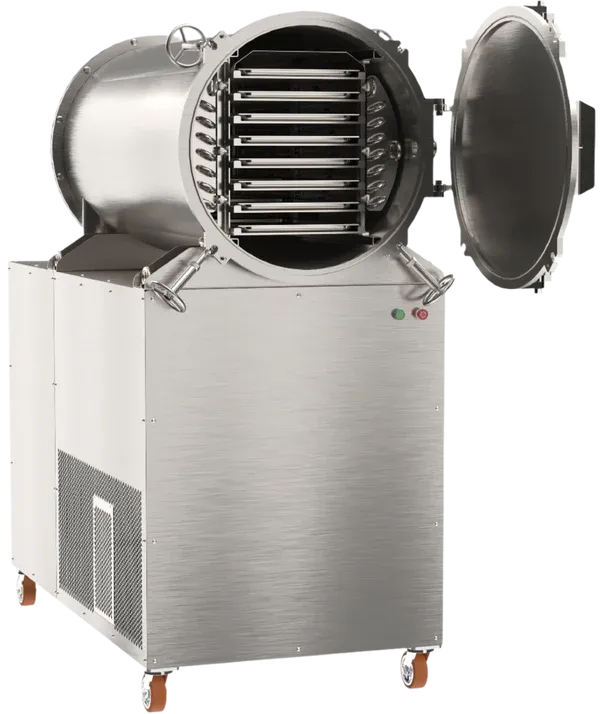

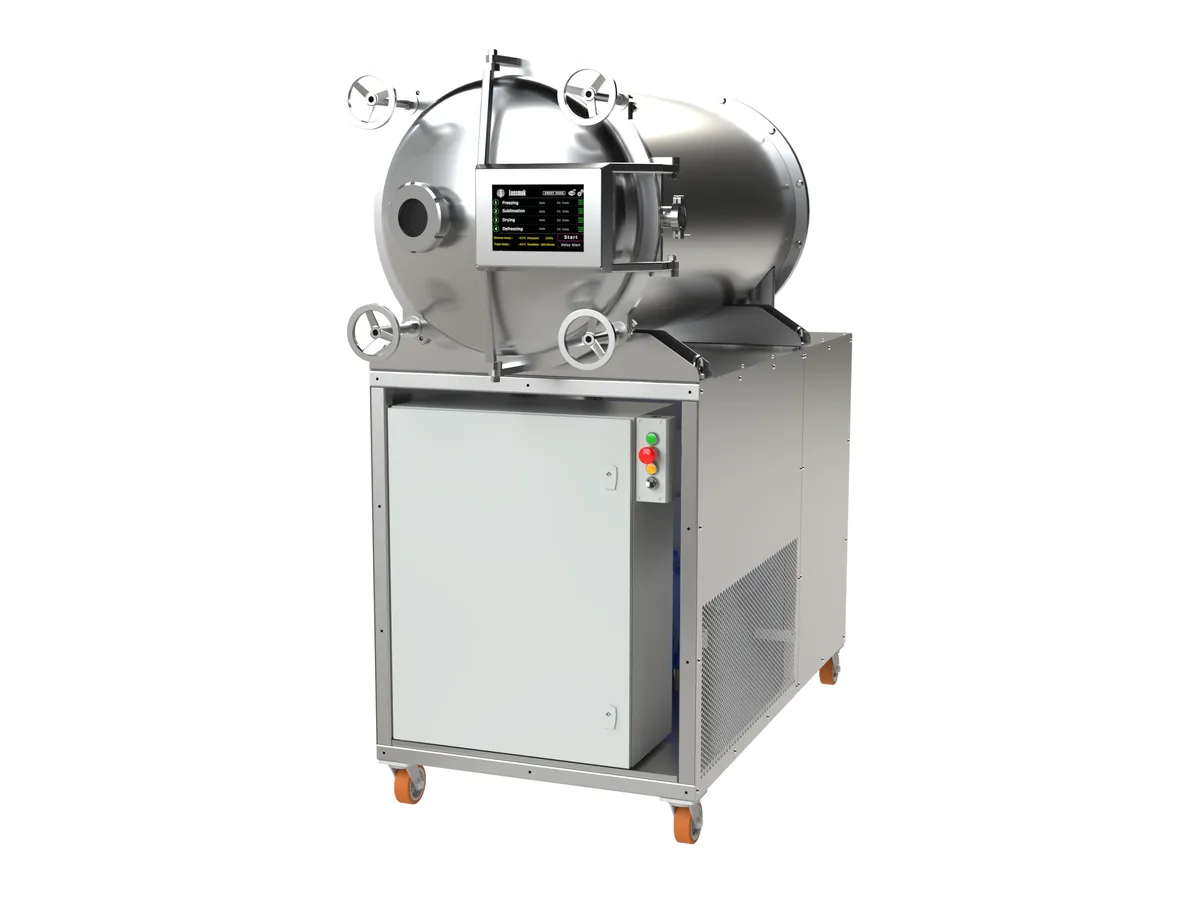

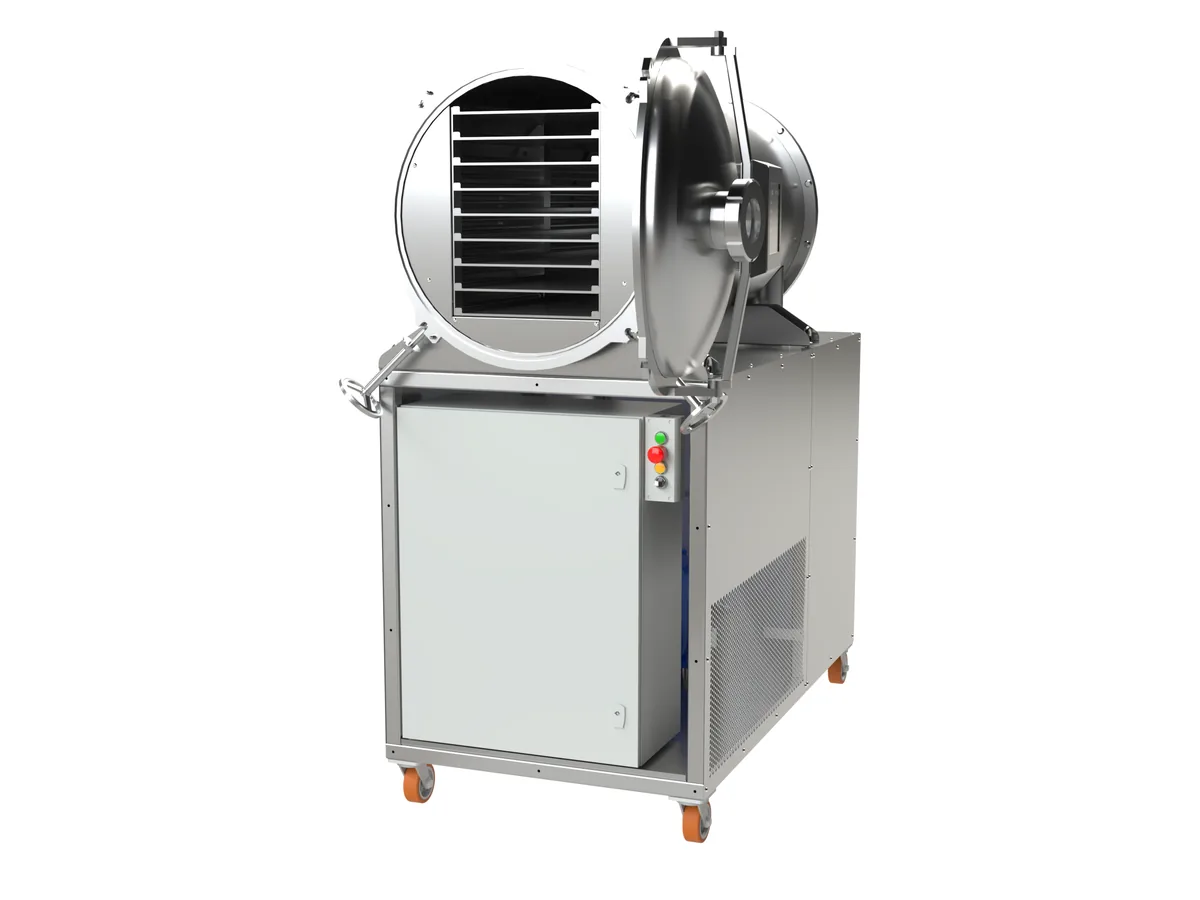

Up to 30 kg per batch capacity. The LEO-030 Industrial Freeze-dryer delivers professional-grade performance with fully automated operation, remote monitoring, and efficient, hygienic stainless steel design.

Indicative list price
€39.480
EX-VAT · CONFIGURATION-DEPENDENT
Configure quote Talk to an engineer →
LEO-030-D
Capacity
Up to 30 kg
Shelf area
3.17 m²
Trays
16
Shelf temp
-45 to +70 °C
Condenser
-45 °C
Spec sheet

Engineering data.

Batch capacity (fresh load)
30 kg/batch
Ice condenser capacity
40 kg (total ice)
Total shelf area
3.17 m²
Number of shelves
8 count
Number of trays
16 count
Tray size
GN 1/1, 2–4 cm
Shelf temperature range
-45 to +70 °C
Min. condenser temperature
-45 °C
Vacuum pump type
Oil-sealed (oil-free option)
Refrigeration type
Air-cooled
Refrigerant
R-448A
Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options
Stainless steel
Defrosting
Automatic
Control system
LCD touchscreen + Wi-Fi
Data logging & recipes
Wi-Fi app monitoring
Remote monitoring
Yes
External dimensions (W × D × H)
800 × 1850 × 1800 mm
Net weight
581 kg
Power supply
380 V / 3~ / 50 Hz (220 V opt.) V / phase / Hz
Connected load
7.5 kW
Warranty
24 months (extendable to 36)
Energy consumption (avg)
2.4 kWh/h
