Home/ Compact/ LEO-010
LEOSMAK· LEO010· COMPACT

LEO-010

Up to 10 kg per batch

Up to 10 kg per batch capacity. The LEO-010 Compact Freeze Dryer delivers small-batch performance with intuitive controls, remote monitoring, and durable stainless steel construction.

Indicative list price
€13.480
EX-VAT · CONFIGURATION-DEPENDENT
Configure quote Talk to an engineer →
Available configurations

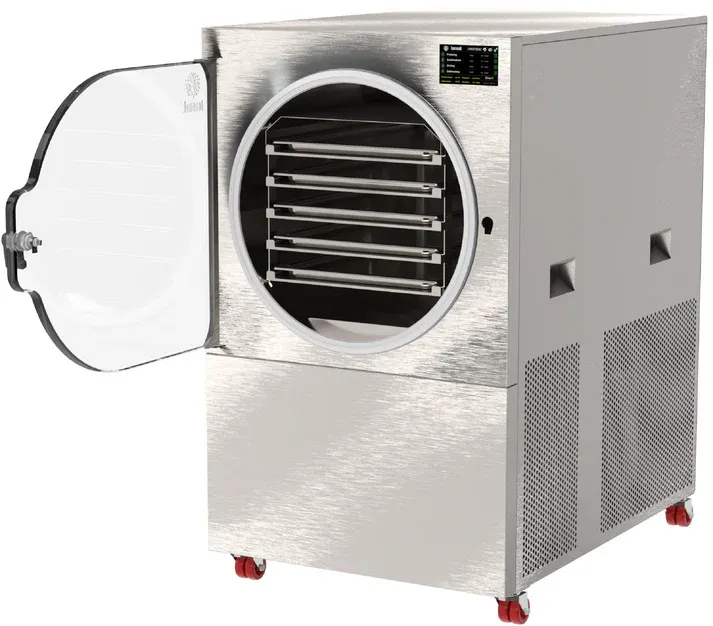

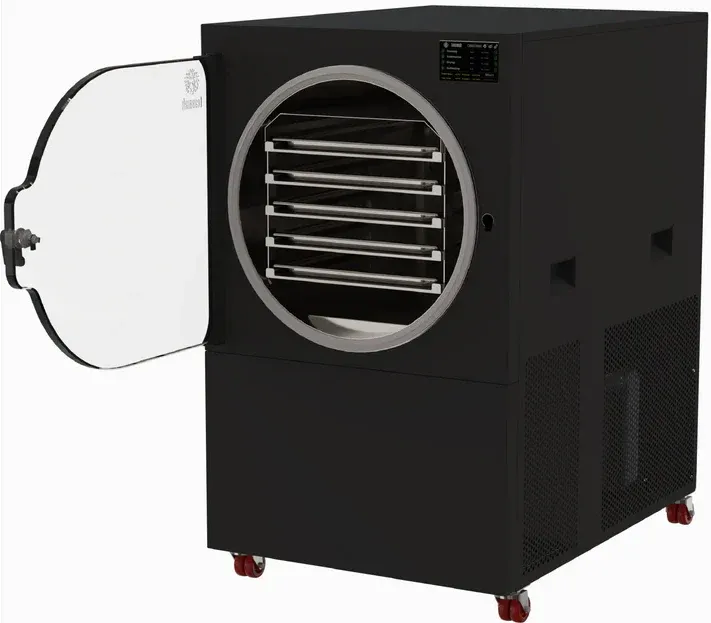

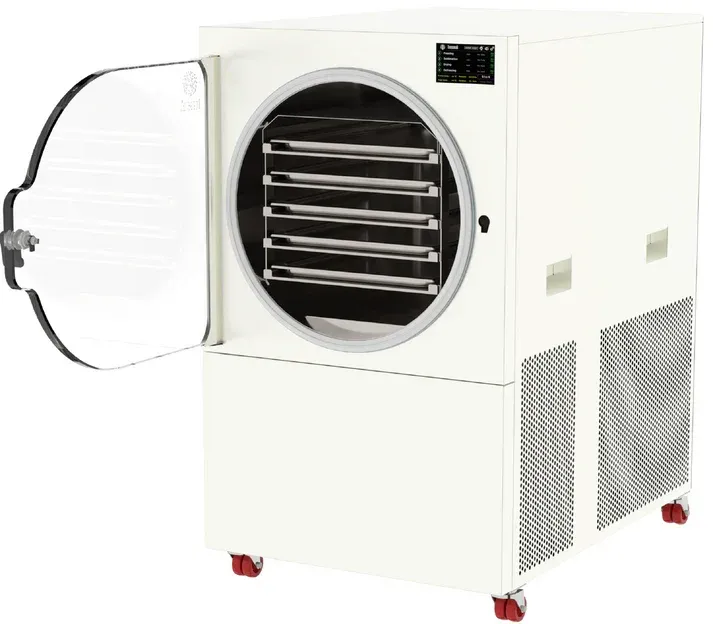

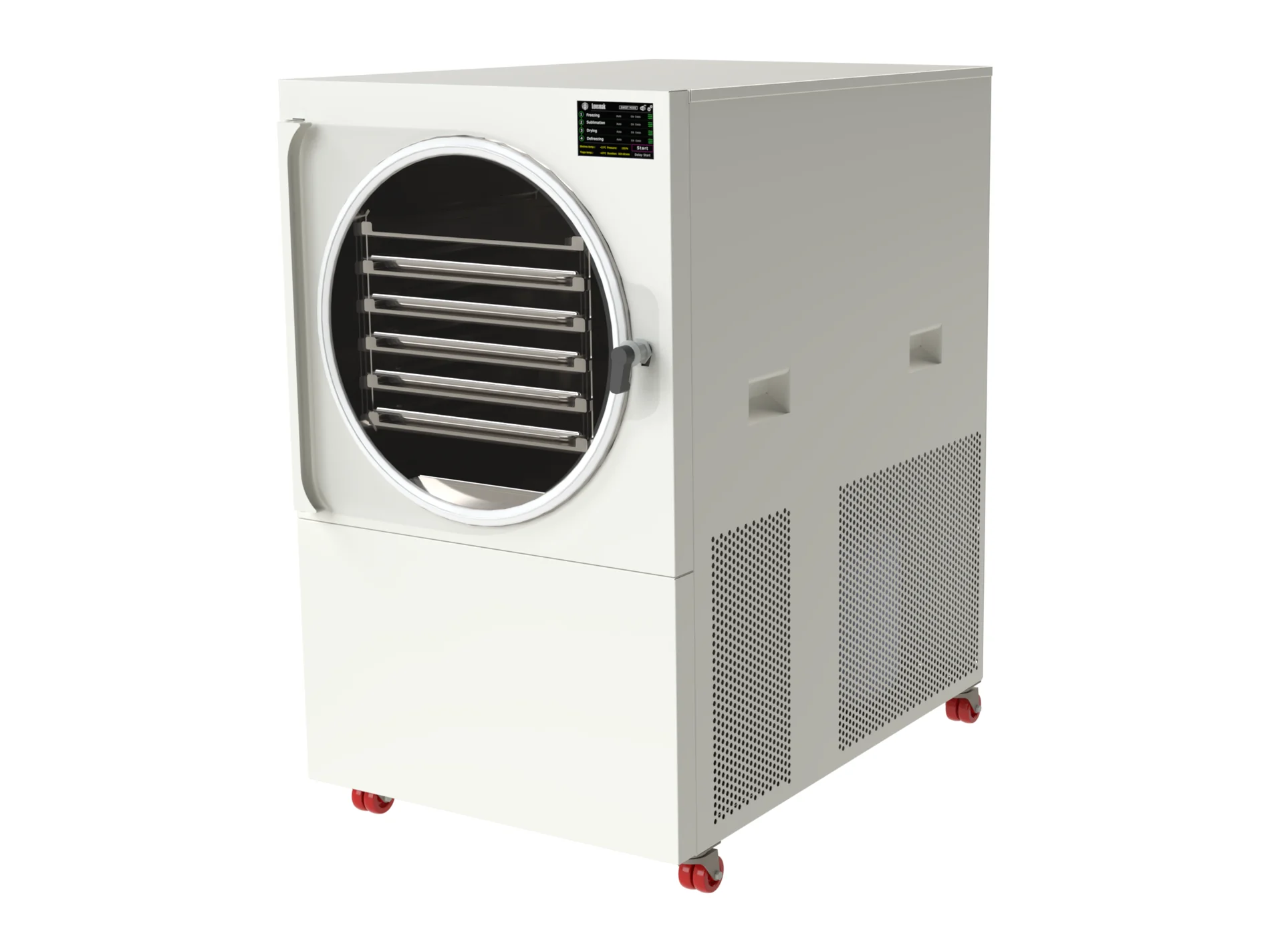

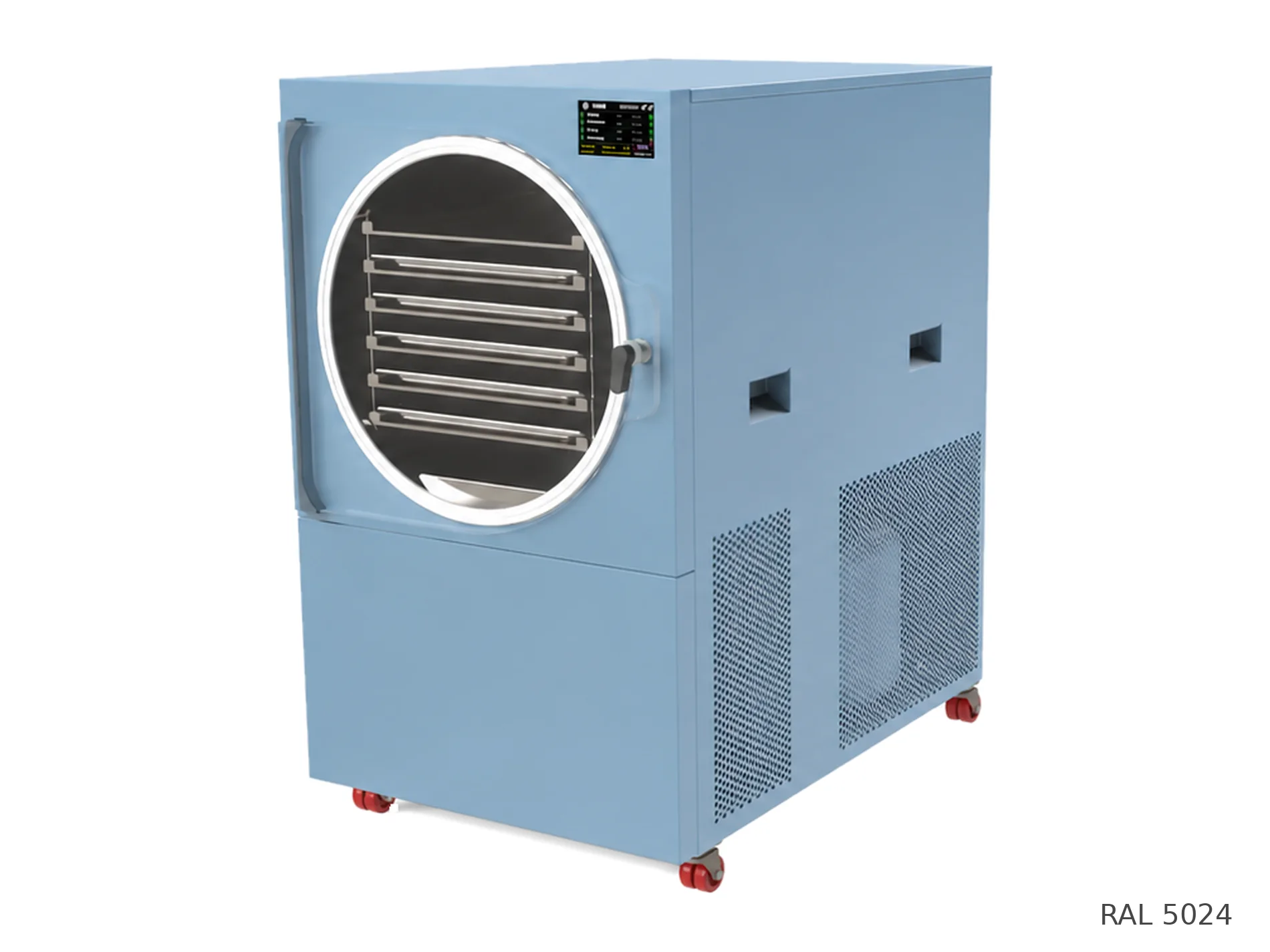

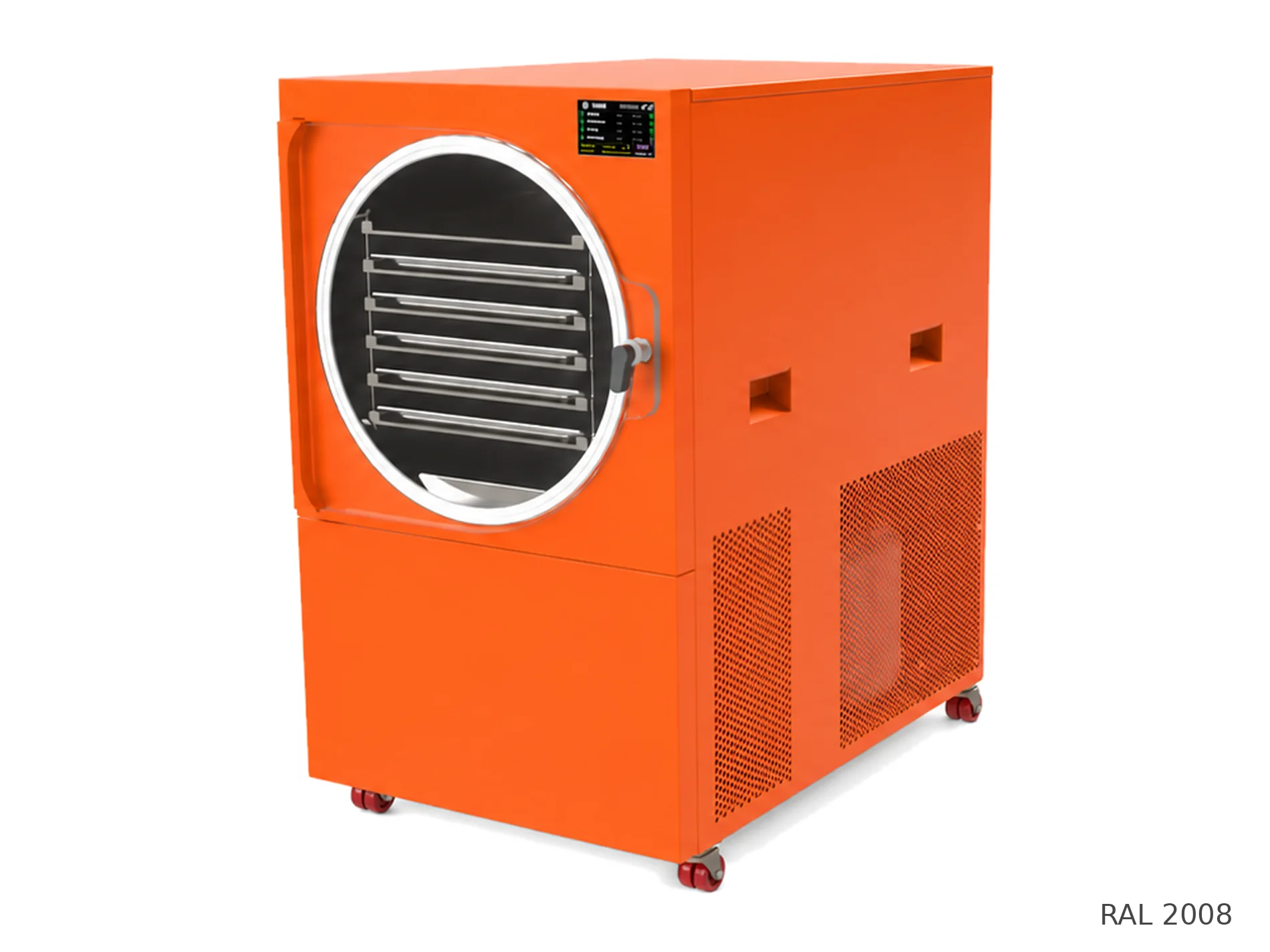

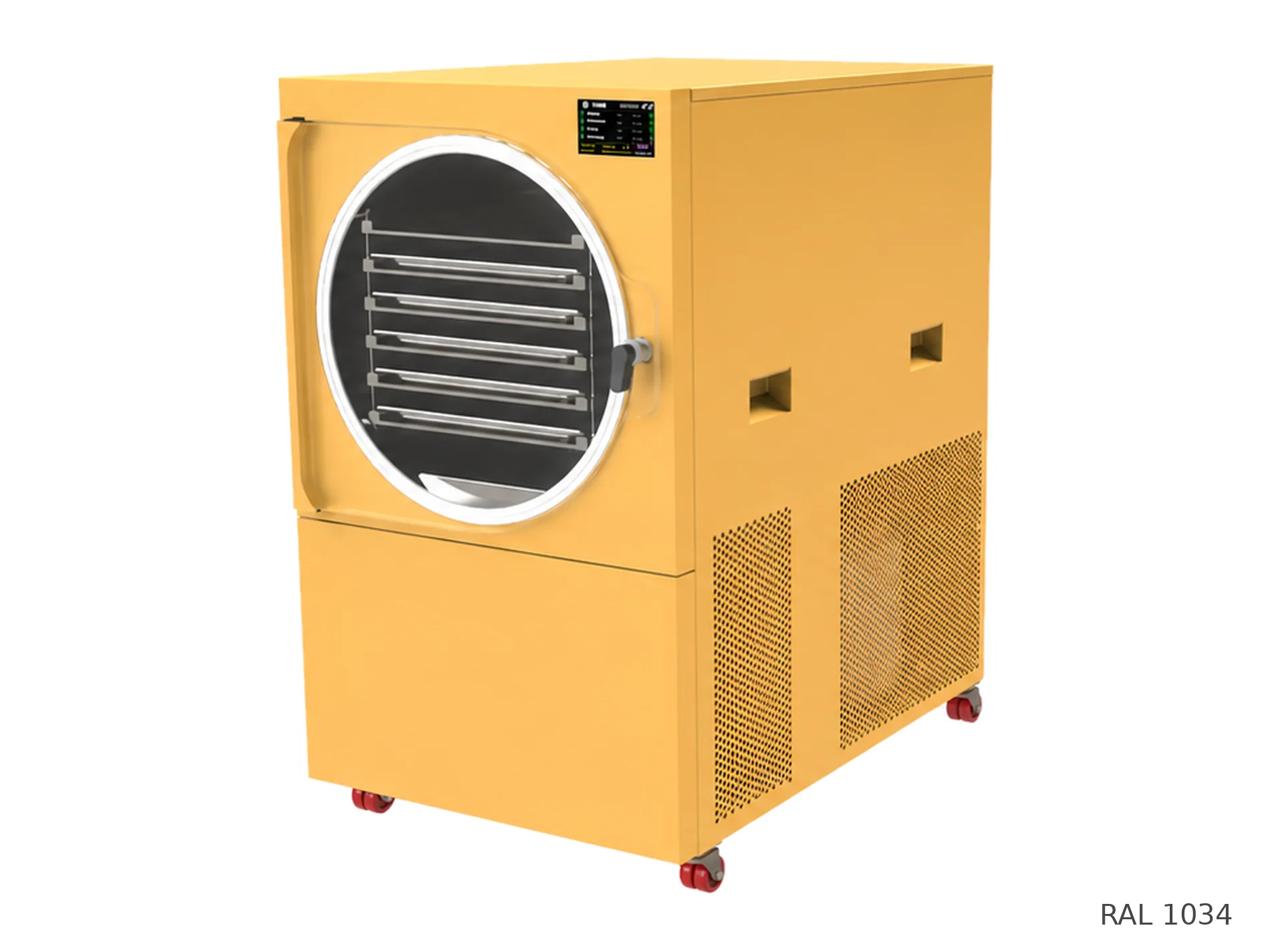

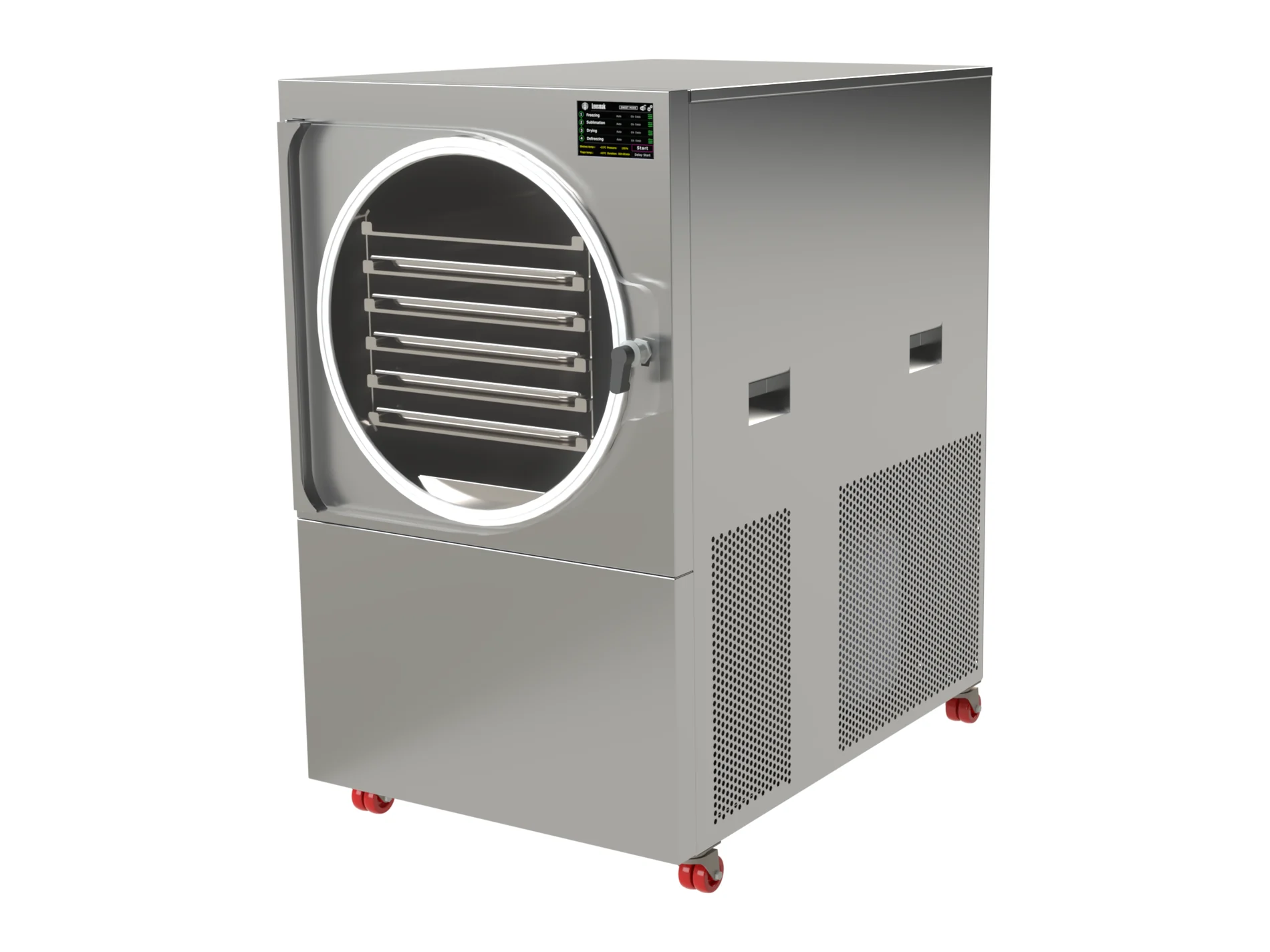

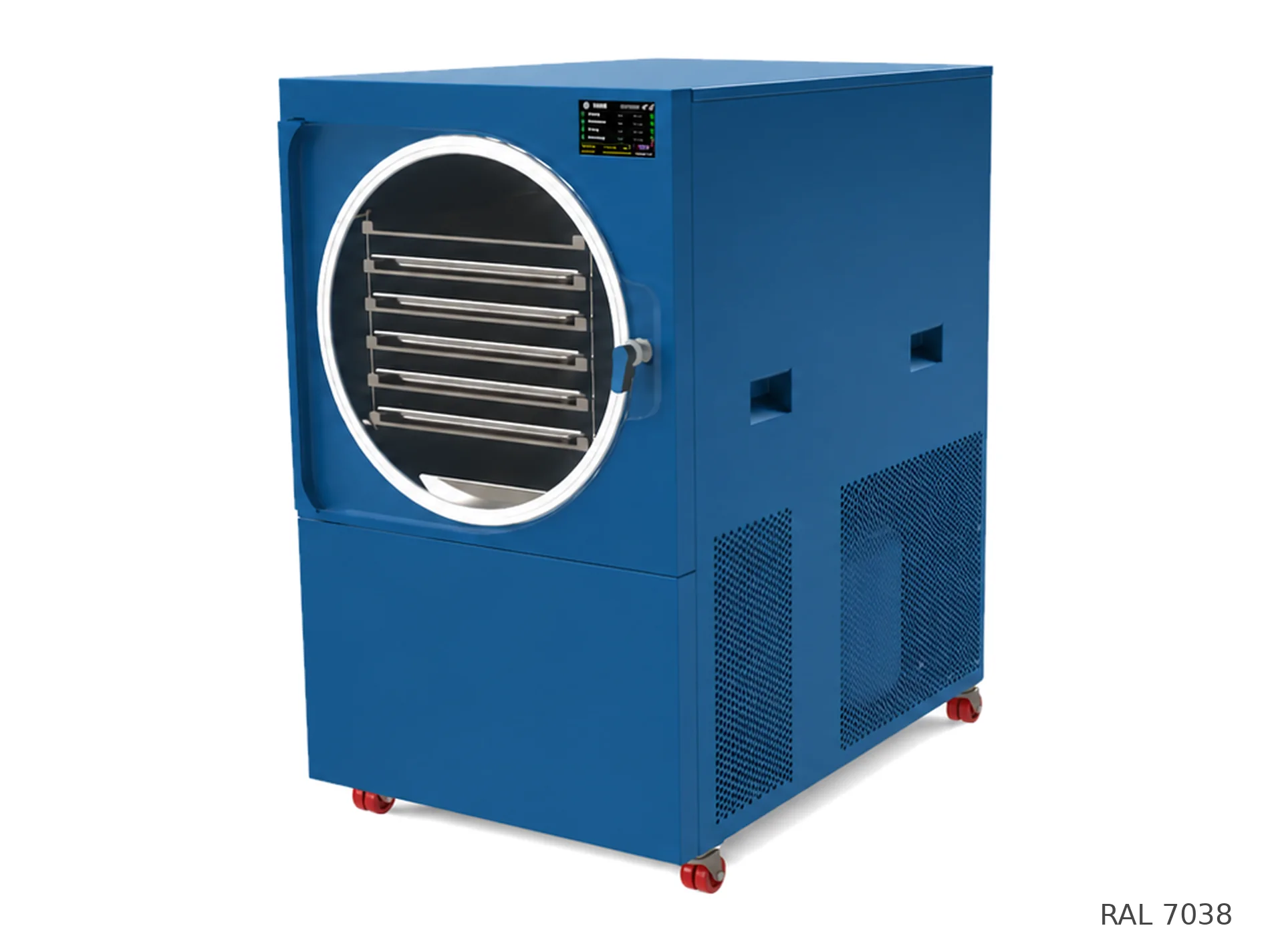

Jet BlackTraffic WhiteStainless SteelOther RAL Color
LEO-010
Capacity
Up to 10 kg
Shelf area
0.93 m²
Trays
5
Shelf temp
-40 to +70 °C
Condenser
-40 °C
Spec sheet

Engineering data.

Batch capacity (fresh load)
10 kg/batch
Ice condenser capacity
15 kg (total ice)
Total shelf area
0.93 m²
Number of shelves
5 count
Number of trays
5 count
Tray size
GN 1/1, 2–4 cm
Shelf temperature range
-40 to +70 °C
Min. condenser temperature
-40 °C
Vacuum pump type
Oil-sealed (oil-free option)
Refrigeration type
Air-cooled
Refrigerant
R-452B
Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options

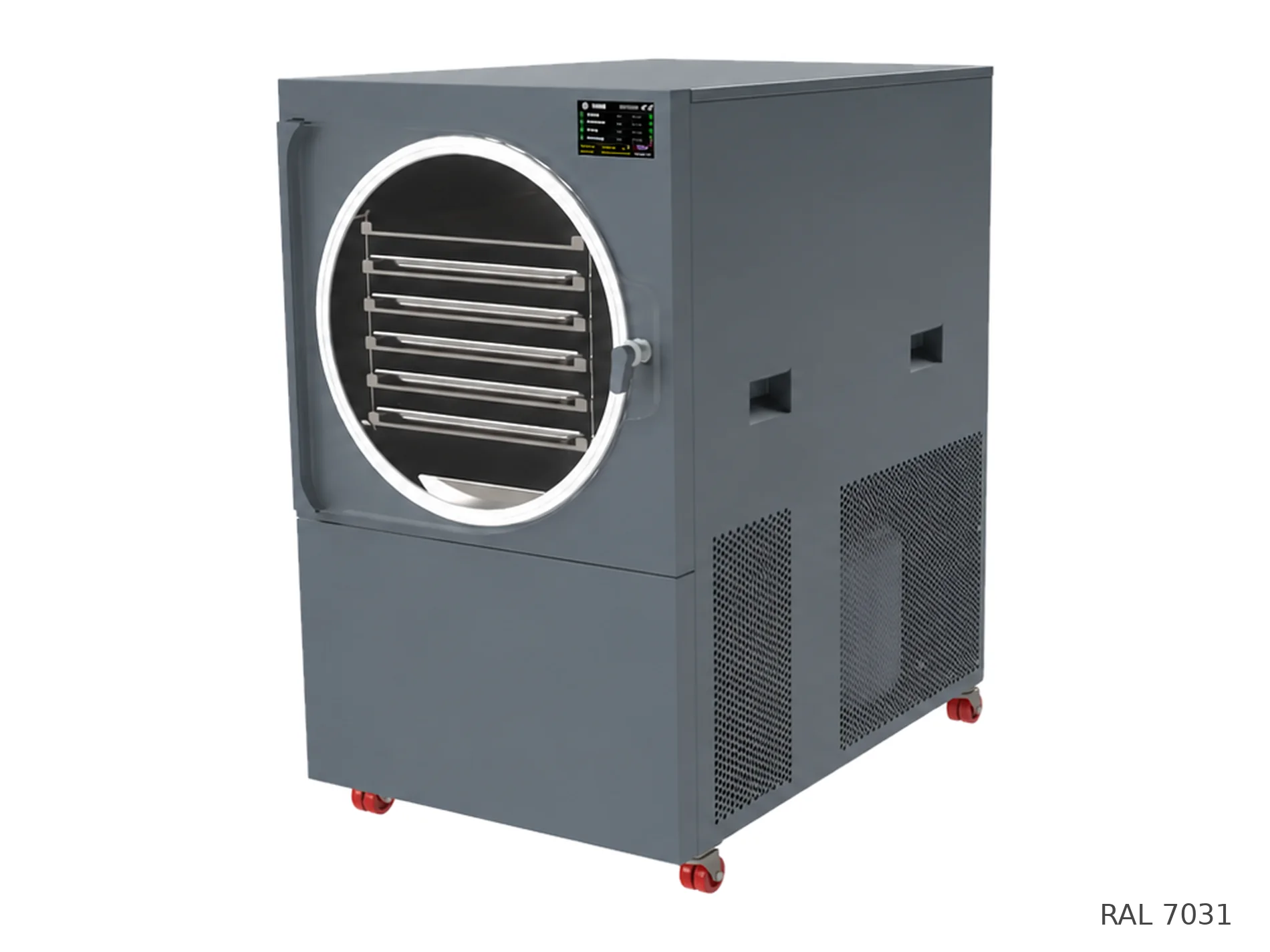

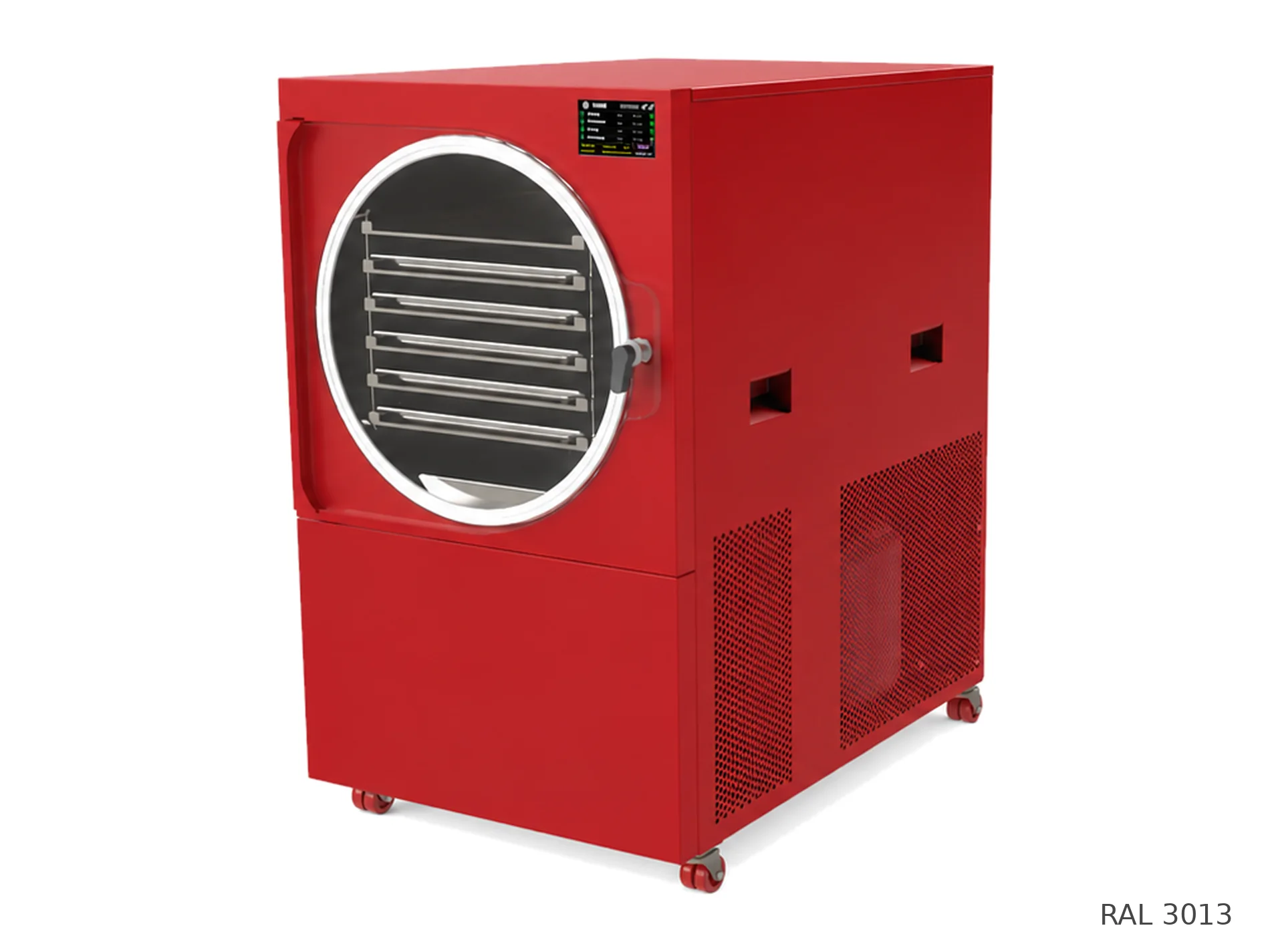

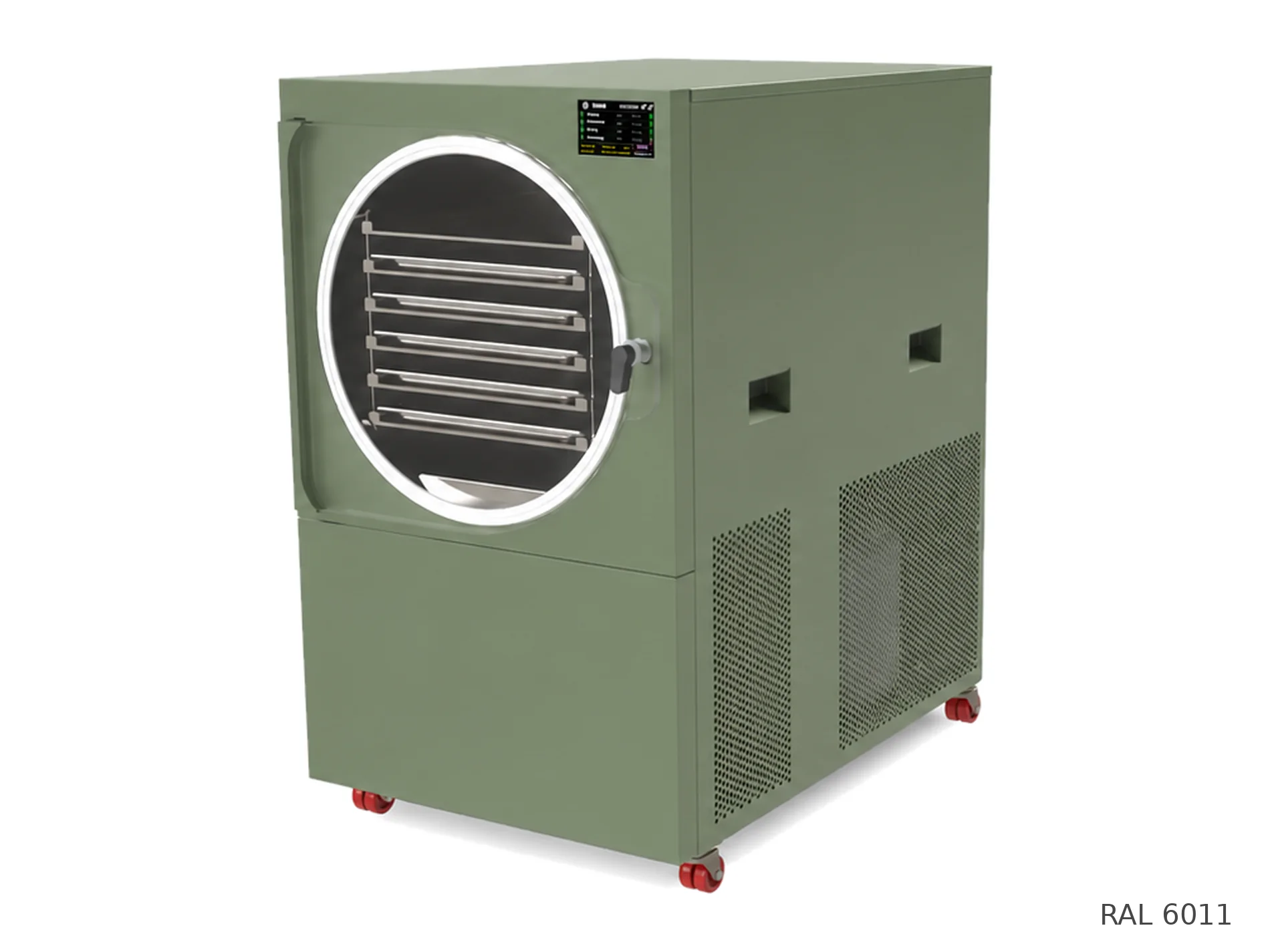

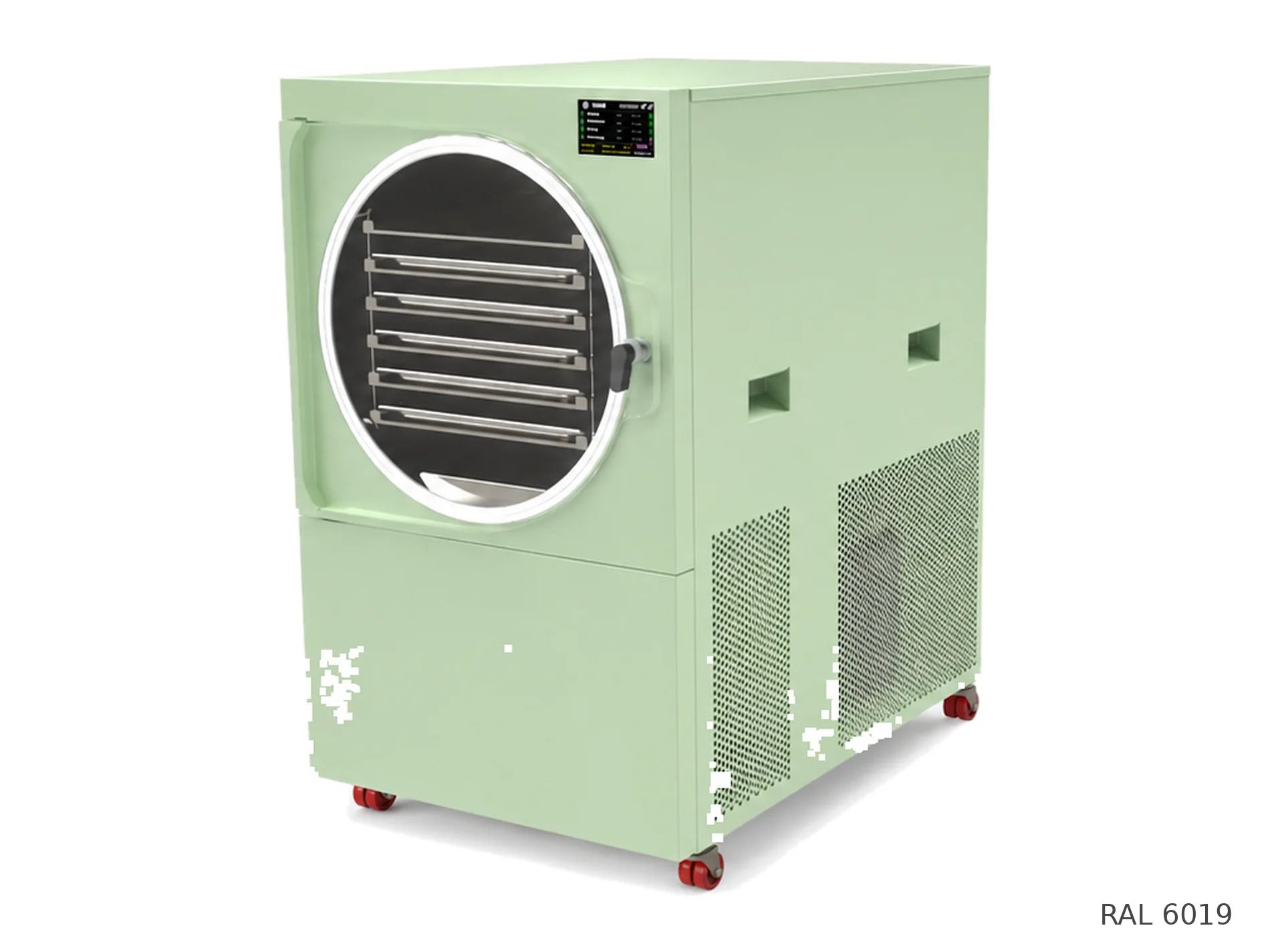

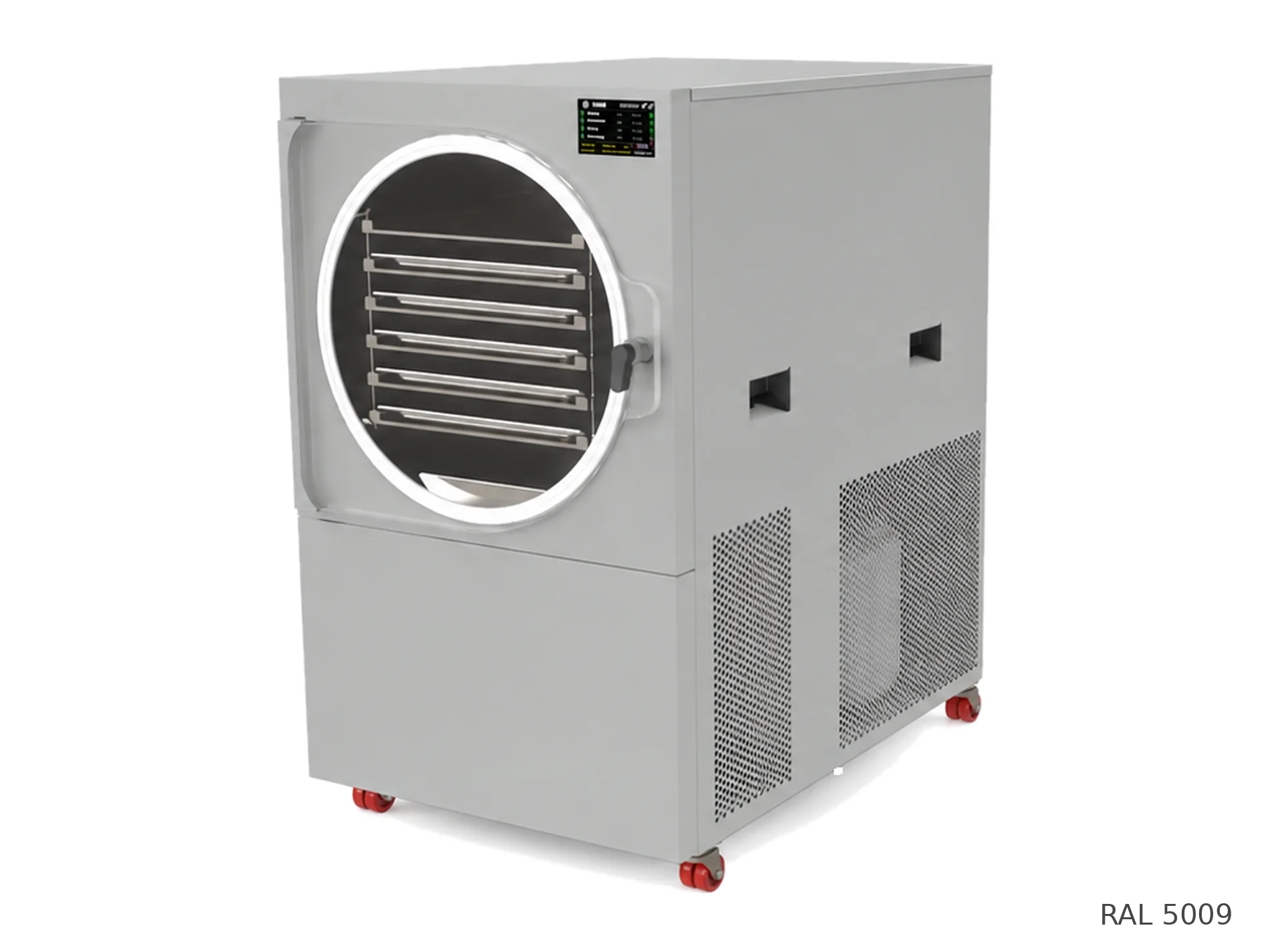

Jet Black, Traffic White, Stainless Steel, Other RAL
Defrosting
Automatic
Control system
LCD touchscreen + Wi-Fi
Data logging & recipes
Wi-Fi app monitoring
Remote monitoring
Yes
External dimensions (W × D × H)
600 × 950 × 1010 mm
Net weight
156 kg
Power supply
220–240 V / 1~ / 50 Hz V / phase / Hz
Connected load
3.5 kW
Warranty
24 months (extendable to 36)
Energy consumption (avg)
1.4 kWh/h
Next step

Get a tailored quote.

Tell us your product and target throughput. An engineer replies within 24 h — with pricing, lead time, and a sizing recommendation.

Configure quote Book a 30-min call
