Home/ Light commercial/ LIO 280
EXEAT· EXLIO280· LIGHT COMMERCIAL

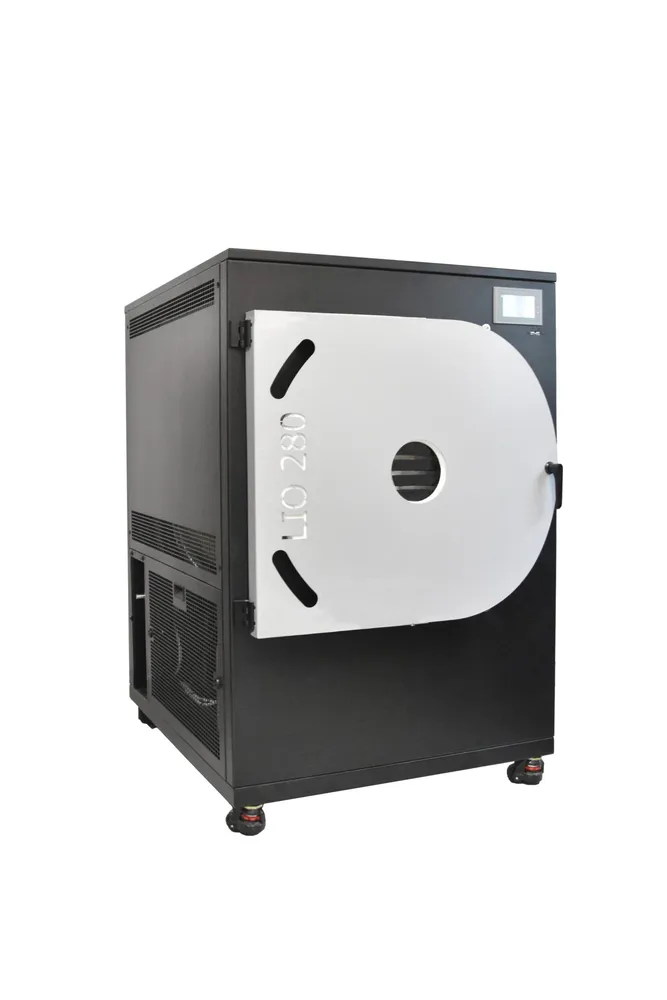

LIO 280

Up to 24 kg per batch

Up to 24 kg per day, deep vacuum, touchscreen control, European-built, CE certified. Industrial freeze dryer for high-volume production.

Indicative list price
€15.950
EX-VAT · CONFIGURATION-DEPENDENT
Configure quote Talk to an engineer →
Available configurations
LIO 280 (7 trays)LIO 280 L (11 trays)LIO 280 L with oil-free pump (11 trays)LIO 280 Pro (11 trays)LIO 280 Pro with oil-free pump (11 trays)LIO 280 with oil-free pump (7 trays)
LIO 280
Capacity
Up to 24 kg
Shelf area
2.8 m²
Trays
8
Shelf temp
-35 to +60 (recipe) °C
Condenser
-43 °C
Spec sheet

Engineering data.

Batch capacity (fresh load)
24 kg/batch
Ice condenser capacity
48 kg (total ice)
Total shelf area
2.8 m²
Number of shelves
8 count
Number of trays
8 count
Tray size
39 × 91 cm
Shelf temperature range
-35 to +60 (recipe) °C
Min. condenser temperature
-43 °C
Vacuum pump type
Oil-sealed (oil-free scroll option)
Refrigeration type
Air-cooled
Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options
Black
Defrosting
Manual (heated)
Control system
PLC touchscreen
Data logging & recipes
USB CSV export + recipes
Remote monitoring
No
External dimensions (W × D × H)
850 × 1050 × 1275 mm
Net weight
340 kg
Power supply
400 V / 3~ / 50 Hz V / phase / Hz
Connected load
4.24 kW
Warranty
1 year + 8-year spares
Energy consumption (avg)
3.59 kWh/h
Next step

Get a tailored quote.

Tell us your product and target throughput. An engineer replies within 24 h — with pricing, lead time, and a sizing recommendation.

Configure quote Book a 30-min call
