LYOTRADE· AMARU5· COMPACT

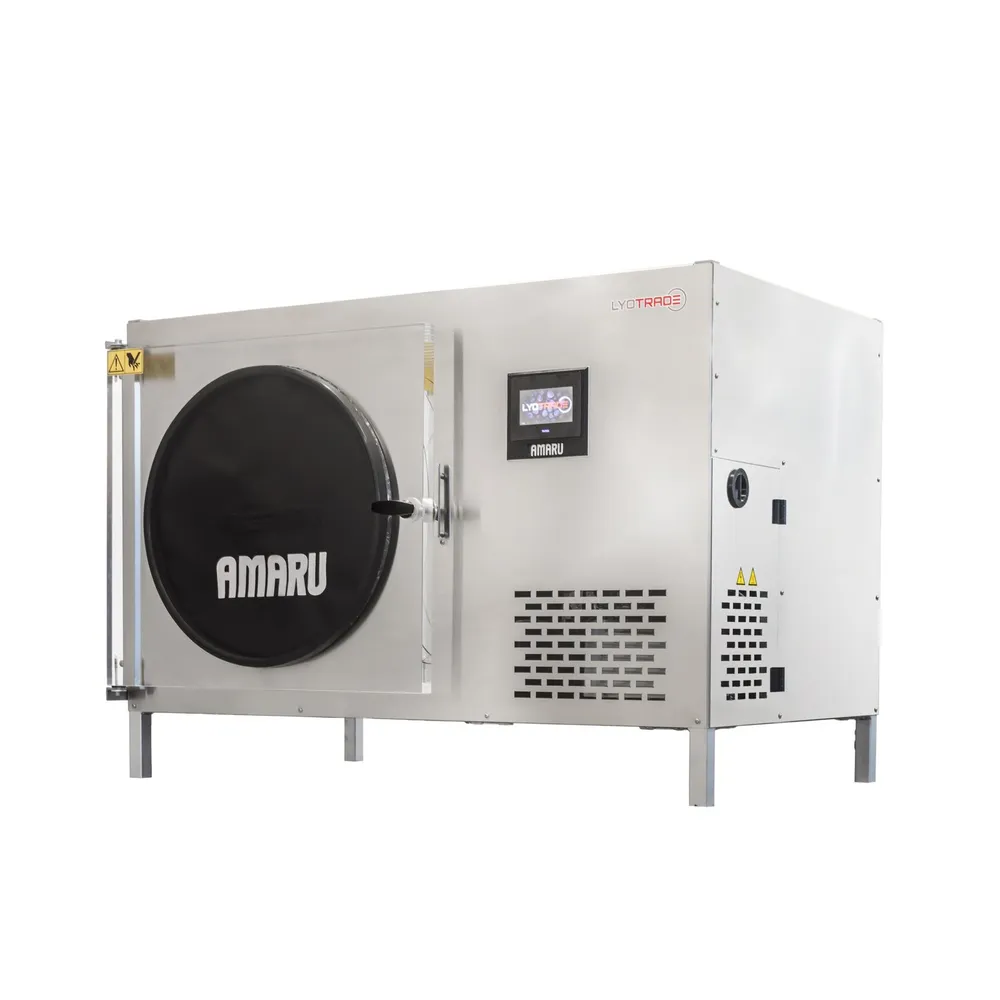

AMARU 5

Up to 10 kg per batch

Up to 10kg per batch capacity. Energy-efficient operation, rapid 30-minute defrosting, delivers reliable, high-quality results with minimal operational downtime.

Indicative list price
€16.900
EX-VAT · CONFIGURATION-DEPENDENT
Configure quote Talk to an engineer →
Available configurations
Ruby RedStainless Steel
AMARU 5
Capacity
Up to 10 kg
Shelf area
0.8 m²
Trays
5
Shelf temp
Automatic cycle (no shelf setpoint) °C
Condenser
-40 °C
Spec sheet

Engineering data.

Batch capacity (fresh load)
10 kg/batch
Ice condenser capacity
10 kg (total ice)
Total shelf area
0.8 m²
Number of shelves
5 count
Number of trays
5 count
Tray size
33 × 49 cm
Shelf temperature range
Automatic cycle (no shelf setpoint) °C
Min. condenser temperature
-40 °C
Vacuum pump type
Oil-sealed rotary vane (new, Pfeiffer)
Refrigeration type
Air-cooled
Refrigerant
—
Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options
Ruby Red (powder-coated)
Defrosting
Automatic (≈25 min)
Control system

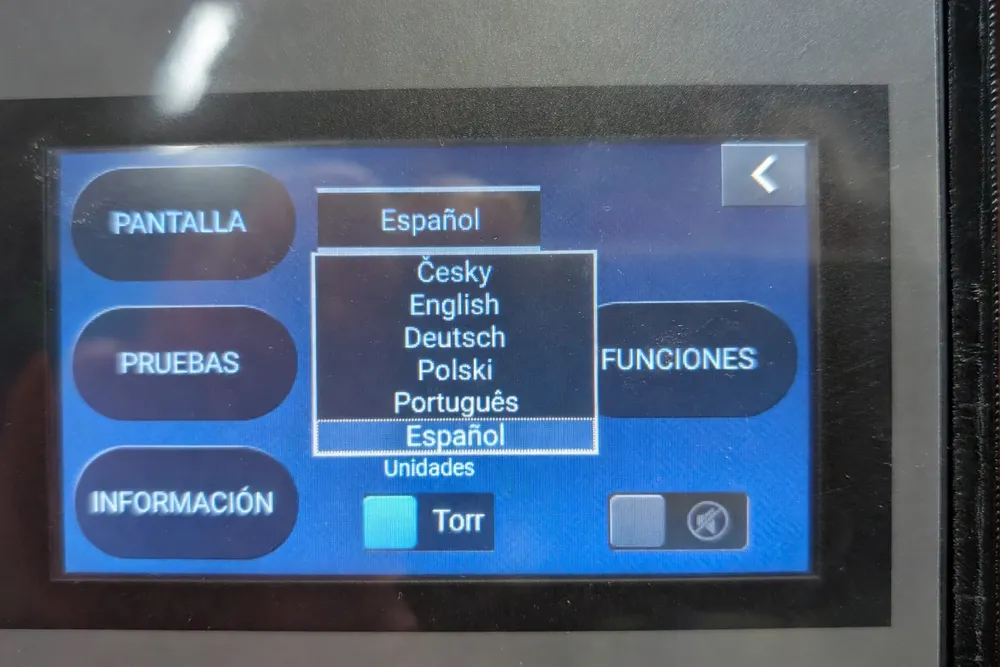

4.3" touchscreen
Data logging & recipes
None
Remote monitoring
No
External dimensions (W × D × H)
1220 × 795 × 840 mm
Net weight
approx. 175 kg
Power supply
230 V / 1~ / 50 Hz V / phase / Hz
Connected load
3 kW
Warranty
12 months (+ extension)
Energy consumption (avg)
1.13 kWh/h
