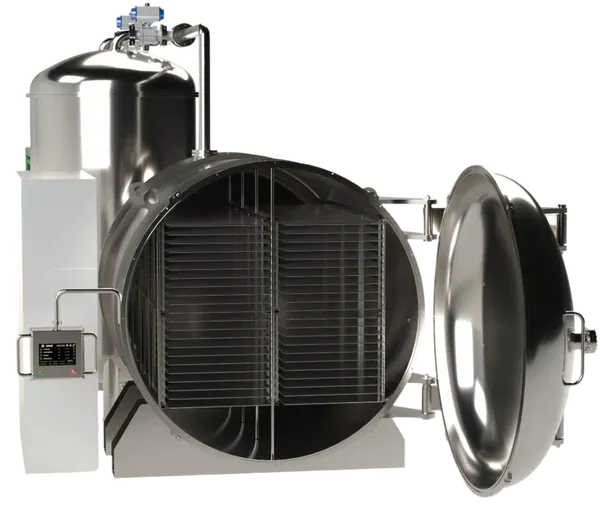

LEO-600 — Industrial freeze-dryer

LEO-600

Up to 600 kg per batch

Up to 600 kg per batch capacity, the LEO-600 Industrial Freeze Dryer is delivered as a fully customized project, with advanced technology and comprehensive service for large-scale operations.

Industrial · made to order

Price on request

Verified-email unlock · engineer-quoted

Spec sheet

Engineering data.

Batch capacity (fresh load)

600 kg/batch

Ice condenser capacity

900 kg (total ice)

Total shelf area

61.49 m²

Number of shelves

22 count

Number of trays

176 count

Tray size

GN 2/1, 2–4 cm

Shelf temperature range

-45 to +70 °C

Min. condenser temperature

-45 °C

Vacuum pump type

Oil-free (standard)

Refrigeration type

Air-cooled

Refrigerant

R-448A

Chamber material

AISI 304 stainless steel

Shelf material

Stainless steel

Body color options

Stainless steel

Defrosting

Automatic

Control system

LCD touchscreen + Wi-Fi

Data logging & recipes

Wi-Fi app monitoring

Remote monitoring

Yes

External dimensions (W × D × H)

2000 × 3000 × 2200 (+ MCU) mm

Net weight

7400 kg

Power supply

380 V / 3~ / 50 Hz V / phase / Hz

Connected load

95 kW

Warranty

24 months (extendable to 36)

Energy consumption (avg)

13 kWh/h

Next step

Get a tailored quote.

Tell us your product and target throughput. An engineer replies within 24 h — with pricing, lead time, and a sizing recommendation.

Unlock pricing Book a 30-min call
