LEOSMAK· LEO300B· INDUSTRIAL

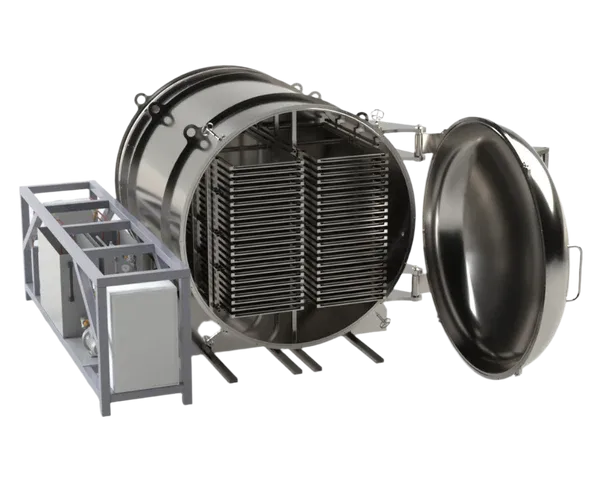

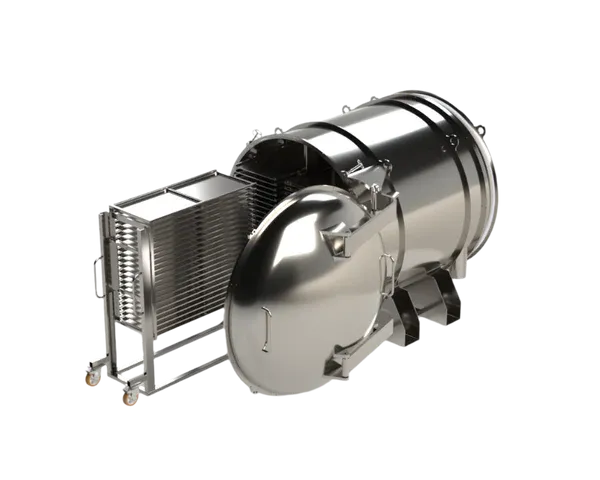

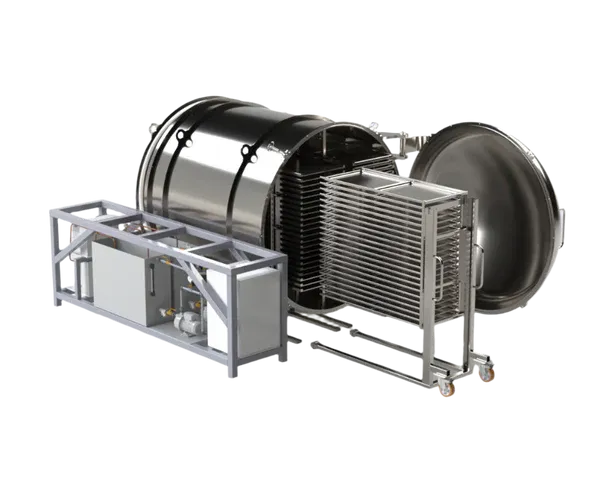

LEO-300

Up to 300 kg per batch

Up to 300 kg per batch capacity. The LEO-300 Industrial Freeze Dryer is delivered as a tailored project with full-service support, offering advanced technology and high-throughput performance.

Industrial · made to order
Price on request
Verified-email unlock · engineer-quoted
Request pricing Talk to an engineer →
LEO-300
Capacity
Up to 300 kg
Shelf area
32.48 m²
Trays
90
Shelf temp
-45 to +70 °C
Condenser
-45 °C
Spec sheet

Engineering data.

Batch capacity (fresh load)
300 kg/batch
Ice condenser capacity
450 kg (total ice)
Total shelf area
32.48 m²
Number of shelves
30 (2 × 15) count
Number of trays
90 count
Tray size
GN 2/1, 2–4 cm
Shelf temperature range
-45 to +70 °C
Min. condenser temperature
-45 °C
Vacuum pump type
Oil-free (standard)
Refrigeration type
Air-cooled
Refrigerant
R-448A
Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options
Stainless steel
Defrosting
Automatic
Control system
LCD touchscreen + Wi-Fi
Data logging & recipes
Wi-Fi app monitoring
Remote monitoring
Yes
External dimensions (W × D × H)
2000 × 2000 × 2200 (+ MCU) mm
Net weight
6500 kg
Power supply
380 V / 3~ / 50 Hz V / phase / Hz
Connected load
45 kW
Warranty
24 months (extendable to 36)
Energy consumption (avg)
6.5 kWh/h
Next step

Get a tailored quote.

Tell us your product and target throughput. An engineer replies within 24 h — with pricing, lead time, and a sizing recommendation.

Unlock pricing Book a 30-min call
