Home/ Industrial/ LEO-130-D
LEOSMAK· LEO130B· INDUSTRIAL

LEO-130-D

Up to 130 kg per batch

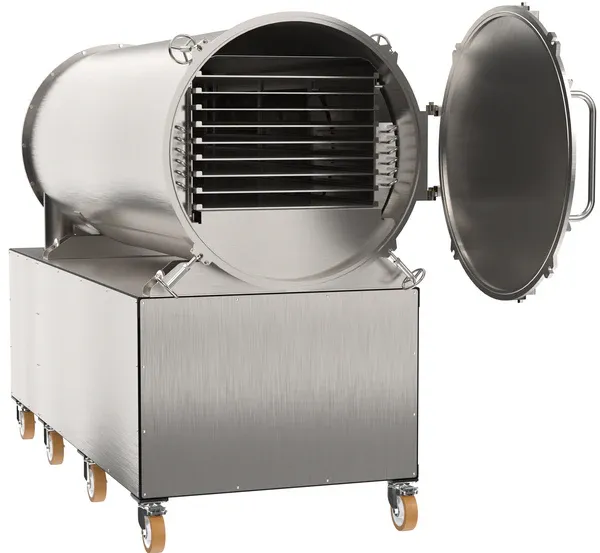

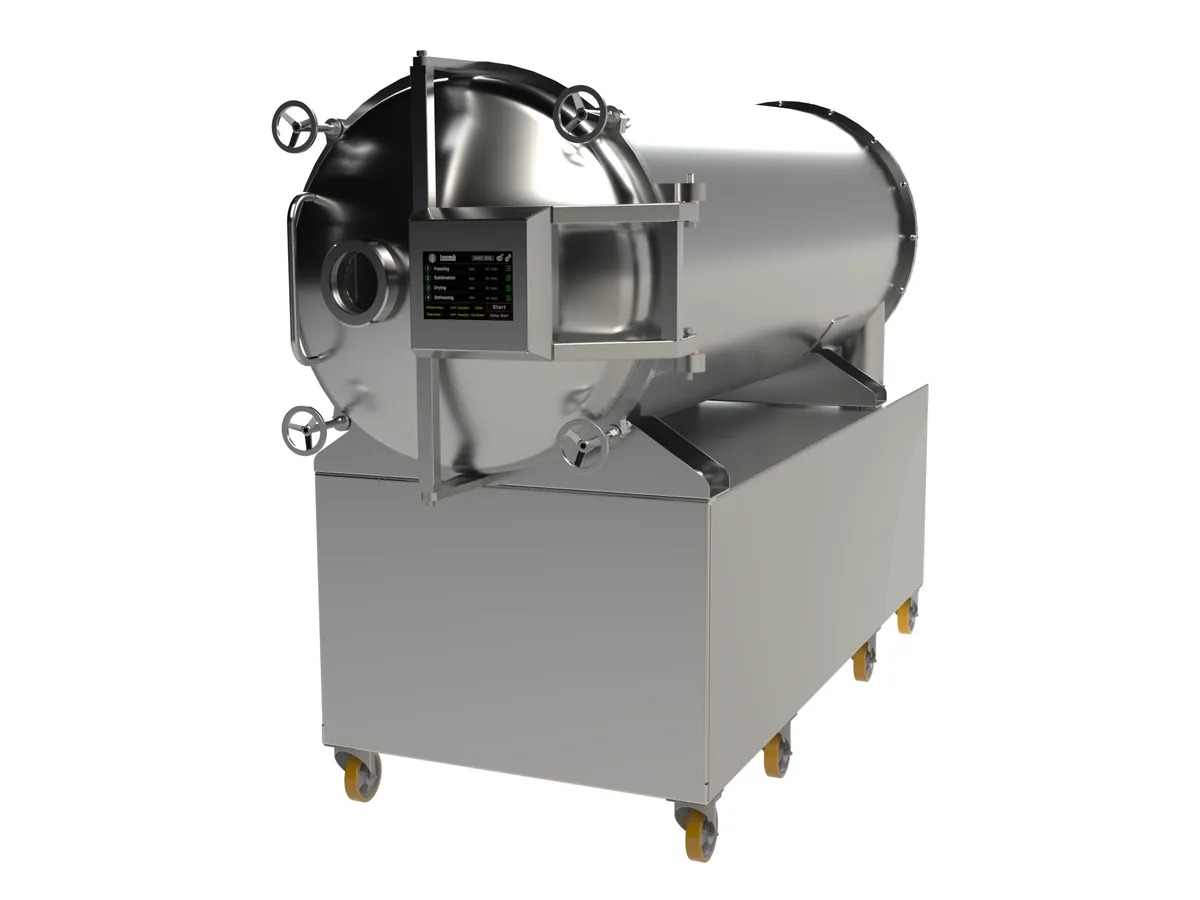

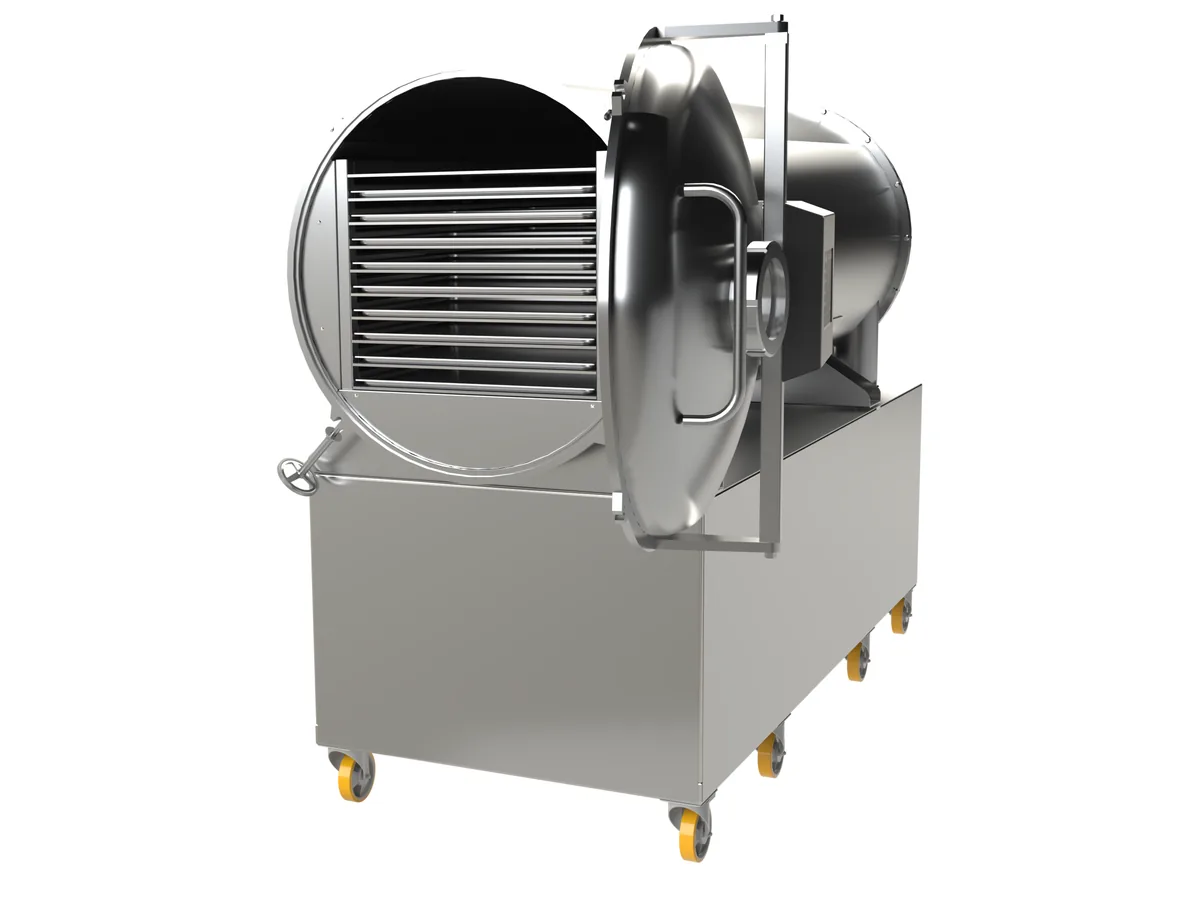

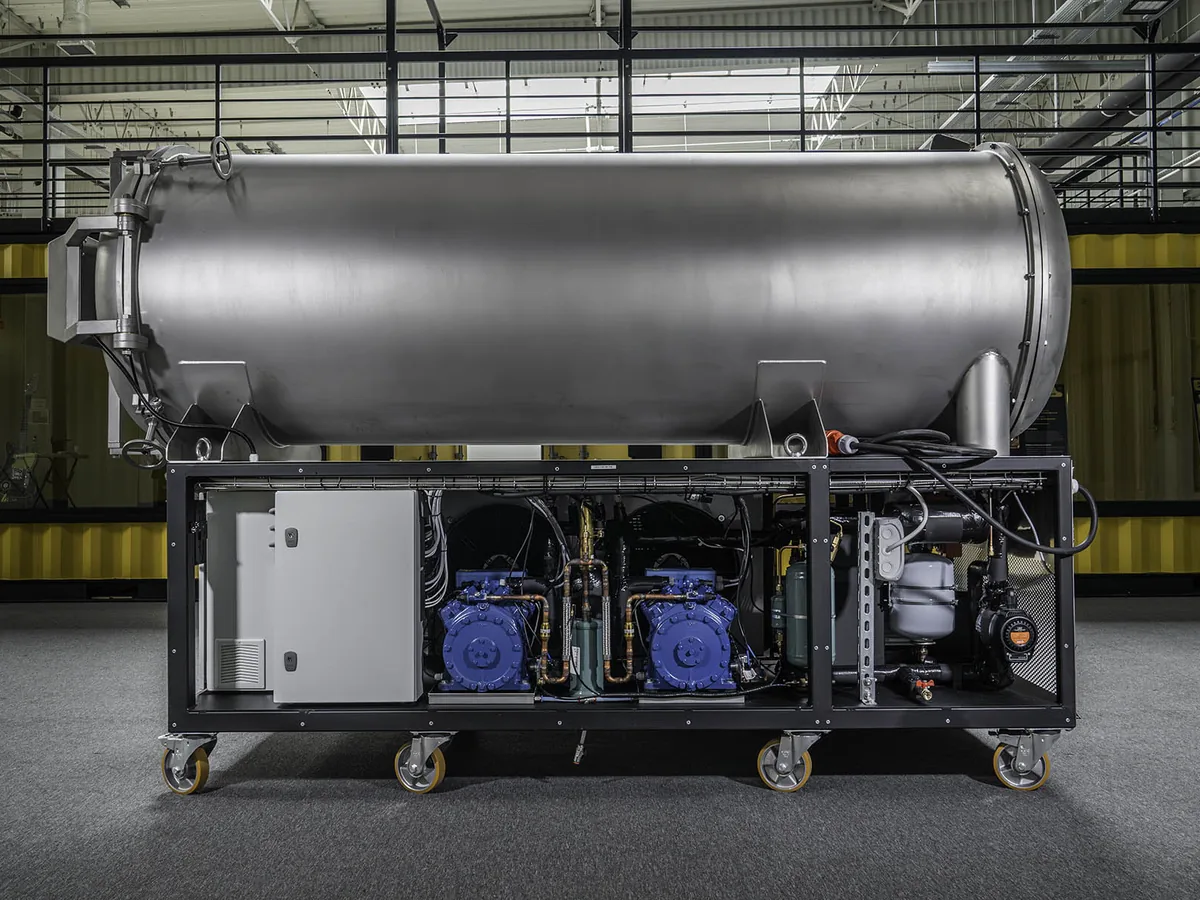

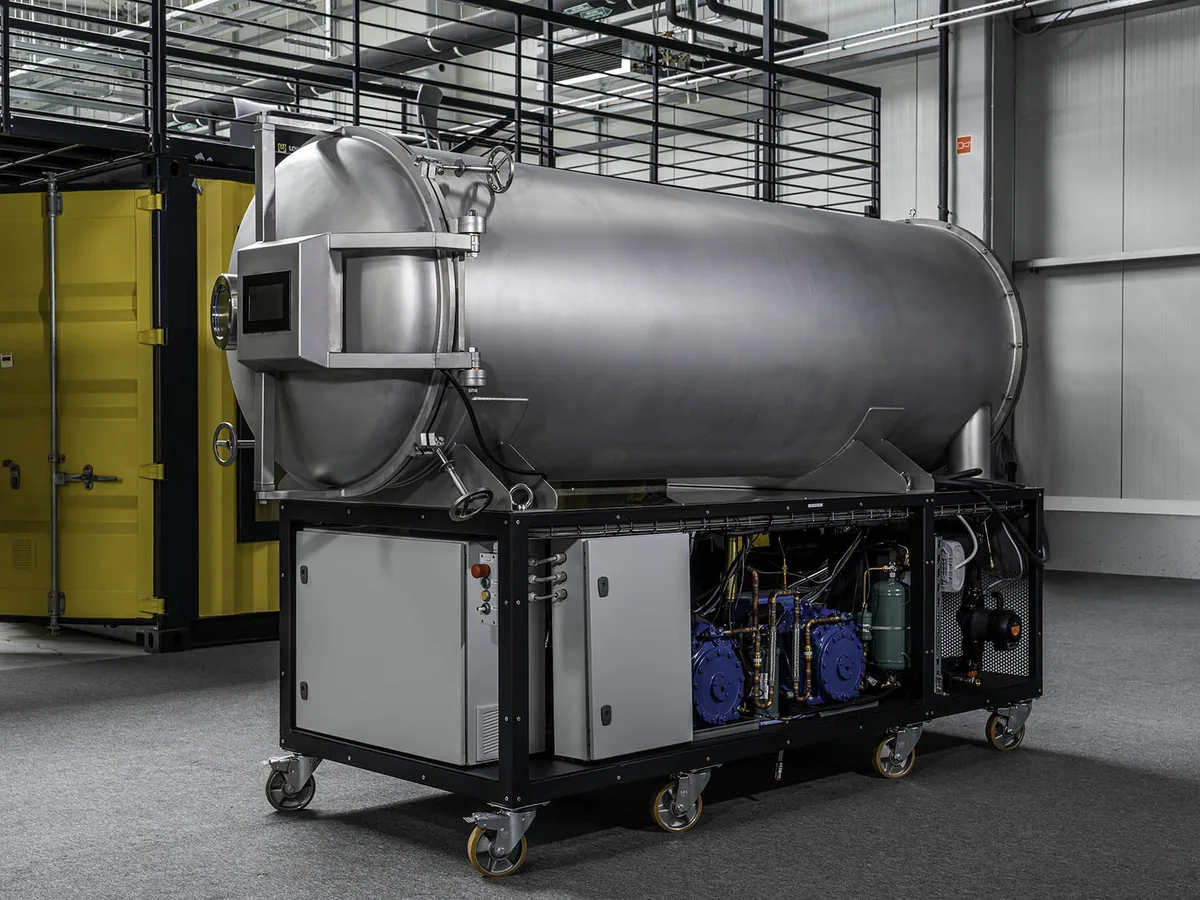

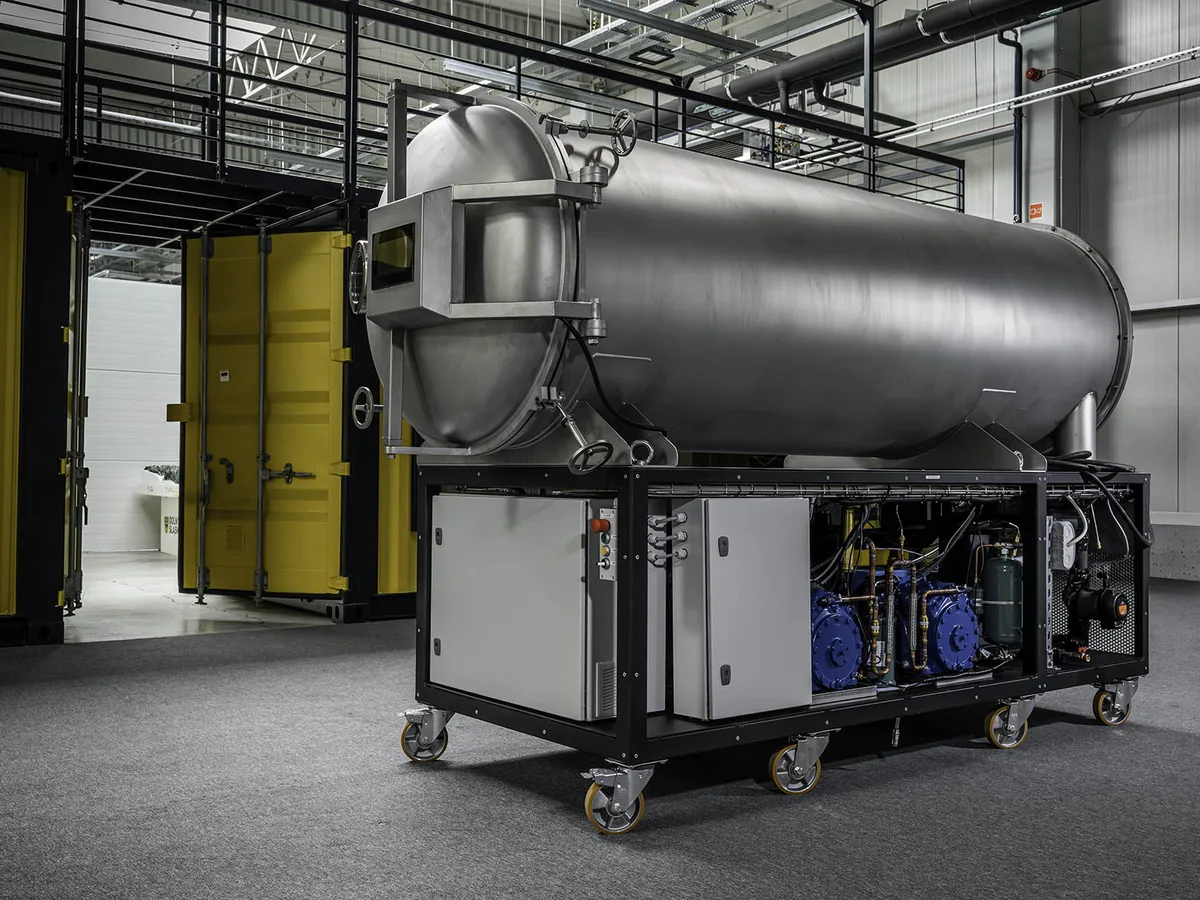

Up to 130 kg per batch capacity. The LEO-130 Industrial Freeze Dryer is built for high-volume production with advanced technology, remote monitoring, and robust, hygienic design.

Industrial · made to order
Price on request
Verified-email unlock · engineer-quoted
Request pricing Talk to an engineer →
LEO-130-D
Capacity
Up to 130 kg
Shelf area
12.58 m²
Trays
36
Shelf temp
-45 to +70 °C
Condenser
-45 °C
Spec sheet

Engineering data.

Batch capacity (fresh load)
130 kg/batch
Ice condenser capacity
220 kg (total ice)
Total shelf area
12.58 m²
Number of shelves
9 count
Number of trays
36 count
Tray size
GN 2/1, 2–4 cm
Shelf temperature range
-45 to +70 °C
Min. condenser temperature
-45 °C
Vacuum pump type
Oil-free (standard)
Refrigeration type
Air-cooled
Refrigerant
R-448A
Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options
Stainless steel
Defrosting
Automatic
Control system
LCD touchscreen + Wi-Fi
Data logging & recipes
Wi-Fi app monitoring
Remote monitoring
Yes
External dimensions (W × D × H)
1100 × 3500 × 2200 mm
Net weight
2000 kg
Power supply
380 V / 3~ / 50 Hz V / phase / Hz
Connected load
15 kW
Warranty
24 months (extendable to 36)
Energy consumption (avg)
4 kWh/h
Next step

Get a tailored quote.

Tell us your product and target throughput. An engineer replies within 24 h — with pricing, lead time, and a sizing recommendation.

Unlock pricing Book a 30-min call
