Home/ Commercial/ AMARU 5 Double
LYOTRADE· AMARU5D· COMMERCIAL

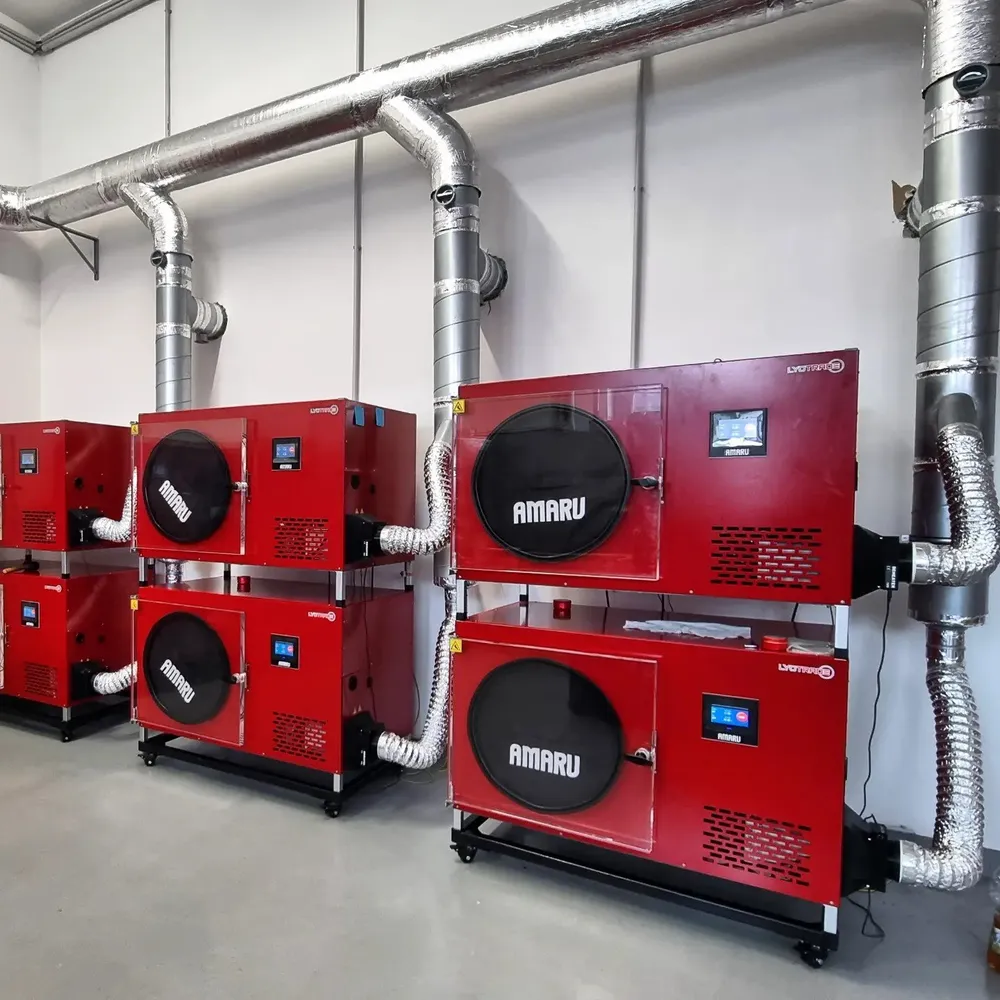

AMARU 5 Double

Up to 20 kg per batch

Up to 20kg batch capacity in this dual-chamber freeze-dryer. With energy-efficient operation, customizable recipe storage, and a 1-year warranty, it’s the ideal solution for growing food freeze-drying business.

Indicative list price
€33.000
EX-VAT · CONFIGURATION-DEPENDENT
Available configurations
Ruby RedStainless Steel
Capacity
Up to 20 kg
Shelf area
1.6
Trays
10
Shelf temp
Automatic cycle (no shelf setpoint) °C
Condenser
-40 °C
Spec sheet

Engineering data.

Batch capacity (fresh load)
20 kg/batch
Ice condenser capacity
20 kg (total ice)
Total shelf area
1.6 m²
Number of shelves
10 count
Number of trays
10 count
Tray size
33 × 49 cm
Shelf temperature range
Automatic cycle (no shelf setpoint) °C
Min. condenser temperature
-40 °C
Vacuum pump type
Oil-sealed rotary vane (new, Pfeiffer)
Refrigeration type
Air-cooled
Refrigerant
Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options
Ruby Red (powder-coated)
Defrosting
Automatic (≈25 min)
Control system

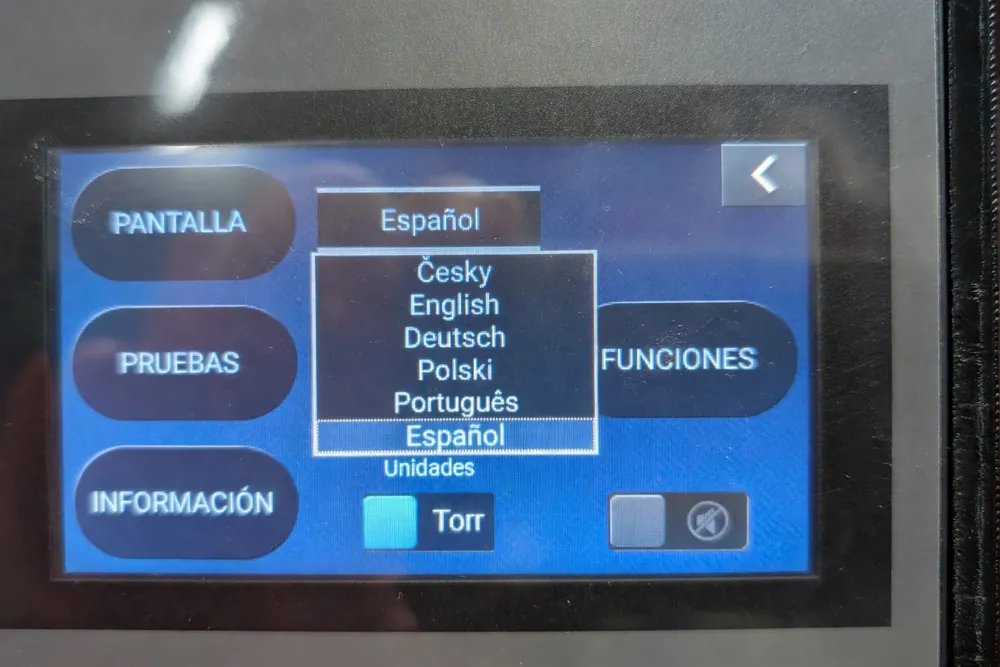

4.3" touchscreen
Data logging & recipes
None
Remote monitoring
No
External dimensions (W × D × H)
1220 × 795 × 2200 mm
Net weight
approx. 355 kg
Power supply
2×230 V / 1~ / 50 Hz V / phase / Hz
Connected load
6 kW
Warranty
12 months (+ extension)
Energy consumption (avg)
2.25 kWh/h
Next step

Get a tailored quote.

Tell us your product and target throughput. An engineer replies within 24 h — with pricing, lead time, and a sizing recommendation.
